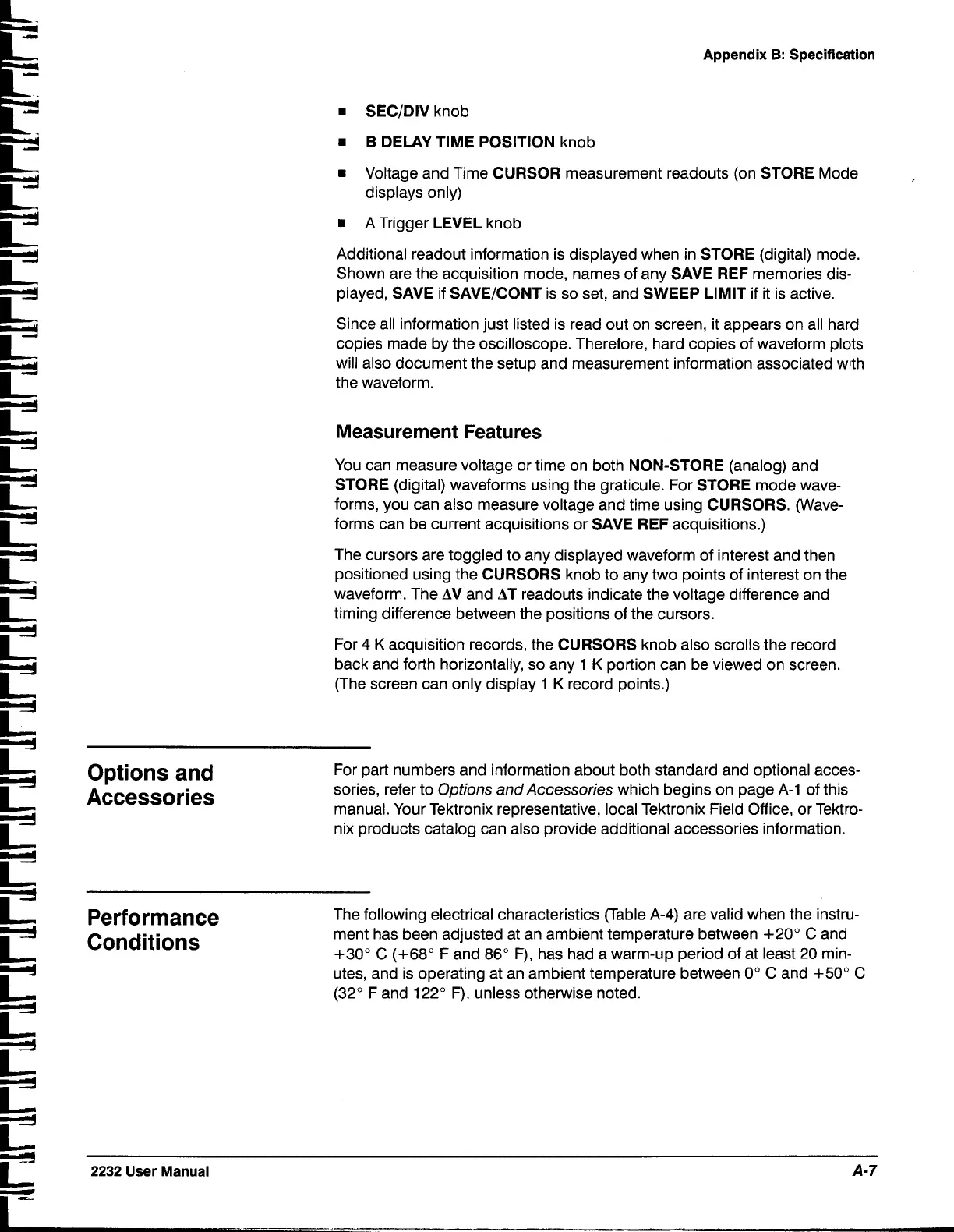

Appendix B: Specification
SECIDIV knob
1
B DELAY TIME POSITION knob
Voltage and Time CURSOR measurement readouts (on STORE Mode
displays only)
A Trigger LEVEL knob
Additional readout information is displayed when in
STORE (digital) mode.
Shown are the acquisition mode, names of any
SAVE REF memories dis-
played,
SAVE if SAVEICONT is so set, and SWEEP LIMIT if it is active.
Since all information just listed is read out on screen, it appears on all hard
copies made by the oscilloscope. Therefore, hard copies of waveform plots
will also document the setup and measurement information associated with
the waveform.
Measurement Features
You can measure voltage or time on both NON-STORE (analog) and
STORE (digital) waveforms using the graticule. For STORE mode wave-
forms, you can also measure voltage and time using
CURSORS. (Wave-
forms can be current acquisitions or
SAVE REF acquisitions.)
The cursors are toggled to any displayed waveform of interest and then
positioned using the
CURSORS knob to any two points of interest on the
waveform. The
AV and AT readouts indicate the voltage difference and
timing difference between the positions of the cursors.
For 4
K acquisition records, the CURSORS knob also scrolls the record
back and forth horizontally, so any
1 K portion can be viewed on screen.
(The screen can only display 1
K record points.)
Options and
For part numbers and information about both standard and optional acces-
Accessories
sories, refer to Options and Accessories which begins on page A-1 of this
manual. Your Tektronix representative, local Tektronix Field Office, or
Tektro-
nix products catalog can also provide additional accessories information.
Performance
Conditions
The following electrical characteristics (Table A-4) are valid when the instru-
ment has been adjusted at an ambient temperature between
+20° C and
+30° C (+68" F and 86" F), has had a warm-up period of at least 20 min-
utes, and is operating at an ambient temperature between
0" C and +50° C
(32" F and 122" F), unless otherwise noted.
2232 User Manual A-7
