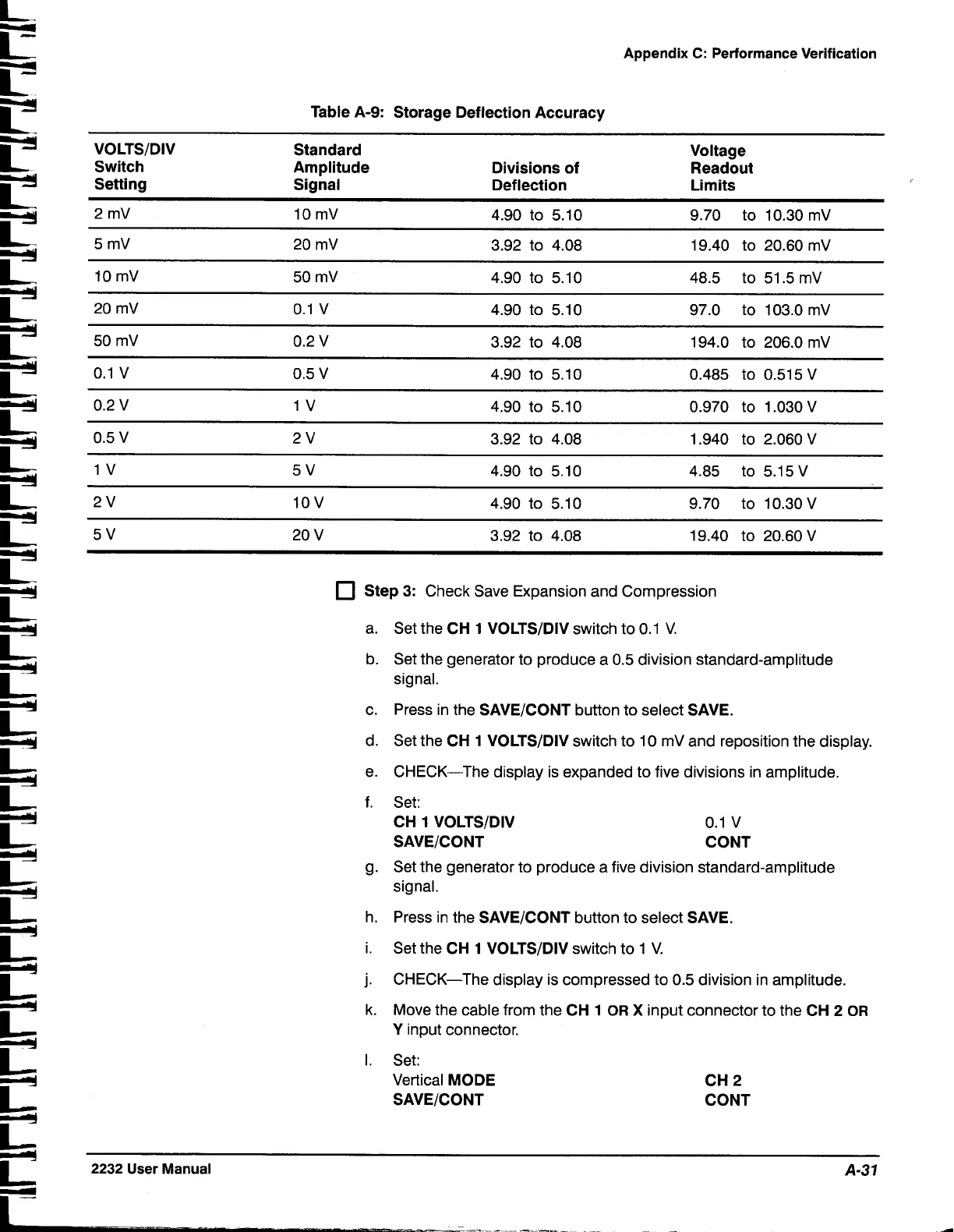

Tektronix 2232 User Manual

Appendix C: Performance Verification
Table A-9: Storage Deflection Accuracy
VOLTSIDIV
Standard
Switch
Amplitude
Setting
Signal
Divisions of
Deflection
Voltage
Readout
Limits
Step 3: Check Save Expansion and Compression
a.
Set the CH
1 VOLTSIDIV switch to 0.1 V.
b. Set the generator to produce a 0.5 division standard-amplitude
signal.
c.
Press in the SAVEICONT button to select SAVE.
d. Set the CH 1 VOLTSIDIV switch to 10 mV and reposition the display.
e. CHECK-The display is expanded to five divisions in amplitude.
f. Set:
CH
1 VOLTSIDIV
SAVEICONT
0.1 v
CONT
g. Set the generator to produce a five division standard-amplitude
signal.
h.
Press in the SAVEICONT button to select SAVE.
i.
Set the CH
1 VOLTSIDIV switch to 1 V.
j.
CHECK-The display is compressed to 0.5 division in amplitude.
k. Move the cable from the CH 1 OR X input connector to the CH 2 OR
Y input connector.
I. Set:
Vertical MODE
SAVEICONT
CH
2
CONT
2232 User Manual A-31
