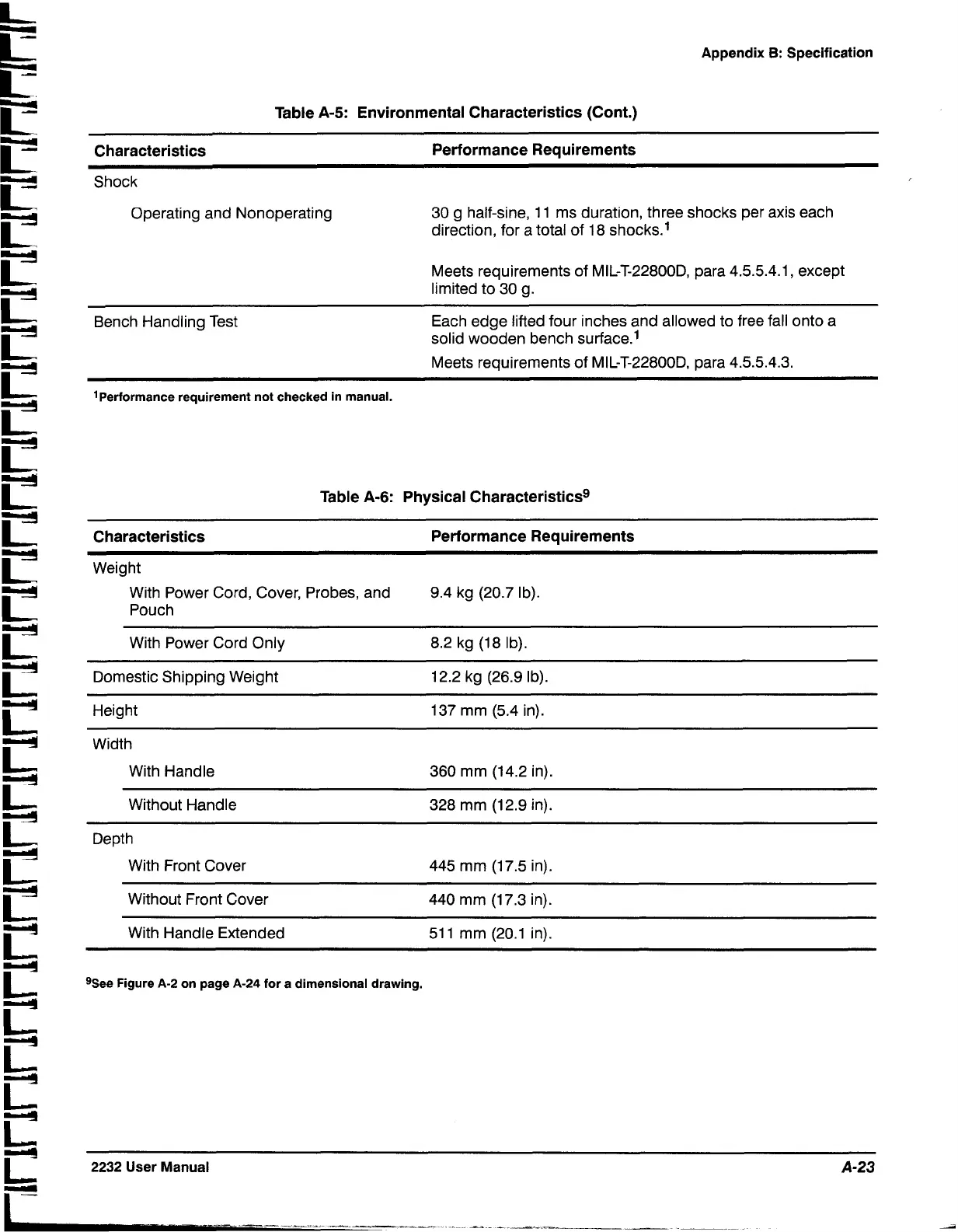

Appendix
B:
Specification
Table
A-5:
Environmental Characteristics (Cont.)
Characteristics Performance Requirements
Shock
Operating and Nonoperating
30 g half-sine, 11 ms duration, three shocks per axis each
direction, for a total of 18 shocks.'
Meets requirements of
MIL-T-22800D, para 4.5.5.4.1, except
limited to 30 g.
-
Bench Handling Test
Each edge lifted four inches and allowed to free fall onto a
solid wooden bench surface.'
Meets requirements of
MIL-T-22800D, para 4.5.5.4.3.
'Performance requirement not checked in manual.
Table
A-6:
Physical Characteristicsg
Characteristics Performance Requirements
--
Weight
With Power Cord, Cover, Probes, and
9.4 kg (20.7 Ib).
Pouch
With Power Cord Only 8.2 kg (18 Ib).
Domestic Shipping Weight 12.2 kg (26.9 Ib).
Height 137 mm (5.4 in).
Width
With Handle 360 mm (14.2 in).
Without Handle 328 mm (12.9 in).
L?
Depth
?
With Front Cover 445 mm (17.5 in).
Without Front Cover 440 mm (17.3 in).
iz
With Handle Extended
51 1 mm (20.1
in).
i2
gSee Figure
A-2
on page
A-24
for
a
dimensional drawing.
iz
r
c
z
2232
User
Manual
A-23
---
--
---
--------
--
----
-----
