Tektronix 2232 User Manual

Front Panel
CRT Display
The CRT graticule area (Figure 2-5) is divided into eight vertical divisions for
amplitude
(volts/division) measurements and ten horizontal divisions for time
(seconds/division) measurements. The settings of the volts/division and
seconds/division controls determine the scale of the graticule.
\
\
\
\
\
\
Percent Markings \
are for rise time \
measurements. \
I
\.
SECIDIV -

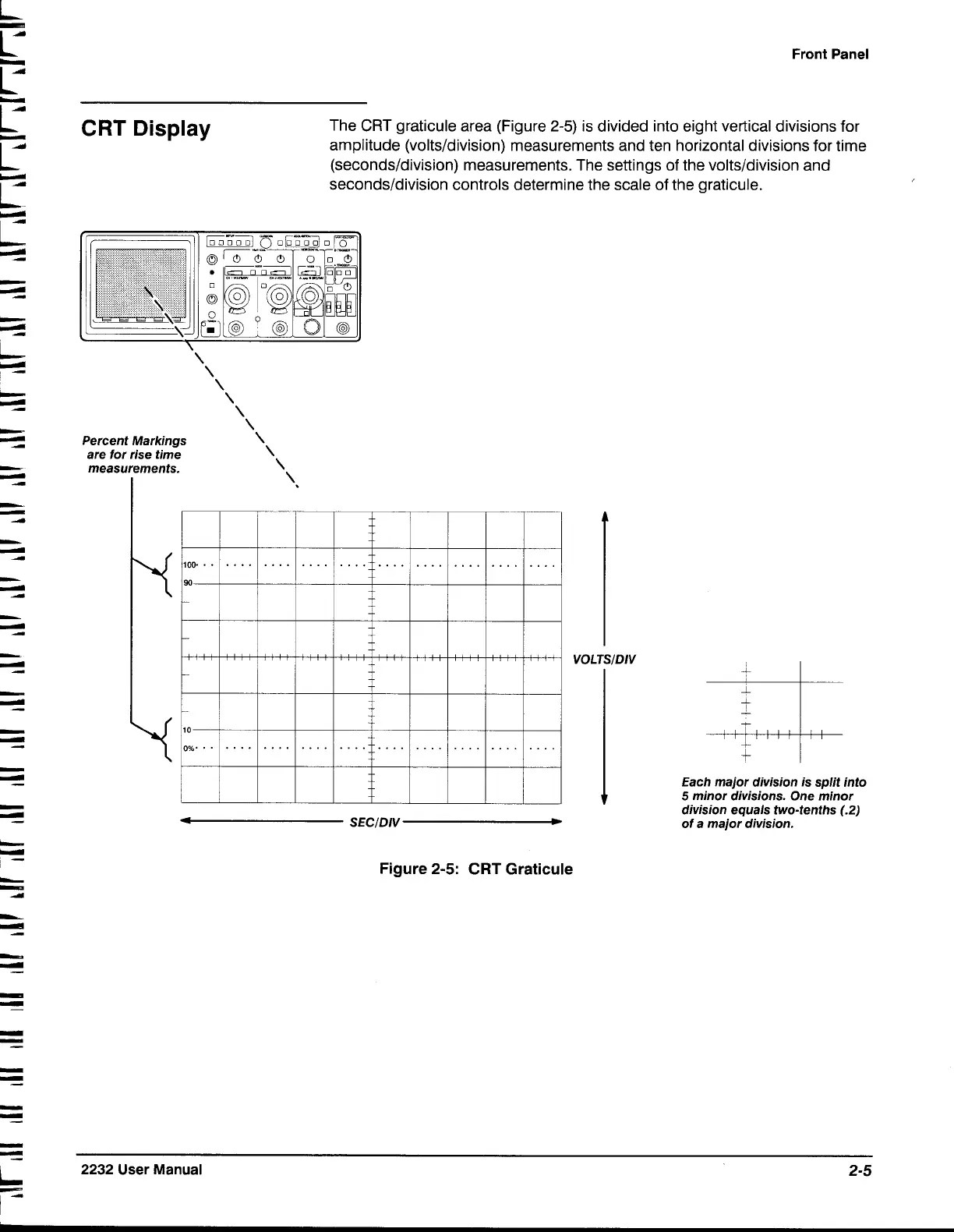

Figure 2-5: CRT Graticule
VOLTSIDIV
Each major division is split into
5 minor divisions. One minor
division equals two-tenths
(.2)
of a major division.
2232 User Manual 2-5
