Front Panel
Display Mode
There are two separate display modes: the analog NON-STORE mode
(Figure 2-6) and the digital
STORE mode (Figure 2-7). The STOREINON-
STORE button selects the display mode.
.
..
'.
.
..
..
.. . STORE 1
Trigger Level
I
6 Delay
A 6
SeclDiv

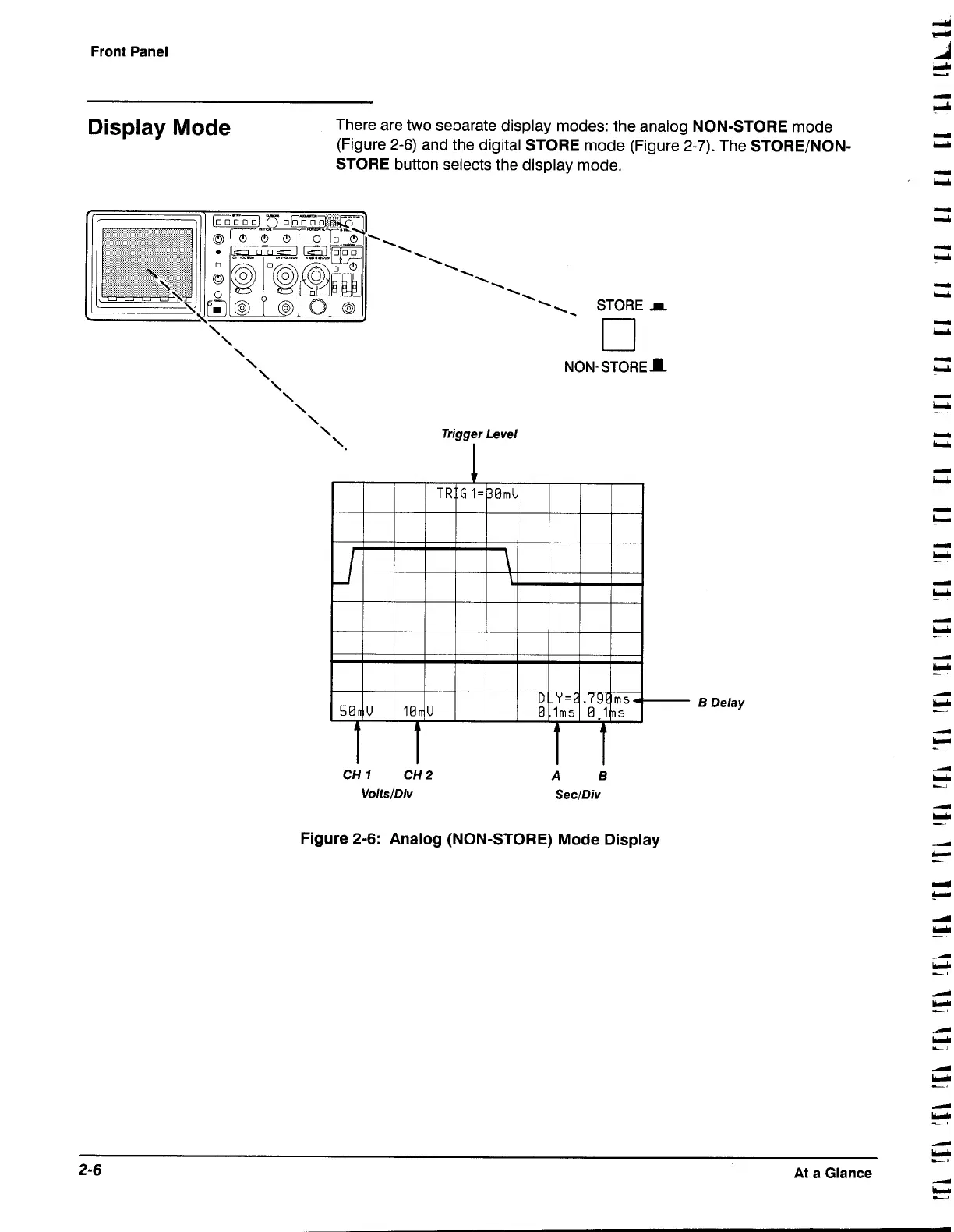

Figure 2-6: Analog (NON-STORE) Mode Display
