Acquisition Controls
The Acquisition Controls are shown in Figure 2-15.
i=
ACQUISITION
1 4

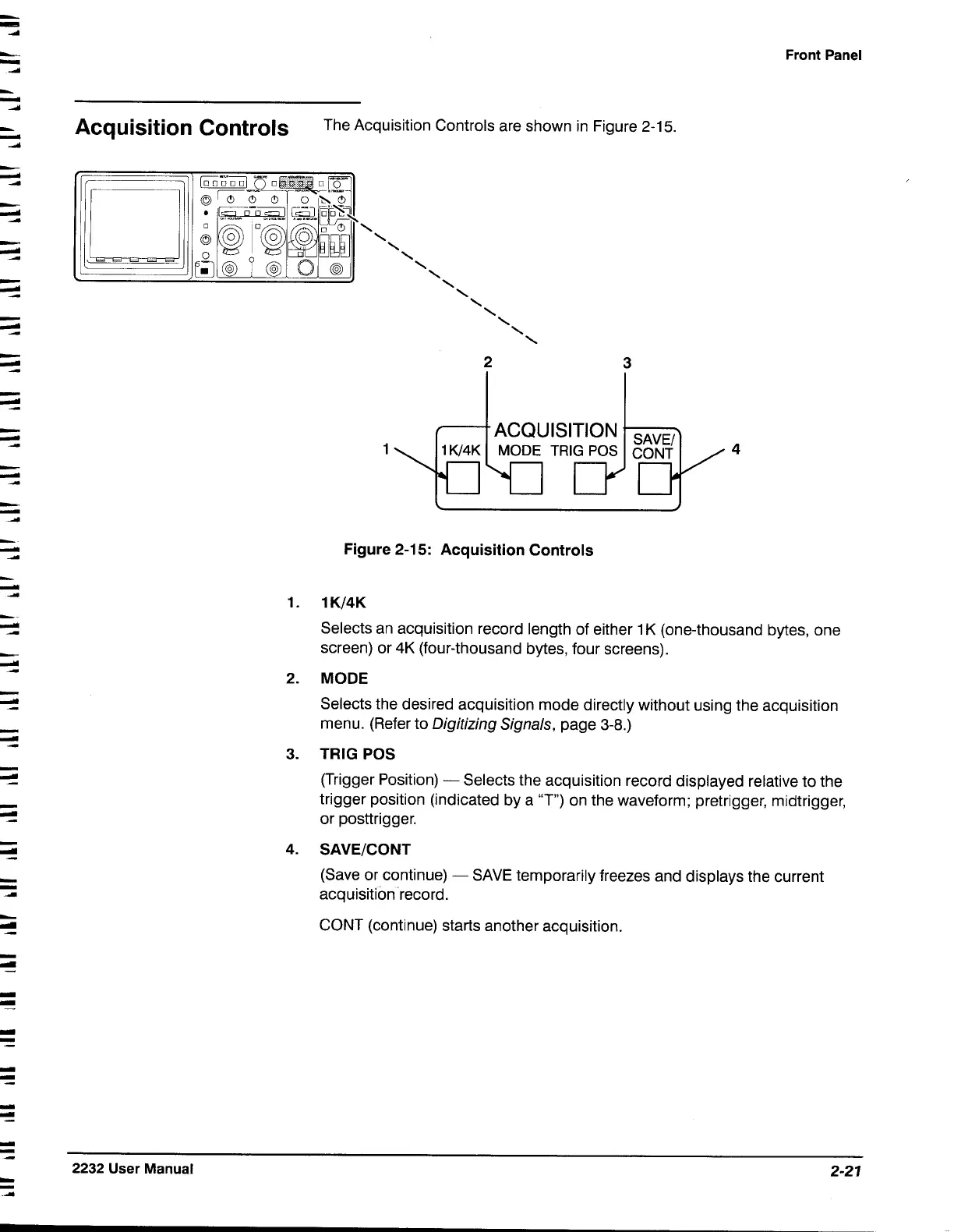

Figure 2-15: Acquisition Controls
Front Panel
Selects an acquisition record length of either 1 K (one-thousand bytes, one
screen) or
4K (four-thousand bytes, four screens).
2. MODE
Selects the desired acquisition mode directly without using the acquisition
menu. (Refer to
Digitizing Signals, page 3-8.)
3. TRIG POS
(Trigger Position) - Selects the acquisition record displayed relative to the
trigger position (indicated by a
"T") on the waveform; pretrigger, midtrigger,
or posttrigger.
4. SAVEICONT
(Save or continue) - SAVE temporarily freezes and displays the current
acquisition record.
CONT (continue) starts another acquisition.
2232 User Manual 2-21
