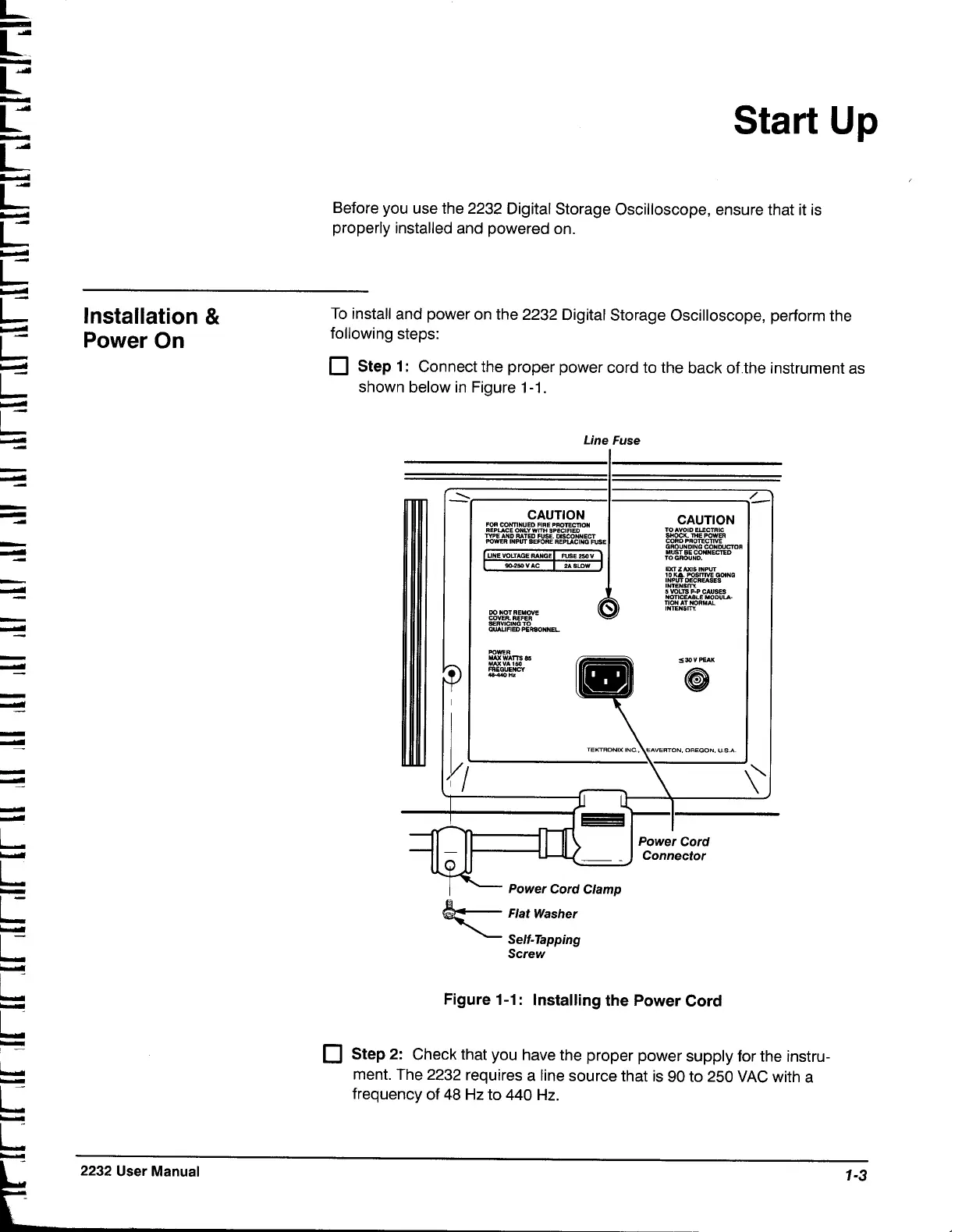

Start Up
Before you use the 2232 Digital Storage Oscilloscope, ensure that it is
properly installed and powered on.
installation &
To install and power on the 2232 Digital Storage Oscilloscope, perform the
Power On
following steps:
Step 1: Connect the proper power cord to the back of.the instrument as
shown below in Figure
1-1.
Line Fuse
CAUTION
FWI CONTINUED FIRE PROTECTlOU
REPUCE ONLY Wm( SPECIFIED
NPE AND
MTED FUSE. MSCONNECT
POWER
INPUTBEFORE REPUCINQ NSE
LINE VOLTAGE RANGE1 FUSE 1Y)V
S2Y)VAC I 2A8LOW
W NOT REMOVE
COVER. REFER
SERVlClNQ TO
OWFIB) PERSONNEL
Q
CAUTION
mzms INPUT
10 INPUT I11. =CREASES POSITIVE QMNQ
INTENSIT*.
5 NOTICEABLE VOLTS P-P CAUSES UODUU-
TlON AT NORMAL
INTENSITY
Power Cord
Connector
/ '- Power Cord Clamp
Flat Washer
- Self-Tapping
Screw
Figure 1-1 : Installing the Power Cord
Step 2: Check that you have the proper power supply for the instru-
ment. The 2232 requires a line source that is 90 to 250 VAC with a
frequency of 48
Hz to 440 Hz.
2232 User Manual
1-3
