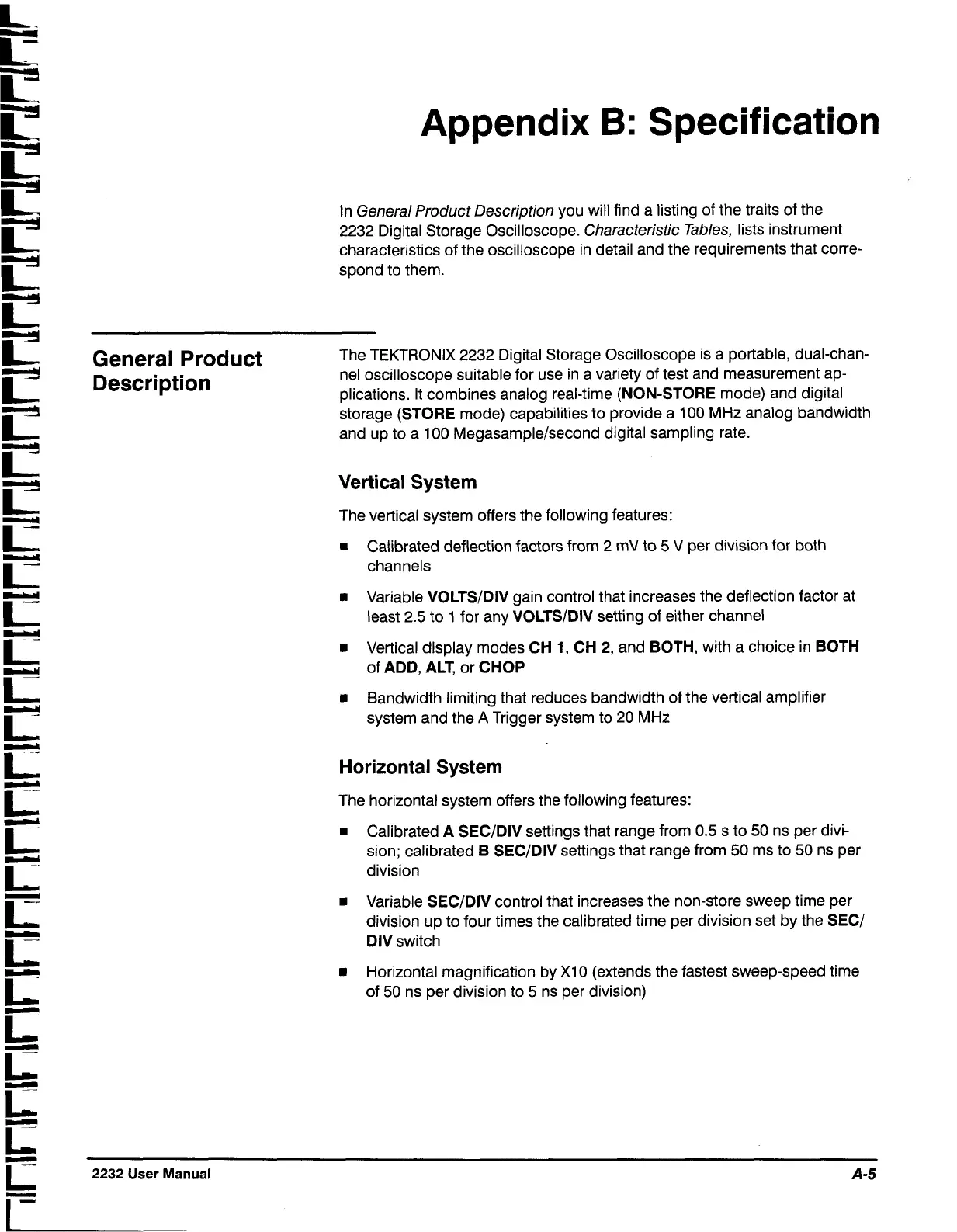

Appendix
B:
Specification
r
BL
In General Product Description you will find a listing of the traits of the
iz
2232 Digital Storage Oscilloscope. Characteristic Tables, lists instrument
characteristics of the oscilloscope in detail and the requirements that
corre-
r
spond to them.
iz
General Product
The TEKTRONIX 2232 Digital Storage Oscilloscope is a portable, dual-chan-
Description
nel oscilloscope suitable for use in a variety of test and measurement ap-
plications. It combines analog real-time
(NON-STORE
mode) and digital
r
storage
(STORE
mode) capabilities to provide a 100 MHz analog bandwidth
and up to a 100
Megasample/second digital sampling rate.
c
-
C
Vertical System
The vertical system offers the following features:
r
8
Calibrated deflection factors from 2 mV to 5
V
per division for both
r
channels
i2
8
Variable
VOLTSIDIV
gain control that increases the deflection factor at
least 2.5 to
1
for any
VOLTSIDIV
setting of either channel
rz
8
Vertical display modes
CH
1,
CH
2,
and
BOTH,
with a choice in
BOTH
?
of
ADD, ALT,
or
CHOP
8
Bandwidth limiting that reduces bandwidth of the vertical amplifier
system and the
A
Trigger system to 20
MHz
Horizontal System
The horizontal system offers the following features:
8
Calibrated
A SECIDIV
settings that range from 0.5 s to 50 ns per divi-
sion; calibrated
B
SECIDIV
settings that range from 50 ms to 50 ns per
division
8
Variable
SECIDIV
control that increases the nonstore sweep time per
division up to four times the calibrated time per division set by the
SECI
DIV
switch
8
Horizontal magnification by
XI
0 (extends the fastest sweep-speed time
of 50 ns per division to 5 ns per division)
L
-
C
2232
User
Manual
A-5
