Setup
Menus
Display
Menu

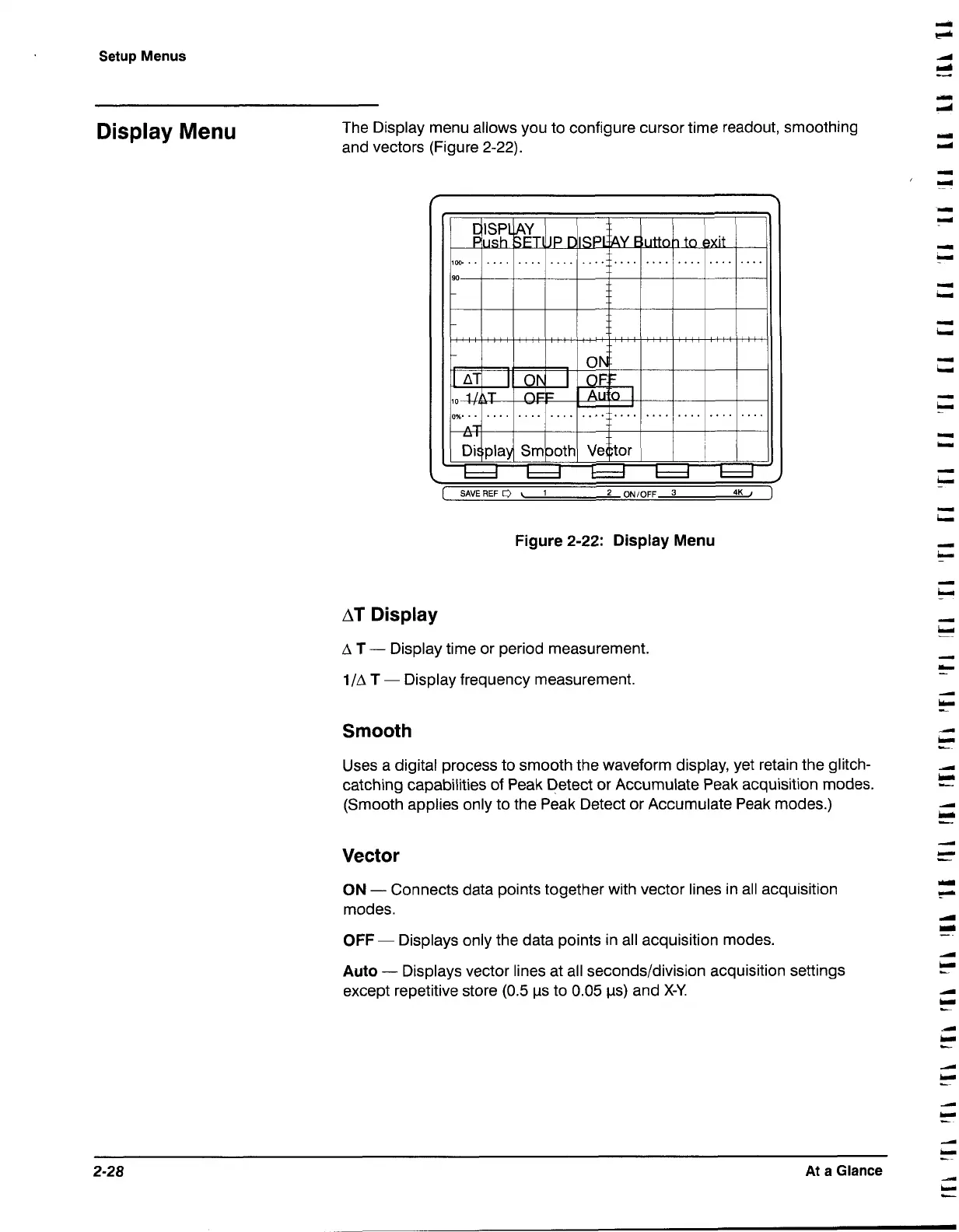

The Display menu allows you to configure cursor time readout, smoothing
and vectors (Figure
2-22).
(
SAVEREF
0
\
1
2
ONIOFF
3
4K
Figure
2-22:
Display
Menu
AT
Display
A
T
-
Display time or period measurement.
llA
T
-
Display frequency measurement.
Smooth
Uses a digital process to smooth the waveform display, yet retain the glitch-
catching capabilities of Peak Detect or Accumulate Peak acquisition modes.
(Smooth applies only to the Peak Detect or Accumulate Peak modes.)
Vector
ON
-
Connects data points together with vector lines in all acquisition
modes.
OFF
-
Displays only the data points in all acquisition modes.
Auto
-
Displays vector lines at all seconds/division acquisition settings
except repetitive store (0.5
ps to 0.05 ys) and
X-Y.
-
LI
-
2-28
At
a Glance
