Tektronix 2232 User Manual

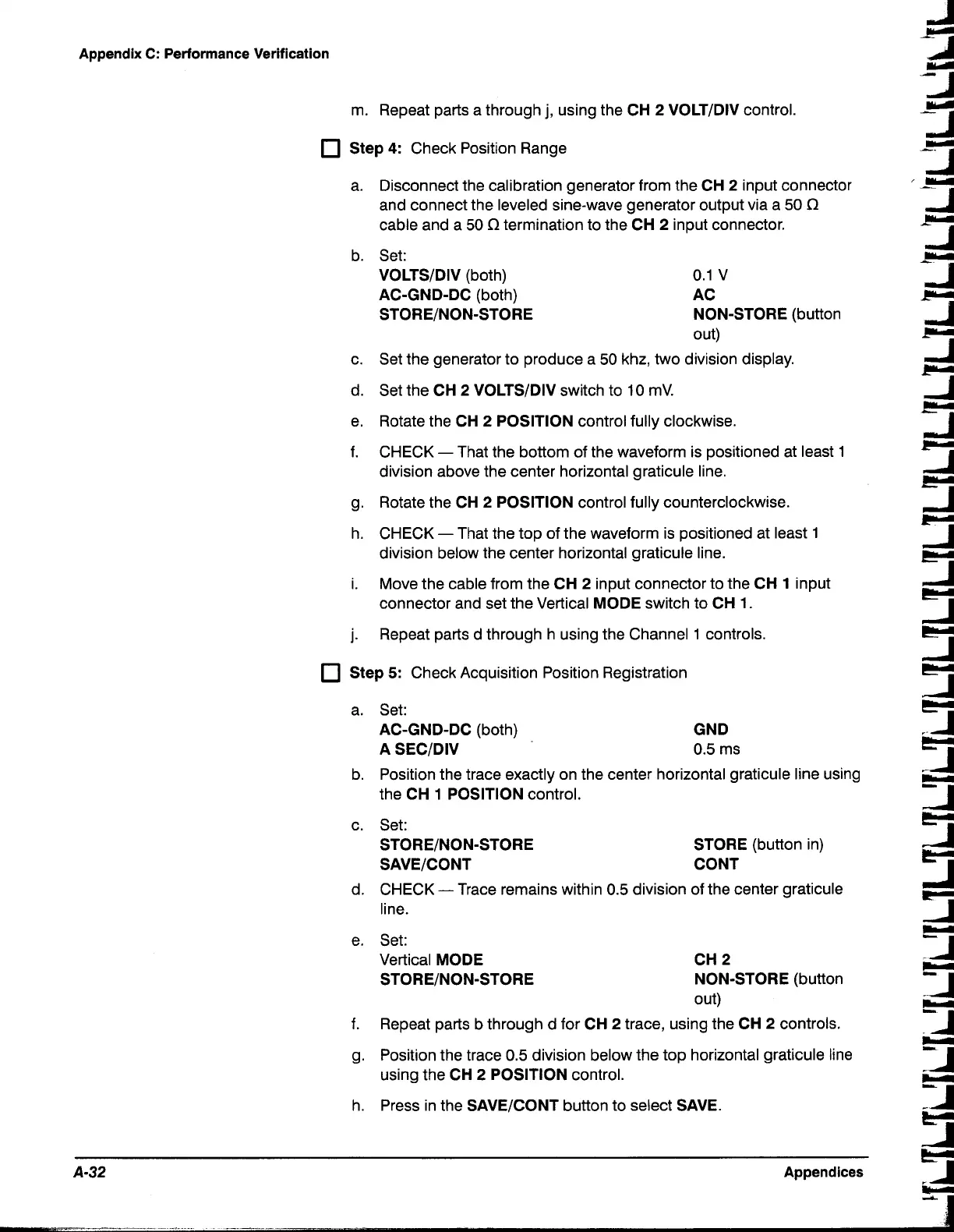

Appendix C: Performance Verification
m. Repeat parts a through j, using the CH 2 VOLTIDIV control.
Step 4: Check Position Range
a. Disconnect the calibration generator from the
CH 2 input connector
and connect the leveled sine-wave generator output via a 50
Cl
cable and a 50 Cl termination to the CH 2 input connector.
b. Set:
VOLTSIDIV (both) 0.1 V
AC-GND-DC (both) AC
STOREINON-STORE NON-STORE
(button
out)
c. Set the generator to produce a 50 khz, two division display.
d. Set the
CH 2 VOLTSIDIV switch to 10 mV.
e. Rotate the CH 2 POSITION control fully clockwise.
f.
CHECK
- That the bottom of the waveform is positioned at least 1
division above the center horizontal graticule line.
g. Rotate the
CH 2 POSITION control fully counterclockwise.
h. CHECK
- That the top of the waveform is positioned at least 1
division below the center horizontal graticule line.
i. Move the cable from the
CH 2 input connector to the CH 1 input
connector and set the Vertical
MODE switch to CH 1.
j.
Repeat parts d through h using the Channel 1 controls.
Step 5: Check Acquisition Position Registration
a. Set:
AC-GND-DC (both)
A SECIDIV
GND
0.5 ms
b. Position the trace exactly on the center horizontal graticule line using
the
CH 1 POSITION control.
c. Set:
STOREINON-STORE
STORE
(button in)
SAVEICONT
CONT
d. CHECK - Trace remains within 0.5 division of the center graticule
line.
e. Set:
Vertical
MODE CH 2
STOREINON-STORE
NON-STORE
(button
out)
f.
Repeat parts b through d for
CH 2 trace, using the CH 2 controls.
g. Position the trace 0.5 division below the top horizontal graticule line
using the
CH 2 POSITION control.
h. Press in the
SAVEICONT button to select SAVE.
Appendices -A
