Measuring
Signals
Phase
Difference
=
.6
div
X
45"
=
27"
Channel
1
Reference
Channel
2

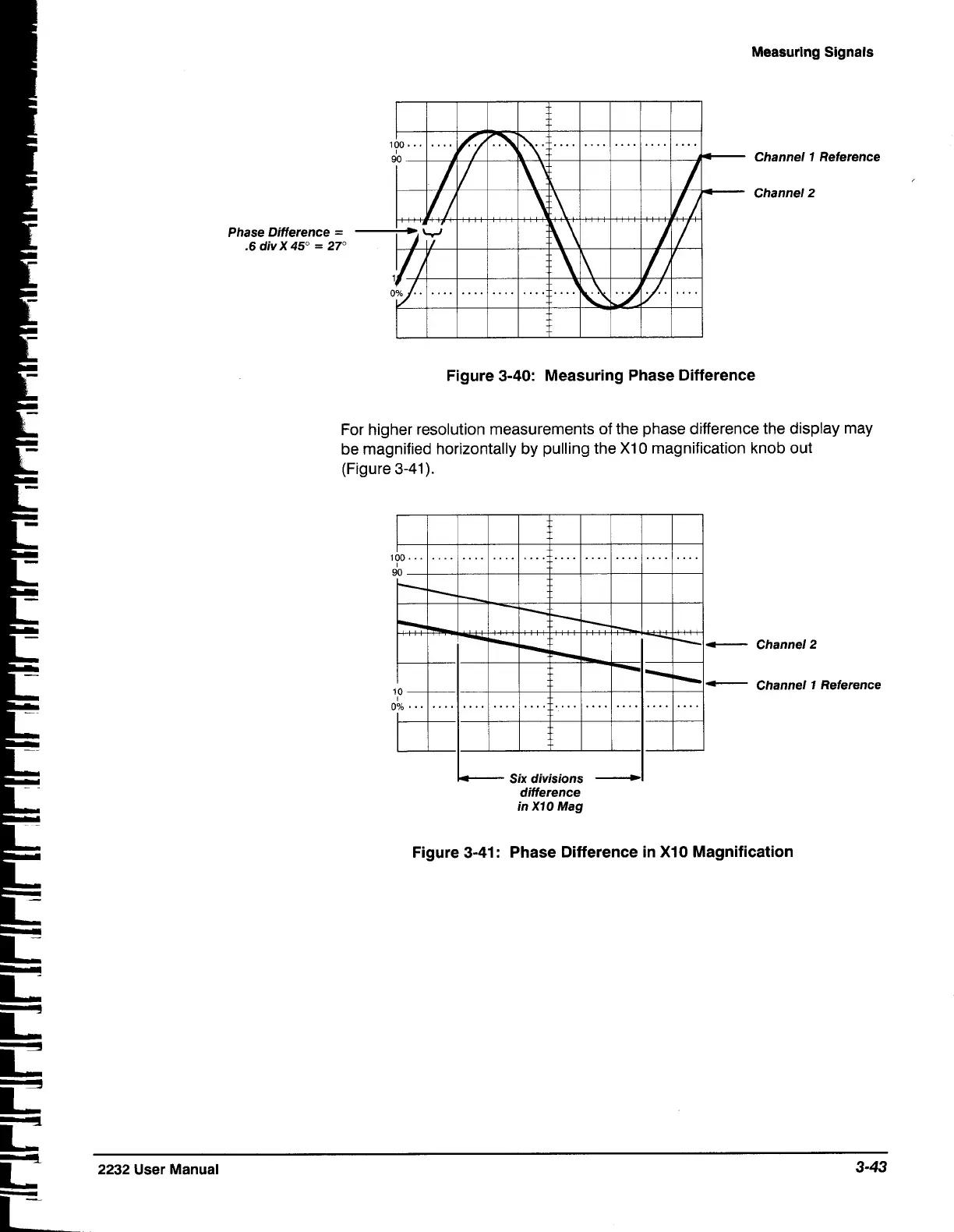

Figure
3-40:
Measuring
Phase
Difference
For
higher
resolution
measurements
of
the
phase
difference
the
display
may
be
magnified
horizontally
by pulling
the
XI
0
magnification
knob
out
(Figure
3-41).
Channel
2
Channel
1
Reference
Six
divisions
-1
difference
in
X1
0
Mag
Figure
3-41
:
Phase Difference
in
XI0
Magnification
105
107
