Tektronix 2232 User Manual

Appendix 6: Specification

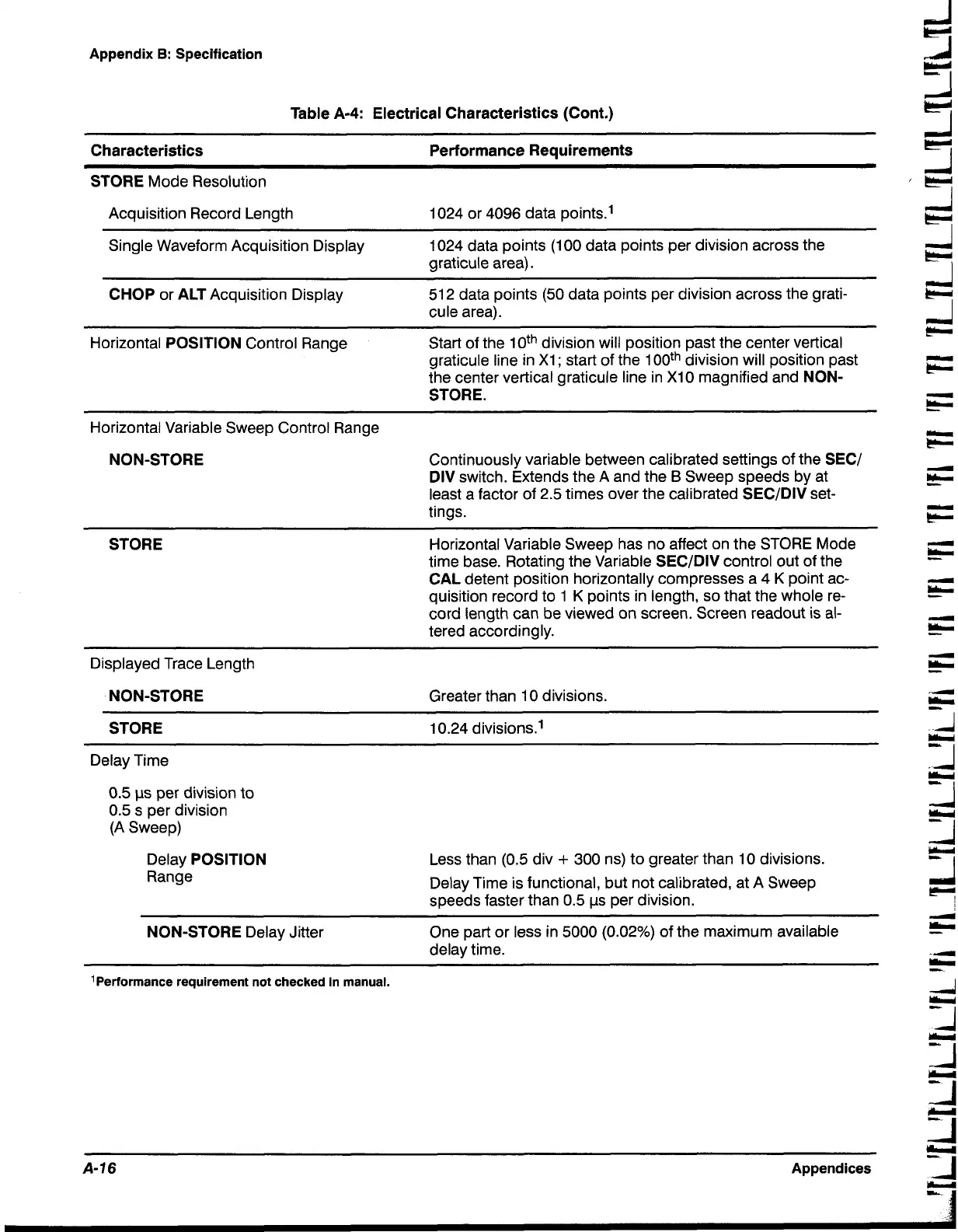

Table A-4: Electrical Characteristics (Cont.)
Characteristics Performance Requirements
STORE
Mode Resolution
Acquisition Record Length 1024 or 4096 data points.'
Single Waveform Acquisition Display
1024 data points (1 00 data points per division across the
graticule area).
CHOP or ALT Acquisition Display
51
2 data points (50 data points per division across the grati-
cule area).
Horizontal
POSITION Control Range
Start of the 1
oth division will position past the center vertical
graticule line in
XI ; start of the 1 Ooth division will position past
the center vertical graticule line in
XI0 magnified and NON-
STORE.
Horizontal Variable Sweep Control Range
NON-STORE Continuously variable between calibrated settings of the SECI
DIV switch. Extends the A and the B Sweep speeds by at
least a factor of 2.5 times over the calibrated
SECIDIV set-
tings.
STORE Horizontal Variable Sweep has no affect on the STORE Mode
-
time base. Rotating the Variable SECIDIV control out of the
!!?!?-
CAL detent position horizontally compresses a 4 K point ac-
-
quisition record to 1 K points in length, so that the whole re-
=
cord length can be viewed on screen. Screen readout is al-
-
tered accordingly. rr?-
Displayed Trace Length
NON-STORE Greater than 10 divisions.
STORE 10.24 divisions.'
Delay Time
0.5
ps per division to
0.5 s per division
(A Sweep)
Delay
POSITION
Range
Less than (0.5 div
+ 300 ns) to greater than 10 divisions.
Delay Time is functional, but not calibrated, at A Sweep
speeds faster than 0.5
ps per division.
-
NON-STORE Delay Jitter
One part or less in 5000 (0.02%) of the maximum available
delay time.
'Performance requirement not checked in manual.
