Tektronix 2232 User Manual

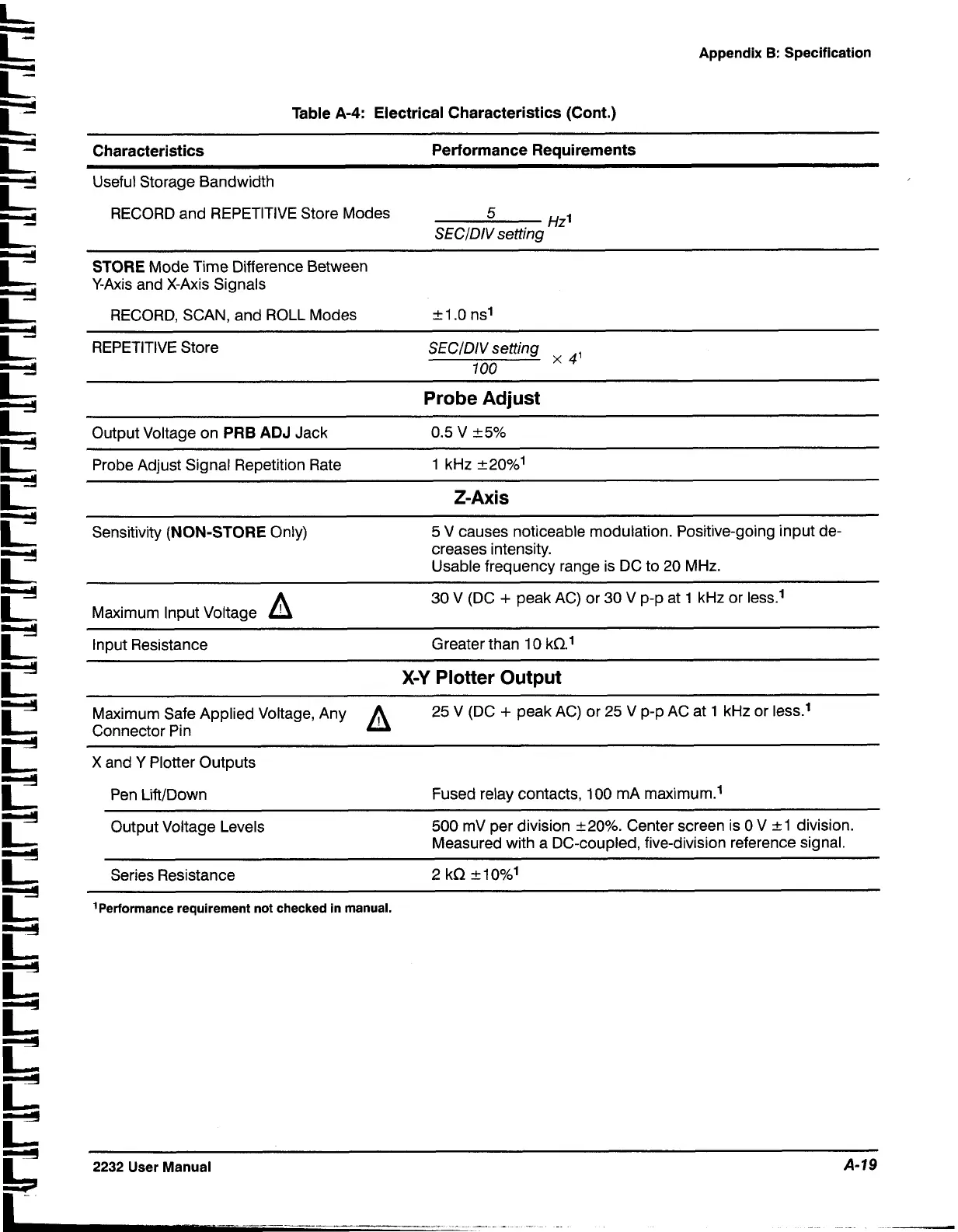

Appendix B: Specification
Table A-4: Electrical Characteristics (Cont.)
Characteristics Performance Requirements
Useful Storage Bandwidth
RECORD and REPETITIVE Store Modes
5
Hz1
SECIDIV setting
STORE Mode Time Difference Between
Y-Axis and X-Axis Signals
RECORD, SCAN, and ROLL Modes
REPETITIVE Store
- --
Probe Adjust
Output Voltage on PRB ADJ Jack
0.5 V +5%
Probe Adjust Signal Repetition Rate
1 kHz 220%'
Z-Axis
Sensitivity (NON-STORE Only)
5 V causes noticeable modulation. Positive-going input
de-
creases intensity.
Usable frequency range is DC to 20 MHz.
A
30 V (DC + peak AC) or 30 V p-p at 1 kHz or less.'
Maximum lnput Voltage
Input Resistance
Greater than 10
kQ.'
X-Y Plotter Output
Maximum Safe Applied Voltage, Any
A
25 V (DC + peak AC) or 25 V P-P AC at 1 kHz or less.'
Connector Pin
X and Y Plotter Outputs
Pen
LiftIDown
Fused relay contacts, 100 mA maximum.l
Output Voltage Levels
500
mV per division 220%. Center screen is 0 V +I division.
Measured with a DC-coupled, five-division reference signal.
Series Resistance
2
kQ 2 10%'
'Performance requirement not checked in manual.
2232 User Manual A-19
