Tektronix 2232 User Manual

Appendix B: Specification
Table A-4: Electrical Characteristics (Cont.)
--
Characteristics
Performance Requirements
-- - --
GPlB Option
GPIB Requirements
Complies with
ANSIJIEEE Standard 488-1 978.'
RS-232-C Option
RS-232-C Requirements
Complies with EIA Standard
RS-232-C.l
Baud Rates
Available Rates
1 10,300,600,1200, and 2400 baud.'
-
Accuracy
< 1% error.'
'Performance requirement not checked in manual.
Volts 100
(DC + Peak AC)
10
10 kHz 50 kHz 100 kHz 500 kHz 1 MHz 100 MHz
Frequency

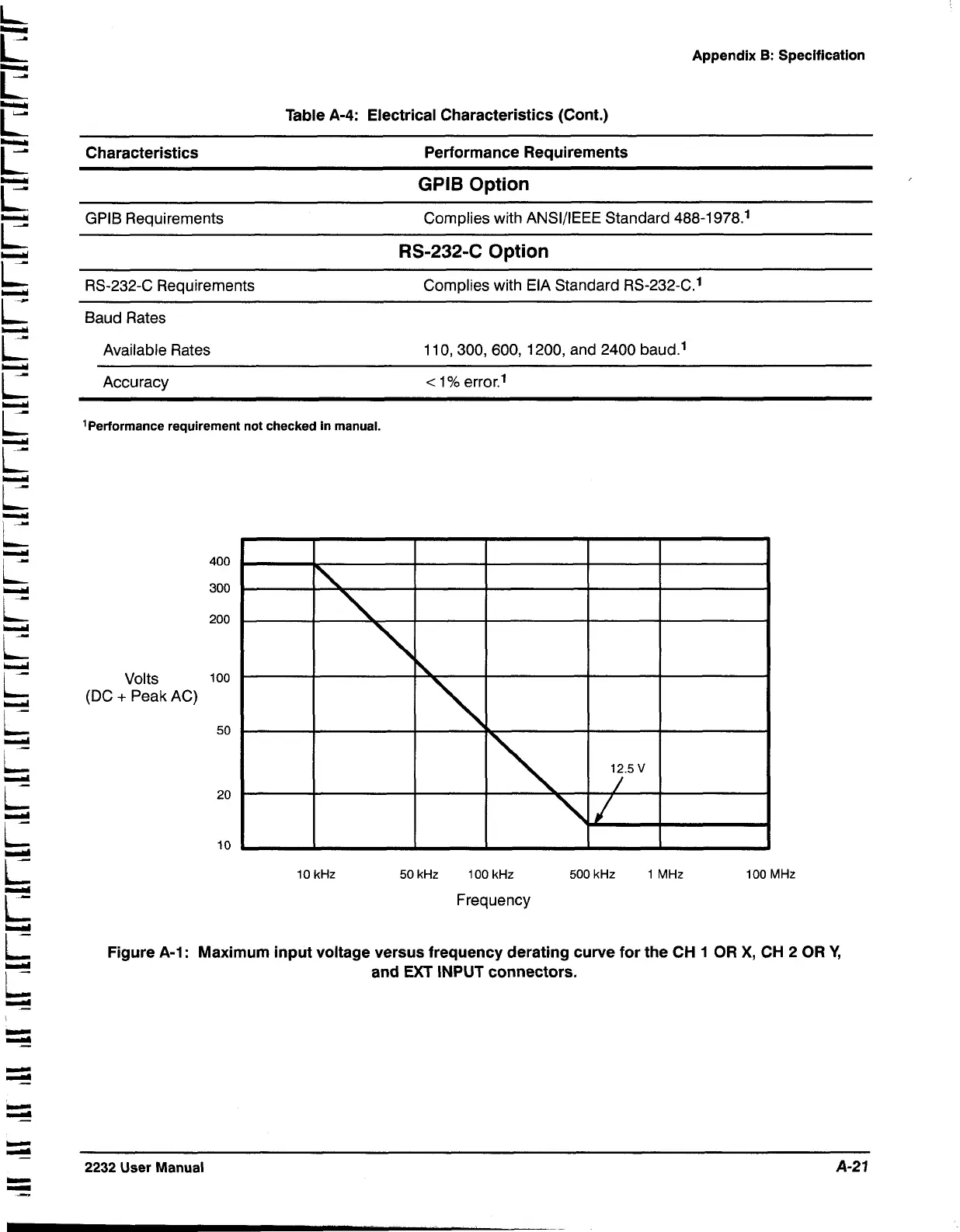

Figure A-I : Maximum input voltage versus frequency derating curve for the CH 1 OR X, CH 2 OR Y,
and EXT INPUT connectors.
