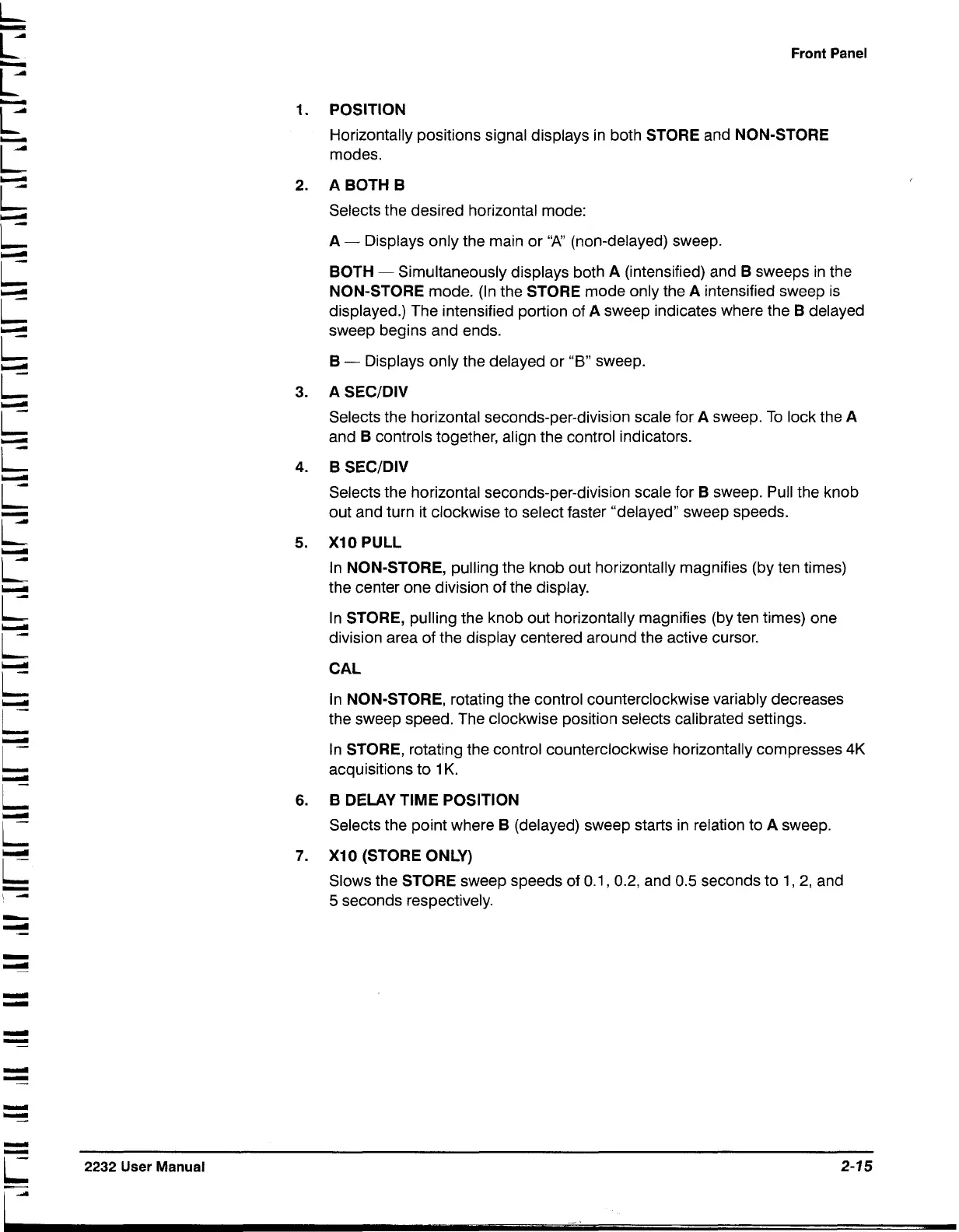

Front Panel
1.
POSITION
Horizontally positions signal displays in both
STORE
and
NON-STORE
modes.
2.
ABOTH B
Selects the desired horizontal mode:
A
-
Displays only the main or
'?I"
(non-delayed) sweep.
BOTH
-
Simultaneously displays both
A
(intensified) and
B
sweeps in the
NON-STORE
mode. (In the
STORE
mode only the
A
intensified sweep is
displayed.) The intensified portion of
A
sweep indicates where the
B
delayed
sweep begins and ends.
B
-
Displays only the delayed or
"B"
sweep.
3.
A SECIDIV
Selects the horizontal seconds-per-division scale for
A
sweep. To lock the
A
and
B
controls together, align the control indicators.
4.
B SECIDIV
Selects the horizontal seconds-per-division scale for
B
sweep. Pull the knob
out and turn it clockwise to select faster "delayed" sweep speeds.
5.
XI0
PULL
In
NON-STORE,
pulling the knob out horizontally magnifies (by ten times)
the center one division of the display.
In
STORE,
pulling the knob out horizontally magnifies (by ten times) one
division area of the display centered around the active cursor.
CAL
In
NON-STORE,
rotating the control counterclockwise variably decreases
the sweep speed. The clockwise position selects calibrated settings.
In
STORE,
rotating the control counterclockwise horizontally compresses
4K
acquisitions to
1
K.
6.
B DELAY TIME POSITION
Selects the point where
B
(delayed) sweep starts in relation to
A
sweep.
7.
XI0 (STORE ONLY)
Slows the
STORE
sweep speeds of 0.1,
0.2,
and 0.5 seconds to 1,
2,
and
5 seconds respectively.
C
2232
User
Manual
-
