Displaying Signals

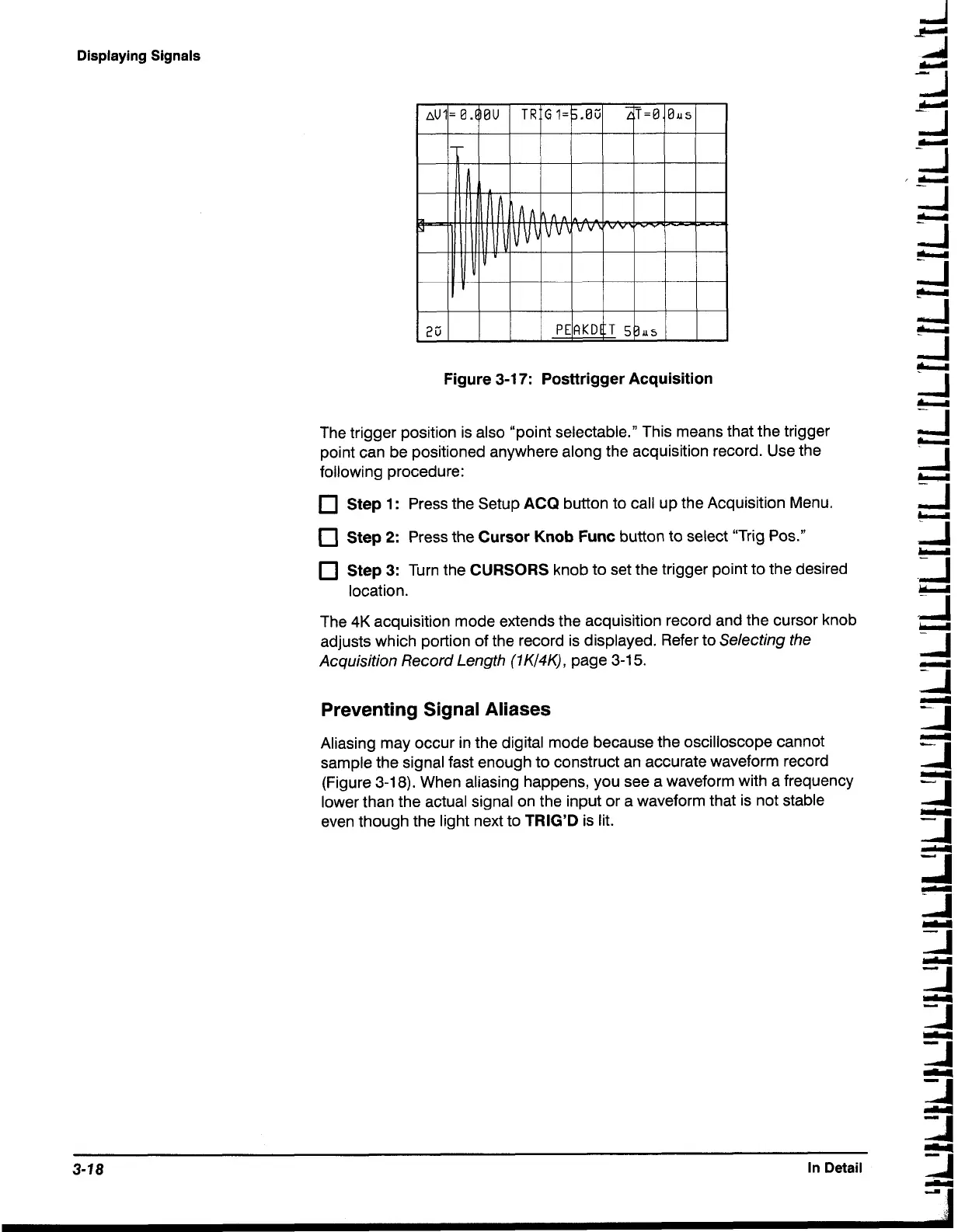

Figure 3-1
7:
Posttrigger Acquisition
-I
The trigger position is also "point selectable." This means that the trigger
3
u
point can be positioned anywhere along the acquisition record. Use the
following procedure:
-,I
Step 1: Press the Setup ACQ button to call up the Acquisition Menu.
3
I
Step
2:
Press the Cursor
Knob
Func
button to select "Trig Pos."
2
m
Step 3: Turn the CURSORS knob to set the trigger point to the desired
location.
;I
+
I
The 4K acquisition mode extends the acquisition record and the cursor knob
adjusts which portion of the record is displayed. Refer to
Selecting the
Acquisition Record Length
(1
K/4K),
page
3-1
5.
Preventing Signal Aliases
Aliasing may occur in the digital mode because the oscilloscope cannot
sample the signal fast enough to construct an accurate waveform record
(Figure
3-18).
When aliasing happens, you see a waveform with a frequency
lower than the actual signal on the input or a waveform that is not stable
even though the light next to TRIG'D is lit.
3
Y1
1
7
3
7
7
3
u
3-78
In
Detail
A
m
4
