Removal and Installation Procedures
6--18
TDS5000B Series Service Manual
Printer
frame
Right side
cover
T-15 Torxdrive
screw (2)
Cable
restraint
T-15
Torxd rive
screw (4)
Printer
cable

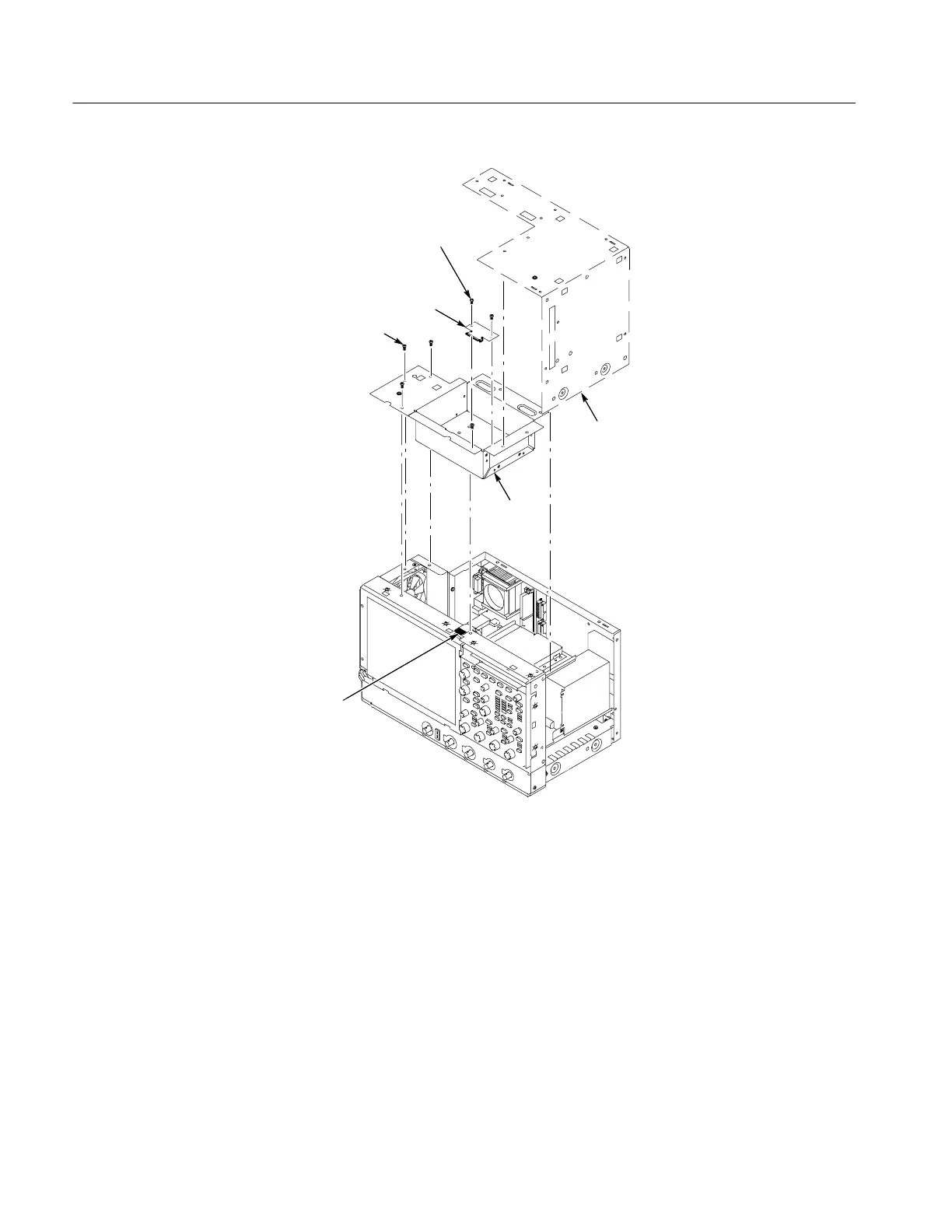

Figure 6--5: Printer frame removal
4. Reverse the procedure to reinstall.
