Tektronix TDS5000B Series

Removal and Installation Procedures
6--48
TDS5000B Series Service Manual
Coaxial
cable (1)
T-- 15 Torx
screw (6)
Probe interface
circuit board
Acquisition circuit board
Disconnect ribbon cable from
the acquisition board
Coaxial
cable (2)
T-- 15 Torx
screw (6)
J1800

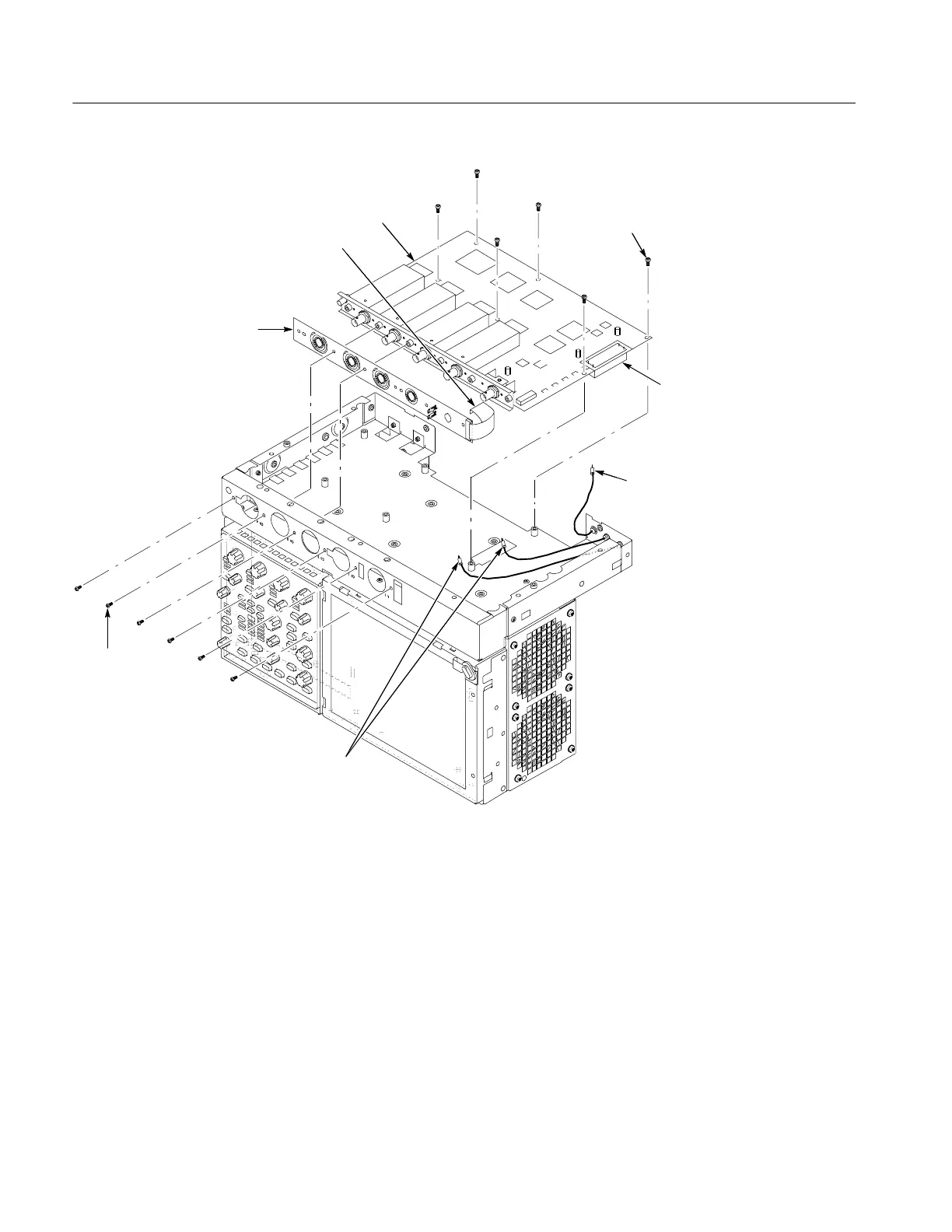

Figure 6--25: Acquisition circuit board removal
