Tektronix TDS5000B Series Service Manual

Removal and Installation Procedures
6--44
TDS5000B Series Service Manual
Motherboard
assembly
T-15 Torxdrive
screw (4)
Power cord
retainer (4)
VGA bracket
Front of the
instrument
Jack screw (2)
T-15 Torxdrive
screw (9)
Disconnect from
the motherboard
Disconnect from the
PC interface board
Motherboard
assembly
Rear View
Front View
T-15 Torxdrive
screw (6)
Motherboard
Disconnect
from the
motherboard
Pouch bracket

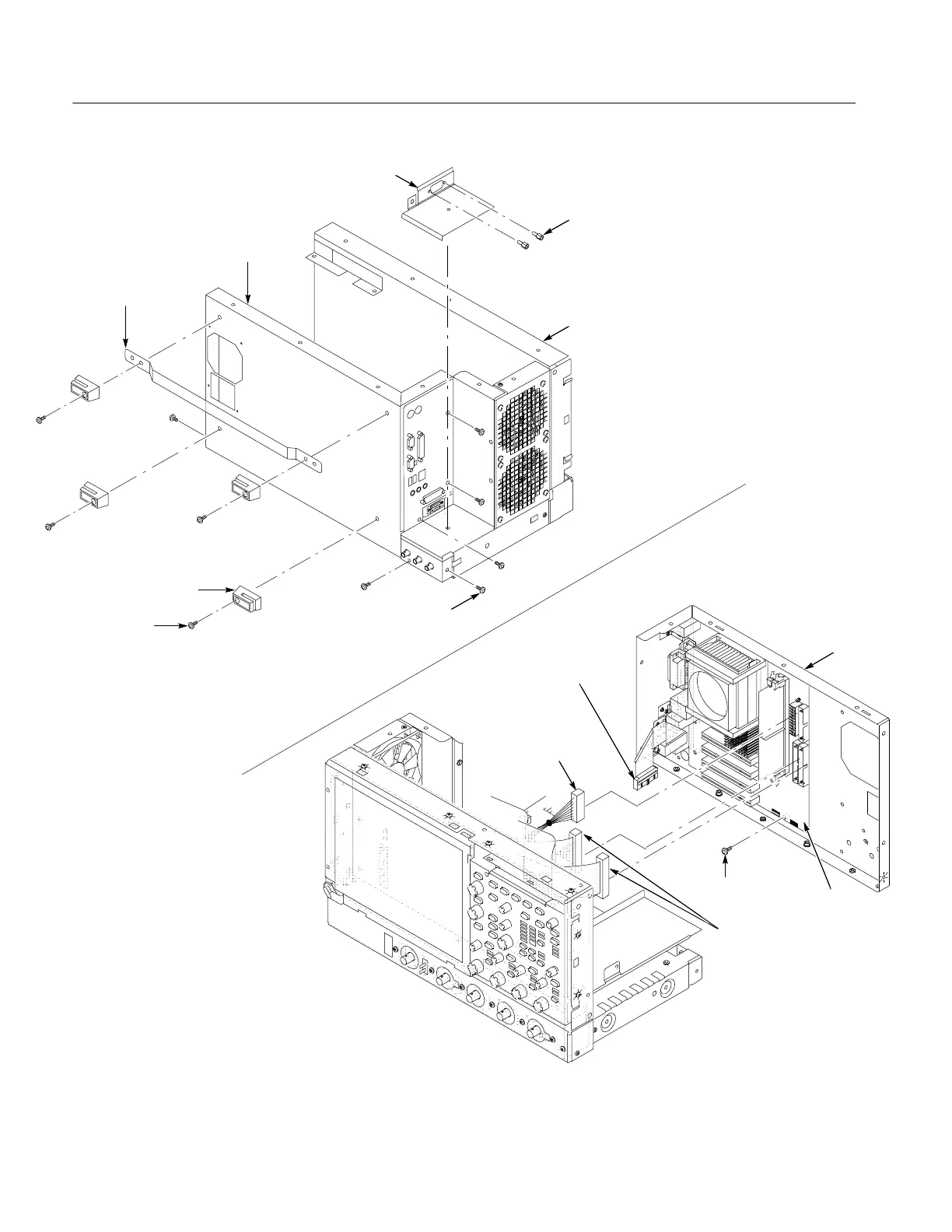

Figure 6--23: Motherboard removal
