Removal and Installation Procedures
TDS5000B Series Service Manual
6--29
b. Slide the connector end of the power flex circuit through the slot in the
Display assembly. Make sure the flex circuit connector aligns with J7 on
the Display Adapter circuit board.
c. Align the holes in the power flex circuit to the two index posts on the
front side of the Display assembly.
d. Firmly press the flex circuit to the Display assembly chassis surface.
Display
assembly
Display adapter board
J7
Front view
Back view
Power flex circuit
Power flex circuit

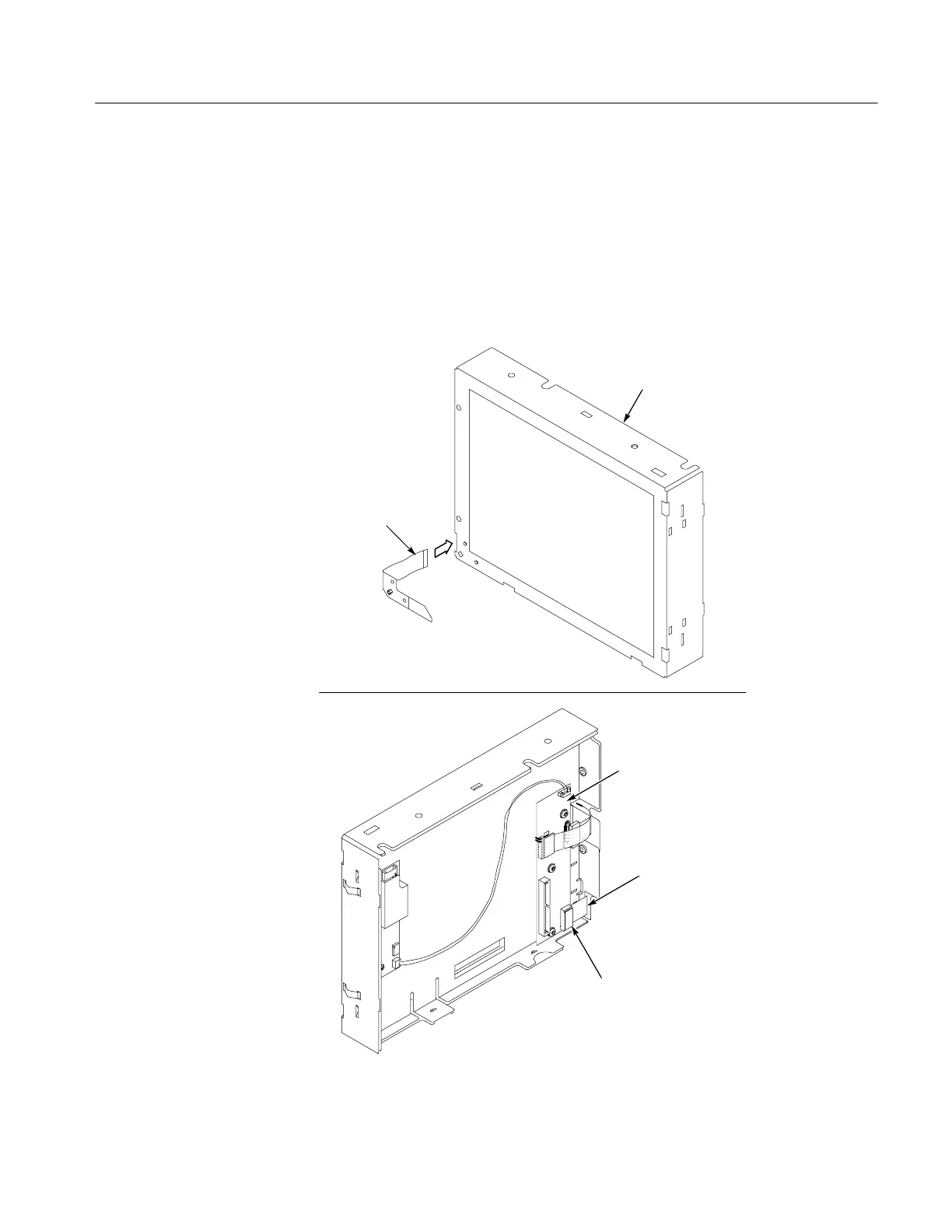

Figure 6--13: Power flex circuit removal
