Tektronix TDS5000B Series Service Manual

Removal and Installation Procedures
6--46
TDS5000B Series Service Manual
b. Install the six T-15 Torxdrive screws that secure the PC interface board
to the chassis.
c. Connect the two cables to the PC interface board.
T-15 Torxdrive screw (6)
Back of the
instrument
Acquisition
board
Disconnect from the
PC interface board
Guide pin (located
on the back of the
board)
Do not
remove
this screw!
Disconnect
from the PC
interface board
Interface
board

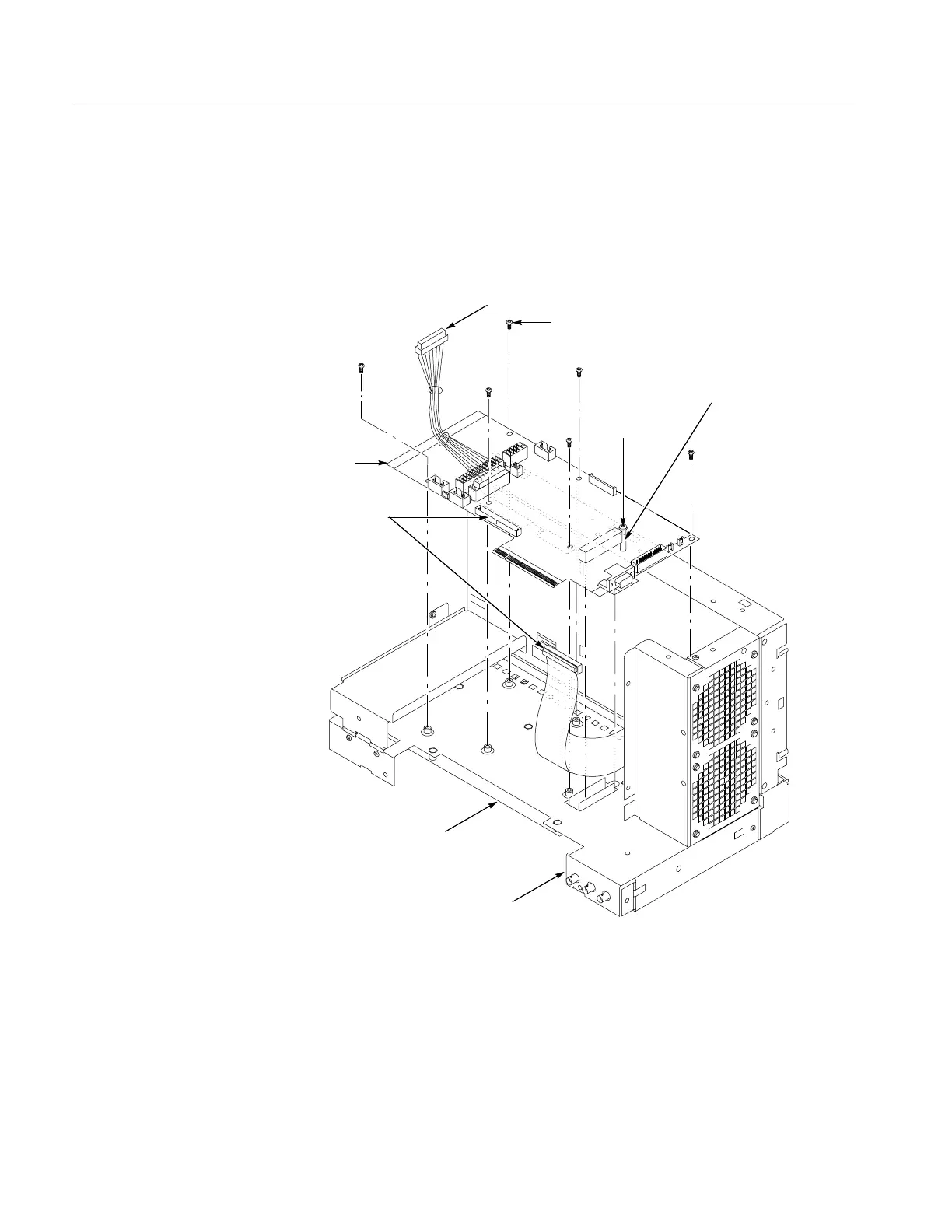

Figure 6--24: PC interface board removal
