Instruction manual for MH & MH+M
12

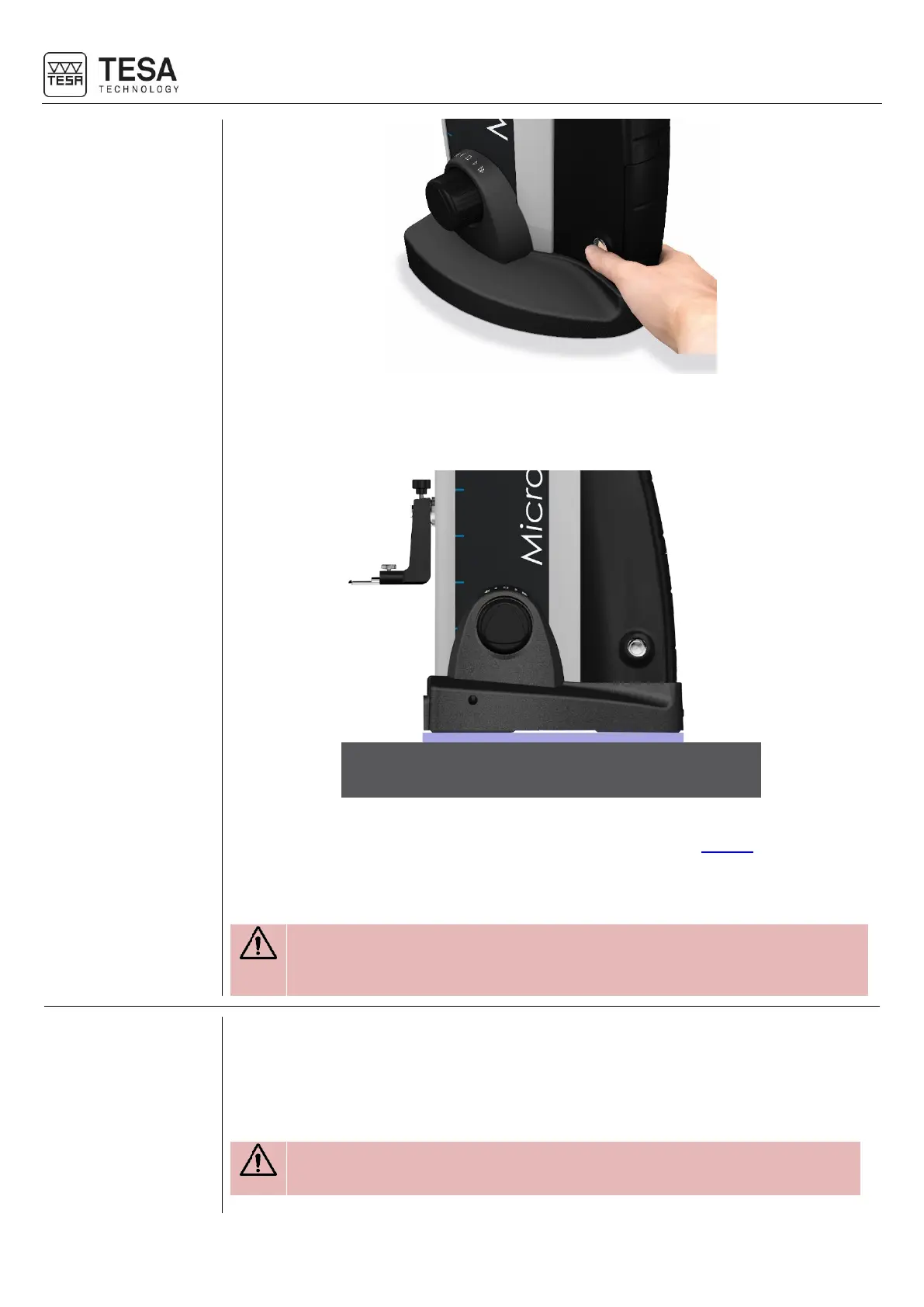

This pump is activated by pushing a control button, which immediately activates an air cushion
between the instrument and the granite table (violet zone below), which is only a few microns
thick.
The thickness of the air cushion can be adjusted according to the quality of the granite table.
You can adjust it via the control software (for further details, see this chapter).
When measuring workpieces where the dimensions or weight don’t allow for any movement,
the height gauge can be moved by using the air cushion.
Experience has shown that the air cushion should not be thicker than
necessary. When it is activated, it has to support the weight of the instrument
while still being slightly in contact with the granite table.
The rigid vertical column of the instrument is perpendicular to the cast-iron base, to which it is
permanently fixed.
The perpendicularity of each instrument is adjusted mechanically in the factory using a
patented TESA system, which makes it possible to use it for a reliable and quick control of
perpendicularity.
The height gauge is adjusted for frontal as well as lateral perpendicularity
measurements.
