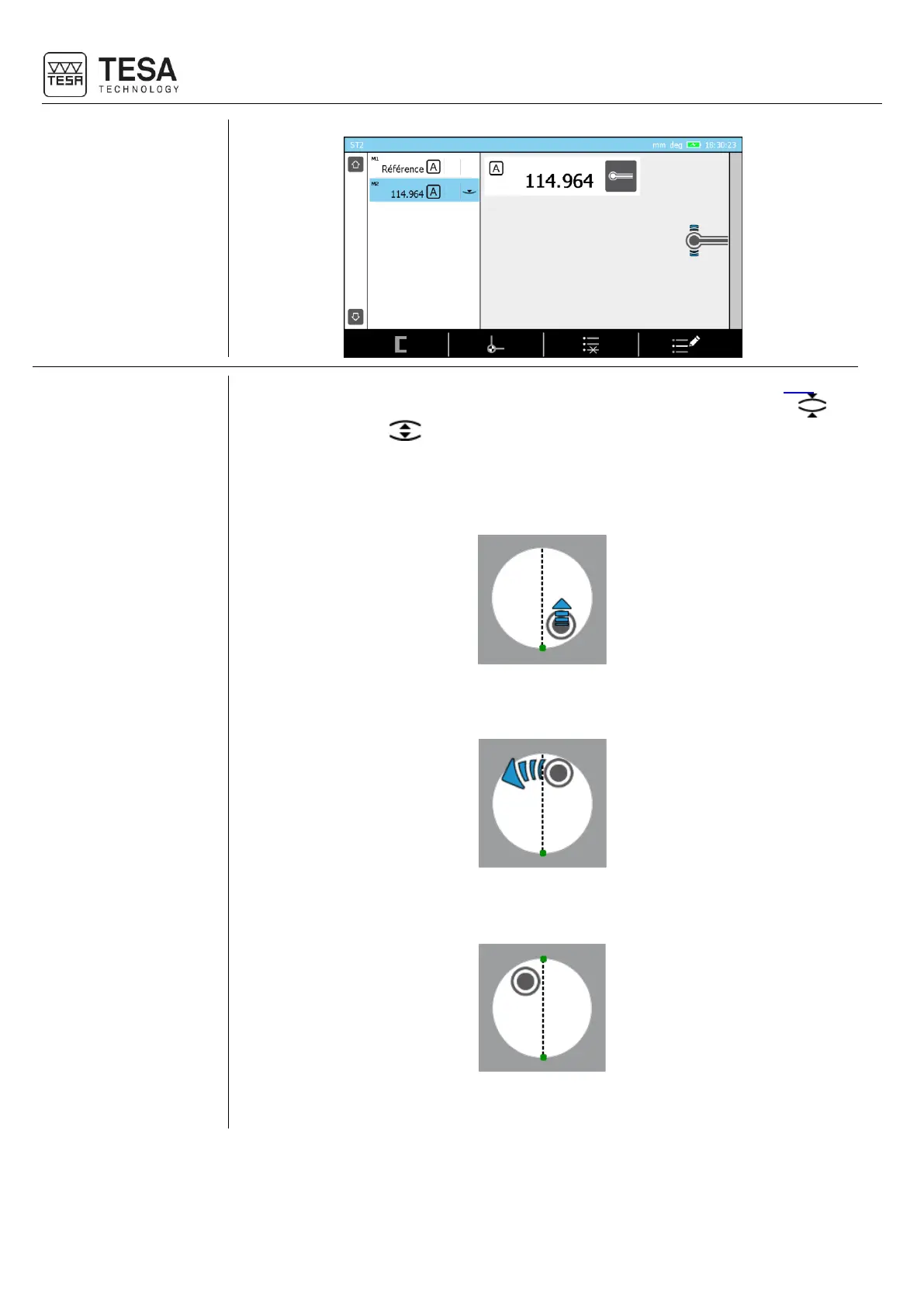

The first steps of measuring a bore or axis are the same as the steps described here. The
only difference is the keyboard action selected. Now you have to either activate for
axis measurement, or for bore measurement.
1. As soon as the first culmination point has been determined, the probe will automatically
move in the direction of the second point in order to be positioned in contact with the
opposite part of the element to be measured.
2. Once the contact is established, it is important to wait for the validation of the software
in order to proceed with the displacement of the probe in the bore/axis to be measured.
3. Once the minimum (or maximum) point passed, the software will issue a beep. The
probe will retract (displacement defined in the system parameters) and stop.
4. The result is automatically displayed on the screen of the control panel.
