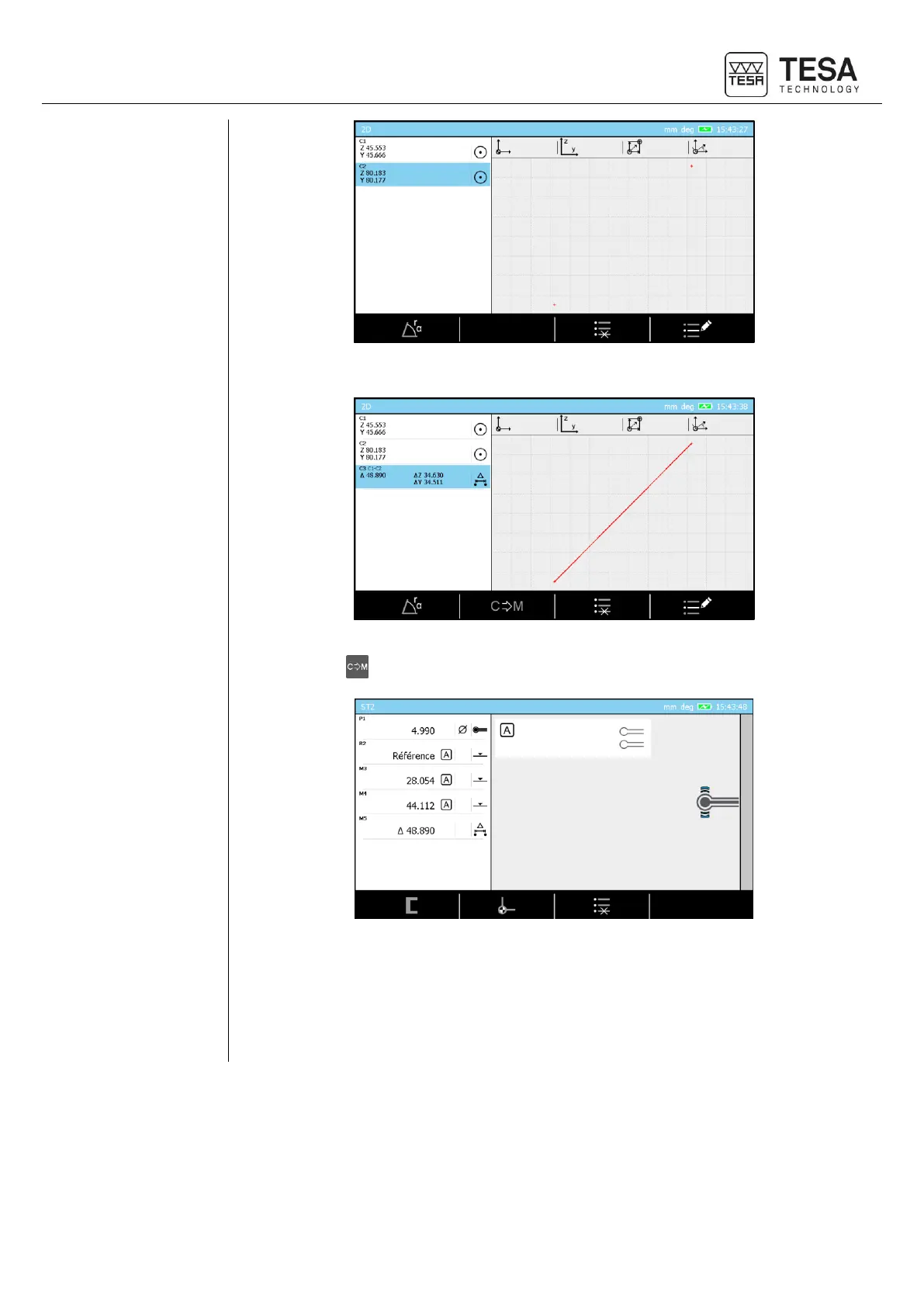

Now that the two circles are measured, calculate the distance between their two centres.
A new C3 block is created in the memory. Now you have to transfer it to the ST2 mode memory
by pressing the button. At this moment a beep should sound.
A new M5 block is now created in the ST2 mode memory. This block represents the distance
between the two circles measured in the 2D mode. The user can continue to feed ST2 mode
memory by continuing the measurements or saving the program.
When the software arrives at the M5 block during the execution of this program, it will
automatically enter the 2D mode and ask the operator to measure the two circles he needs to
set the M5 distance.
