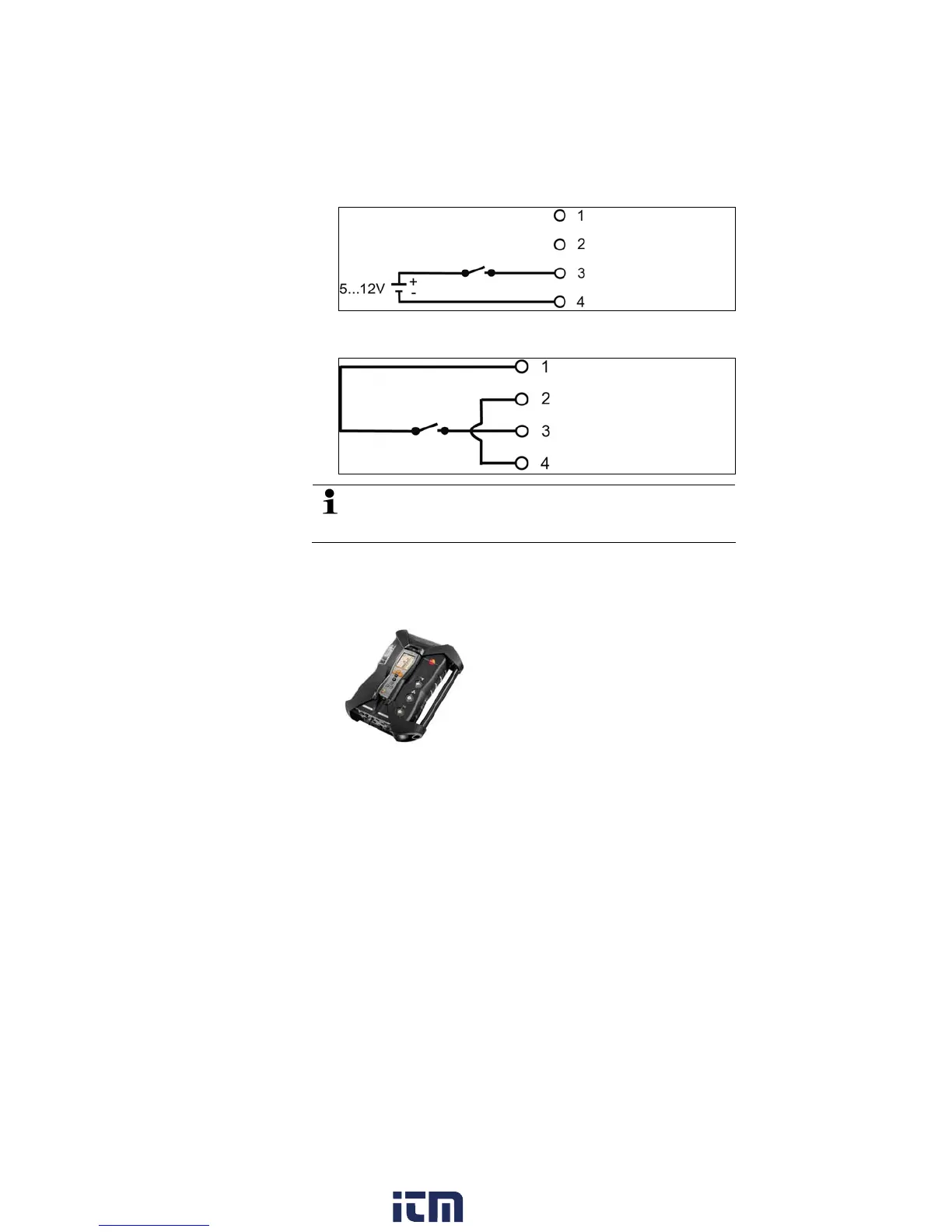

5.2.3. Occupying the trigger input
The trigger input can be used as a criterion to either start or stop
(ascending or descending flank) measuring programs.
> Activating the trigger input, with external voltage supply
(5...12 V):
> Activating the trigger input, with supply via instrument voltage
(12 V):
When using the instrument voltage the analyzer can only
be started via the trigger input from the switched off state
when the AC power cord is plugged in.
5.2.4. Connecting system components
5.2.4.1. Connection using contact strip
The control unit can be plugged onto the analyzer box.
1. Place the guide groove in the bottom side of the control unit
over the guide pins of the analyzer box.
