77
6.3. Analog outputs
(only available via tab Analog output box)
The analog output box is displayed like the analyzer box.
The tab contains the databus number.

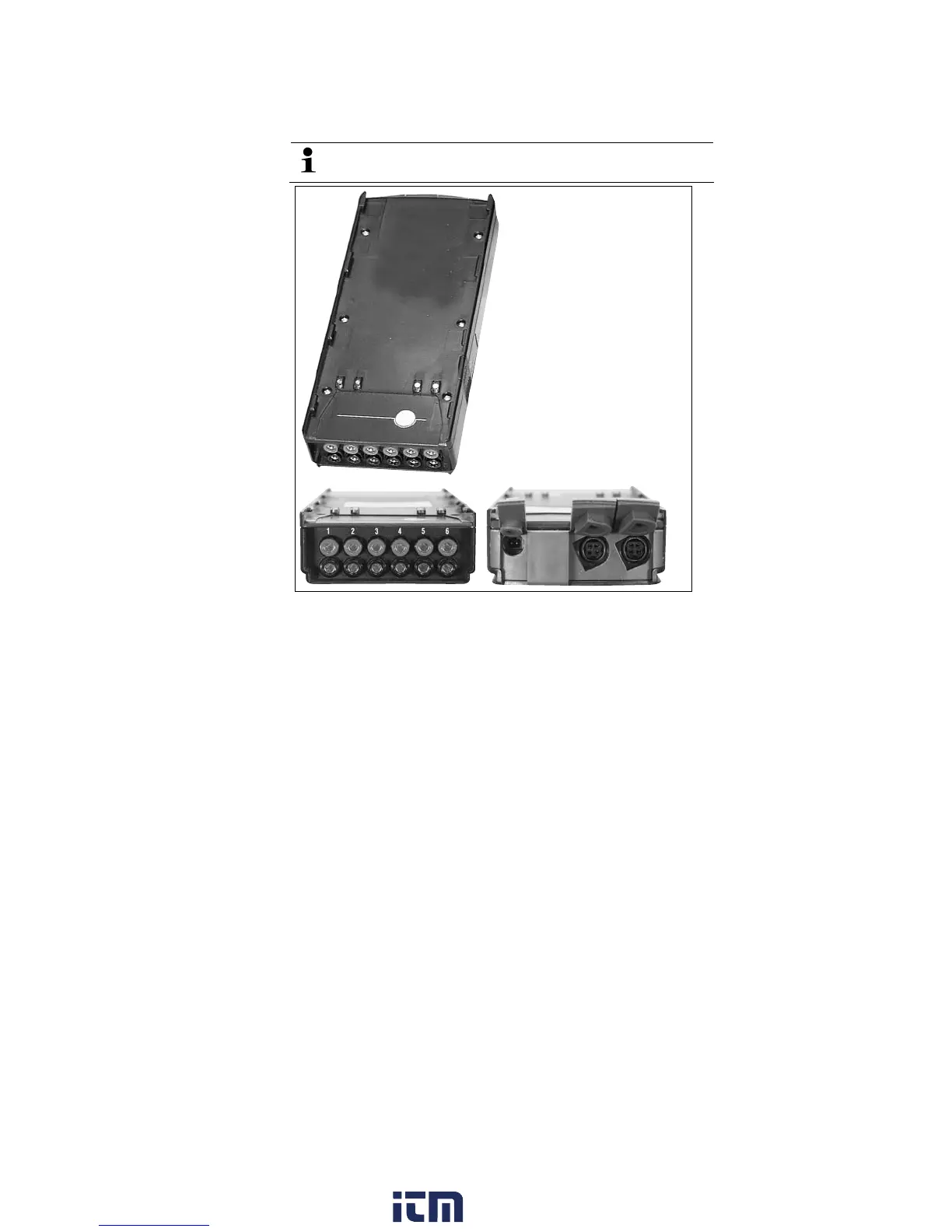

The analog output box 0554 0845 (accessory) is suitable for the
output of up to 6 measuring channels in form of analog signals (4 to
20 mA). The analog output box is connected to the instrument via
databus, the configuration can be made via control unit or the PC
software easyEmission (with testo databus controller).
Power supply
Power is supplied to the analog output box via the measuring box.
The LED of the analog output unit lights green when the power
supply is correct.
Each individual output channel is thereby assigned to a measuring
channel, the range of the respective measurement channel is
entered and then corresponds to the 4 t 20 mA output of the output
box connected to this channel. If the measurement range is
