7.11.3. Changing the condensate pump
The condensate pump is only available in instruments with
the gas preparation (GP) option.

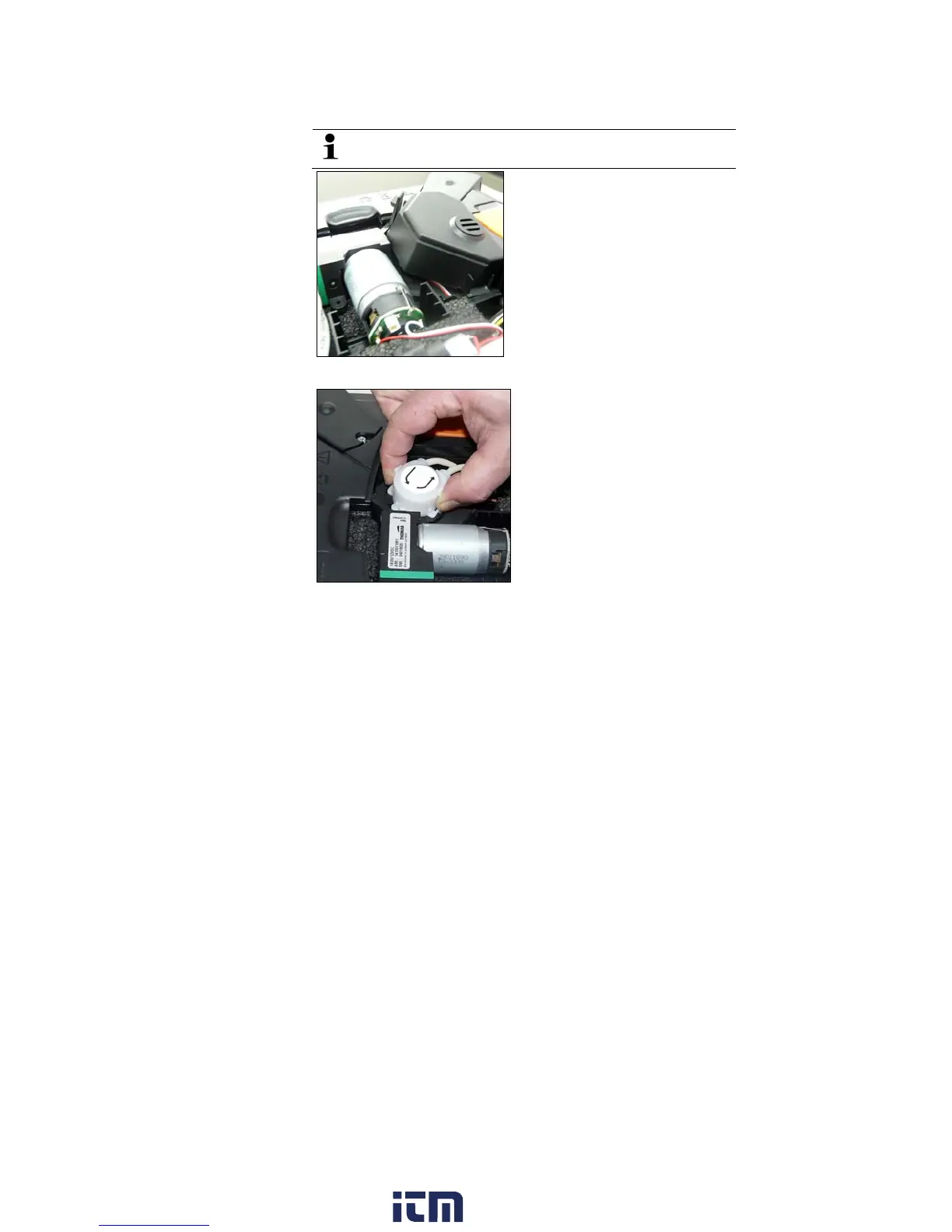

1. Unlock an remove the cover.
2. Unlock the two lateral clip locks of the condensate pump and
pull off the pump head.
3. Pull the inlet and outlet hoses off the sockets on the analyzer
box.
4. Plug the inlet hose (length 0.98") and outlet hose (length 1.2")
of the new pump onto the connecting sockets of the analyzer
box.
5. Push the pump onto the motor shaft until the clip locks engage.
Make sure that the tubes are not pinched or constrained.
6. Attach cover.
