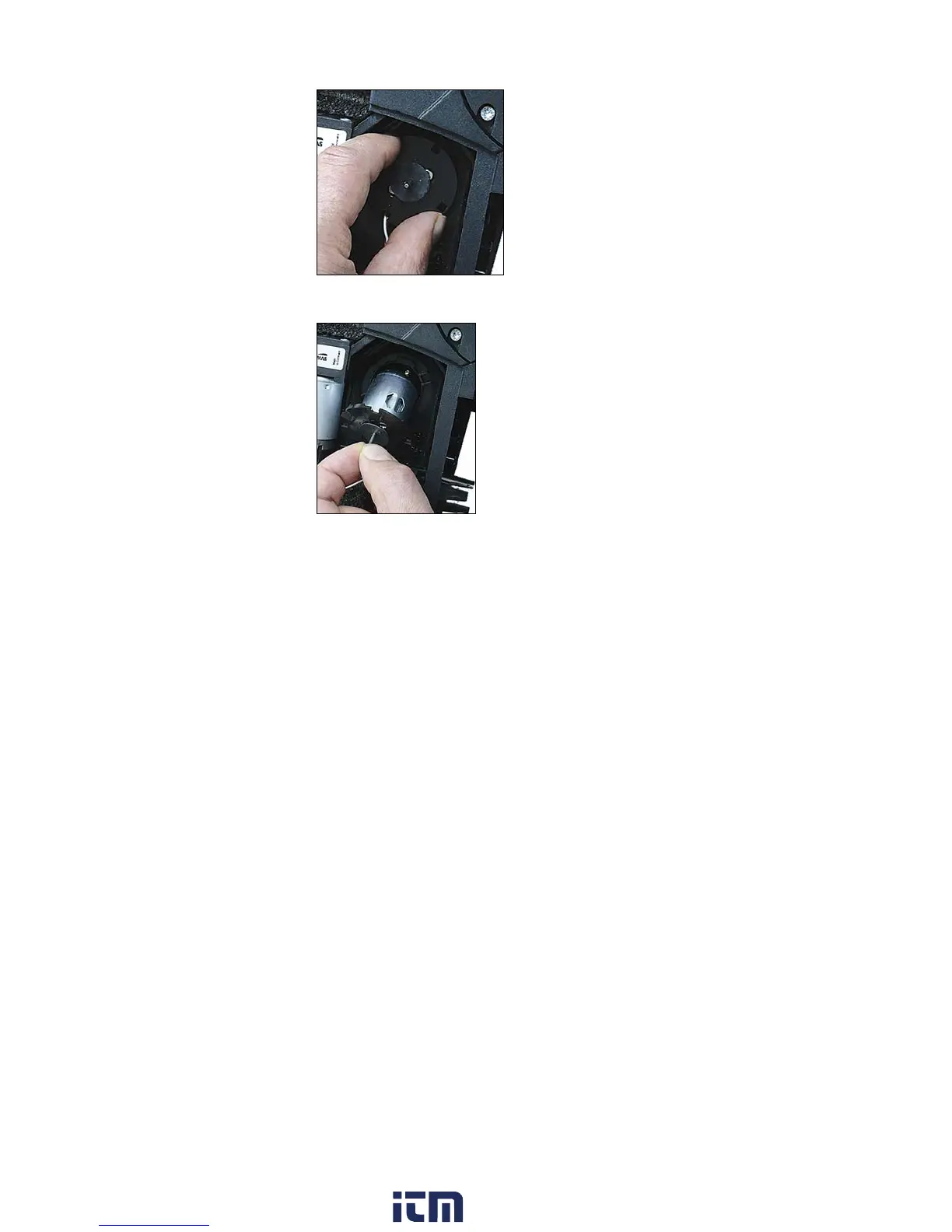

4. Loosen the motor on the condensate pump (short anti-
clockwise turn).
5. Take the motor of the condensate pump out of the bracket.
6. Loosen the plug connector, remove the motor.
7. Push on the plug connector of the new motor.
8. Place the motor of the condensate pump into the bracket.
9. Fasten the motor on the condensate pump (short clockwise
turn).
10. Plug the inlet hose (length 0.98") and outlet hose (length 1.2")
of the pump onto the connecting sockets of the analyzer box.
11.Push the pump onto the motor shaft until the clip locks engage.
Make sure that the hoses are not pinched or constrained.
12.Attach cover.
