95

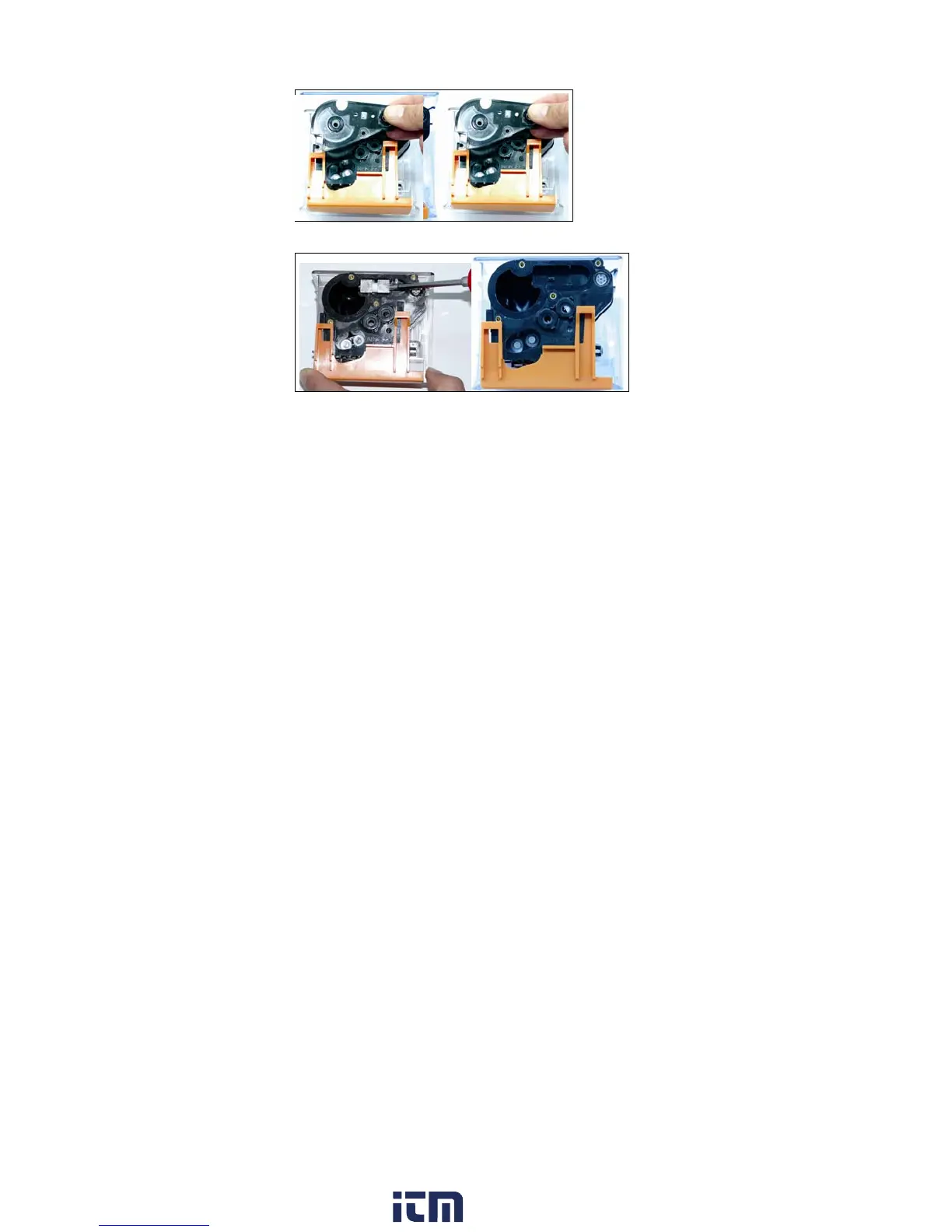

2. Unscrew the 4 screws from the cover and open the cover.
3. Remove the measuring electrodes and clean them with a dry
cloth.
The housing may still contain condensate residues.
4. Clean out all condensate and wipe the housing with a dry cloth.
5. Reinsert the cleaned measuring electrodes.
6. Attach the cover and fasten it with the screws.
7.Plug the condensate trap/condensate container on the analyzer
box.
