Operation
Range Menu
3-12 Model 48i Instruction Manual Thermo Electron Corporation

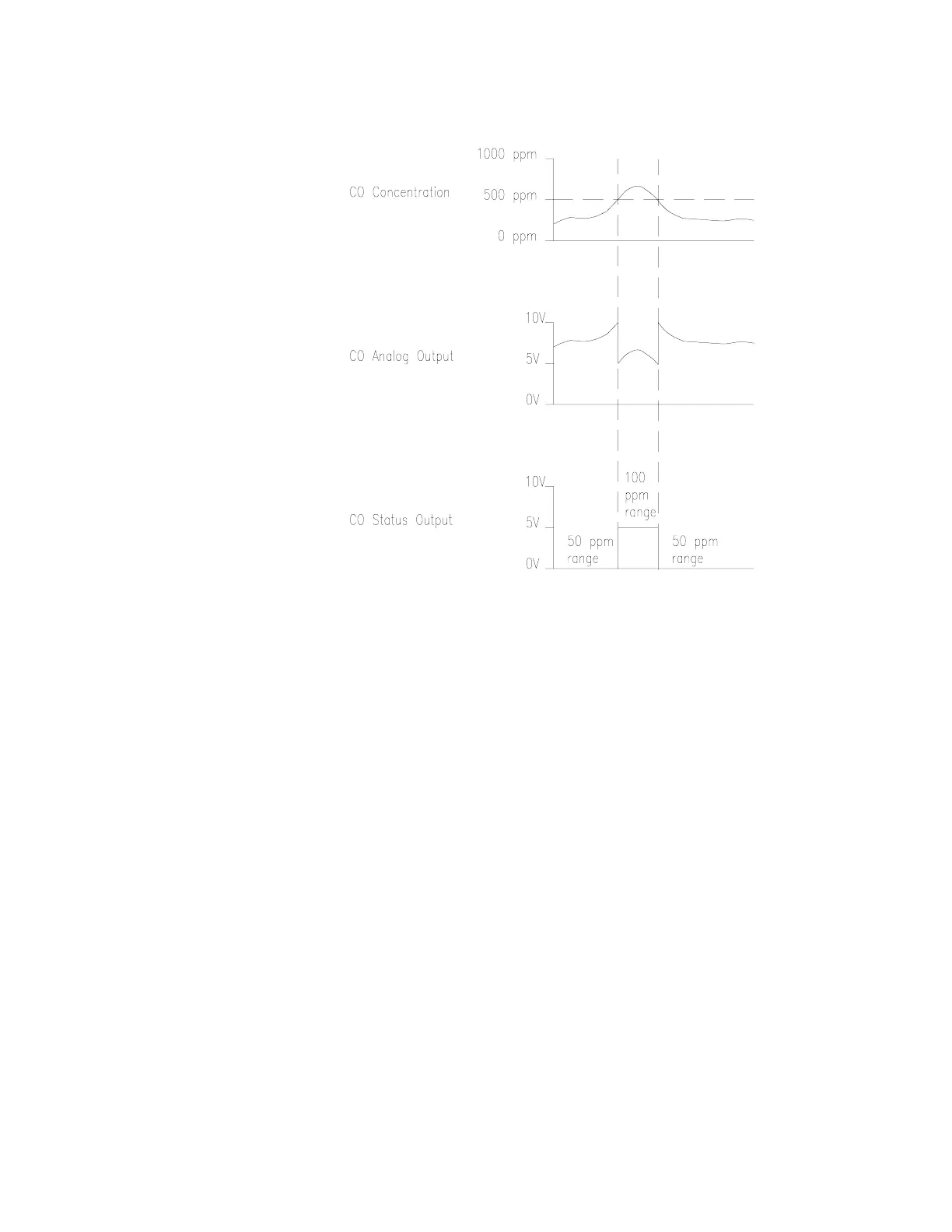

Figure 3-6. Analog Output in Autorange Mode
By default, in the autorange mode, the analog outputs are arranged on the
rear panel connector as shown in Figure 3-7. Refer to Table 3-4 for channels
and pin connections. Autorange mode may be selected from the
“Single/Dual/Auto Select” in the “Service Menu”, later in this chapter.
To Next Page
