Operation
Range Menu
Thermo Electron Corporation Model 48i Instruction Manual 3-13

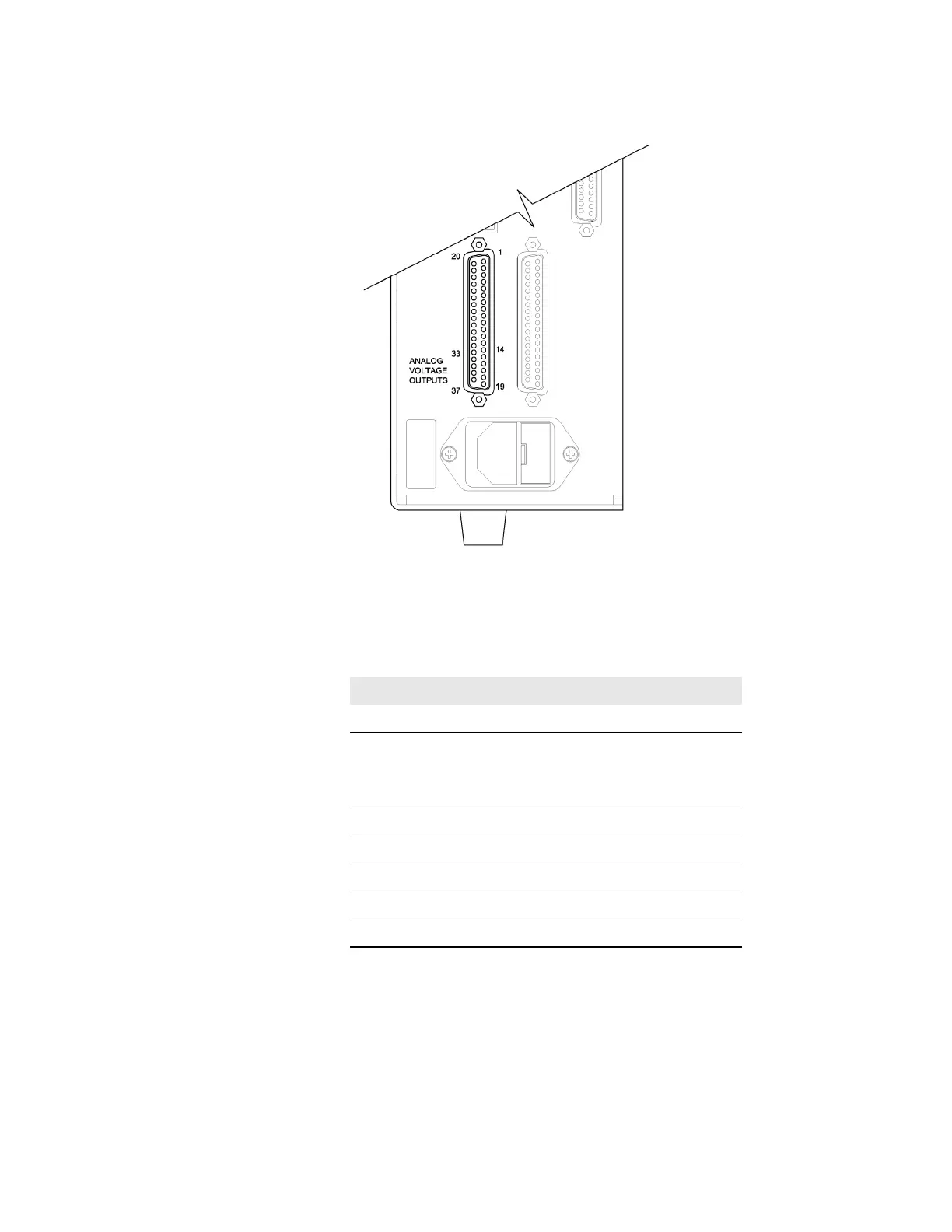

Figure 3-7. Pin-Out of Rear Panel Connector in Autorange Mode
Table 3-4. Default Analog Outputs in Autorange Mode
Note All channels are user definable. If any customization has been made to
the analog output configuration, the default selections may not apply.
Channel Pin Description
1 14 CO Analog Output
2 33 CO Status Output:
half-scale = high range
zero scale = low range
3 15 None
4 34 None
5 17 None
6 26 None
Ground 16, 18, 19, 35, 37 Signal Ground
