Redstone™ Optical Spectrum Analyzer Chapter 5: Using the Free-Space Input
Page 13 STN053070-D02
Chapter 5 Using the Free-Space Input

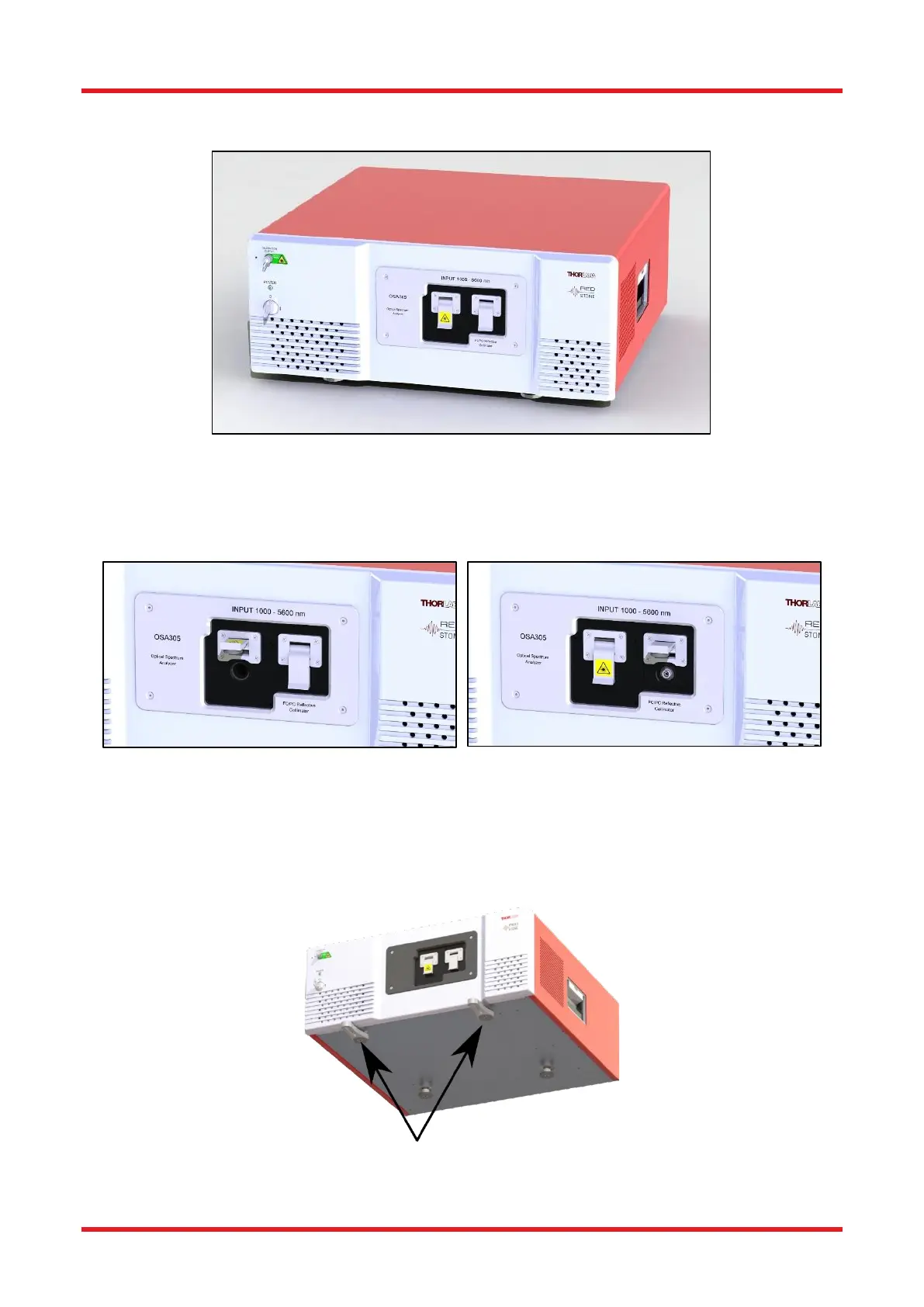

Figure 6. Front Panel of the Redstone OSA305
These instruments have two input options: fiber coupled and free-space. It is not possible to use both input
options at the same time. By default, we provide an FC/PC receptacle for the fiber input, but other receptacles
can be requested at the time of the order.
Figure 7. Free-Space Input (Left) and FC/PC Input (Right) on the Redstone OSA305 front
5.1. Table Mounting when Using the Free-Space Input
Place the OSA on a flat and stable surface, preferably an optical table. If the free-space input is to be used, it
is recommended to use two Thorlabs CF175 clamping forks on the mounting feet to secure the OSA to the
optical table and reduce any vibrations that might interfere with the measurements.
Figure 8. Using two CF175 Clamping Forks, the Interferometer Assembly can be Locked to the Table
