Regular Inspection and Adjustment
MERGE 2-7
Chapter 2
6. Measure
In case the inside diameter of the drum does not
meet the specification, it will be replaced with a new
one.
Standard inside diameter:
180mm（7.2 in）
Maximum wearing value of the inside diameter:
1.5mm（0.06 in）
7. Inspect：
· Surface of shoe block
Oil → Replace the old one or fully clean until no oil is
found
Scrape → Rub lightly with the abrasive cloth

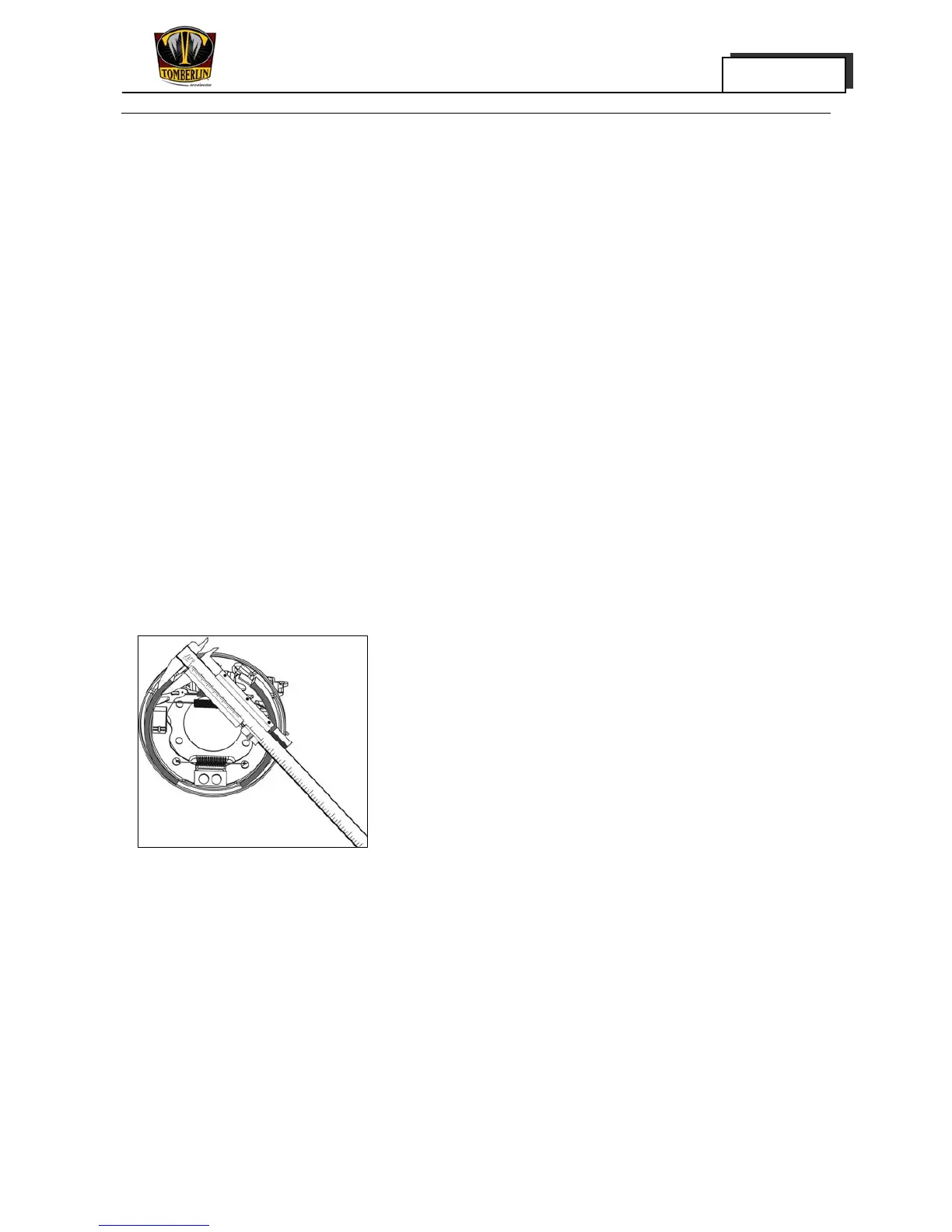

8. Measure the thickness of the shoe plate, and replace
the shoe plate that does not meet the specifications
or in case brake shoe block is too old.
Standard thickness:
7.0 mm (0.16in)
Maximum thickness wearing value:
1.75mm (0.07in)
