Driving Axle
EMERGE 6-3
Chapter 6

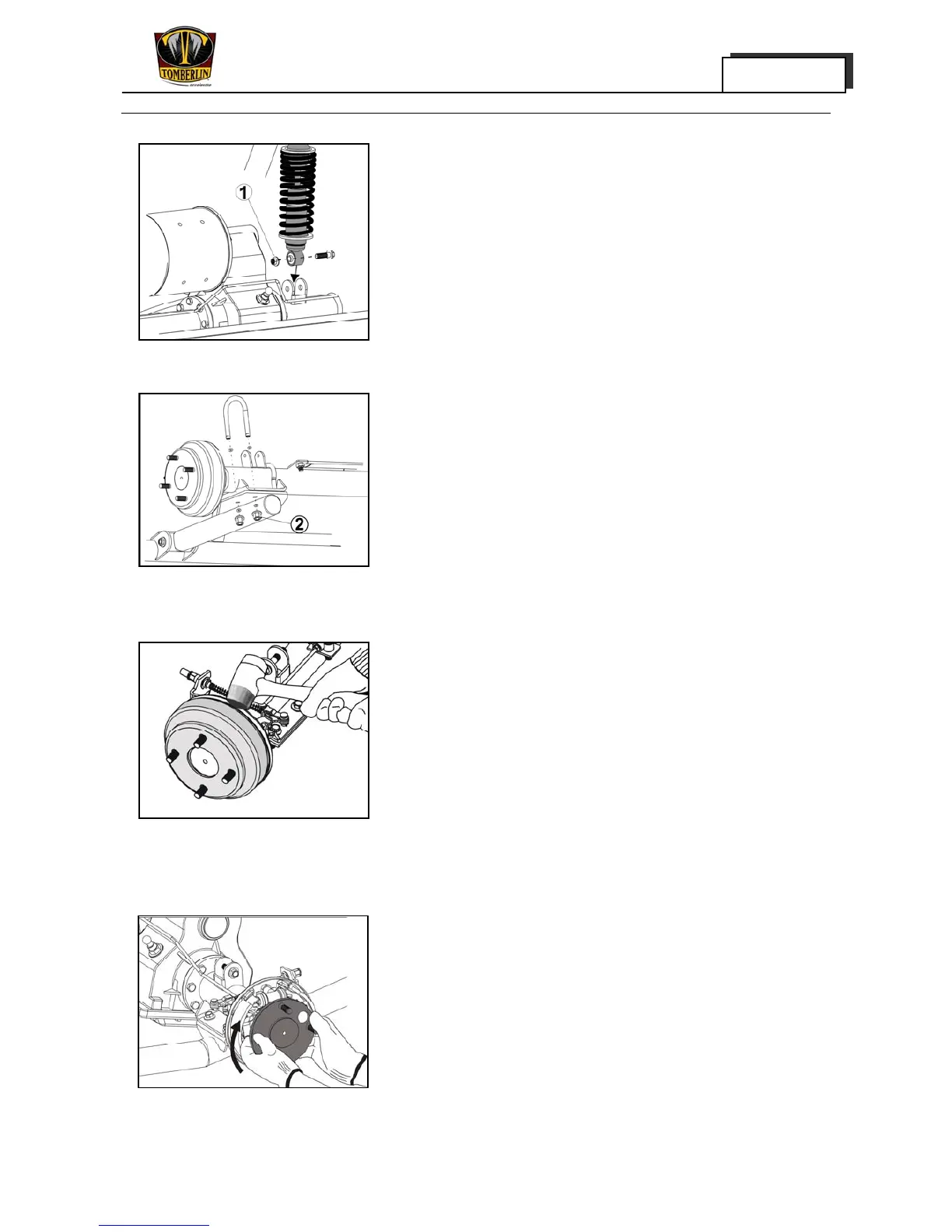

8. Remove:
· Lower fixing nut of rear shock absorber ①
Tightening torque
63N·m (46.5ft·1b)
· rear shock absorber
· Rear axle and rear swing arm fixing nut ②
Tightening torque
63N·m (46.5ft·1b)
· U-bolt
· Driving axle
9. Remove:
Brake hub
NOTICE:
In case the brake hub is difficult to remove,
knock out the hub with rubber hammer.
10. Inspect:
· Half axle operation
· Rotate the half axle connected plate with hand,
and in case of unsteady rotation or abrasion,
the half axle assembly is to be replaced.
