Driving Axle
EMERGE 6-4
Chapter 6

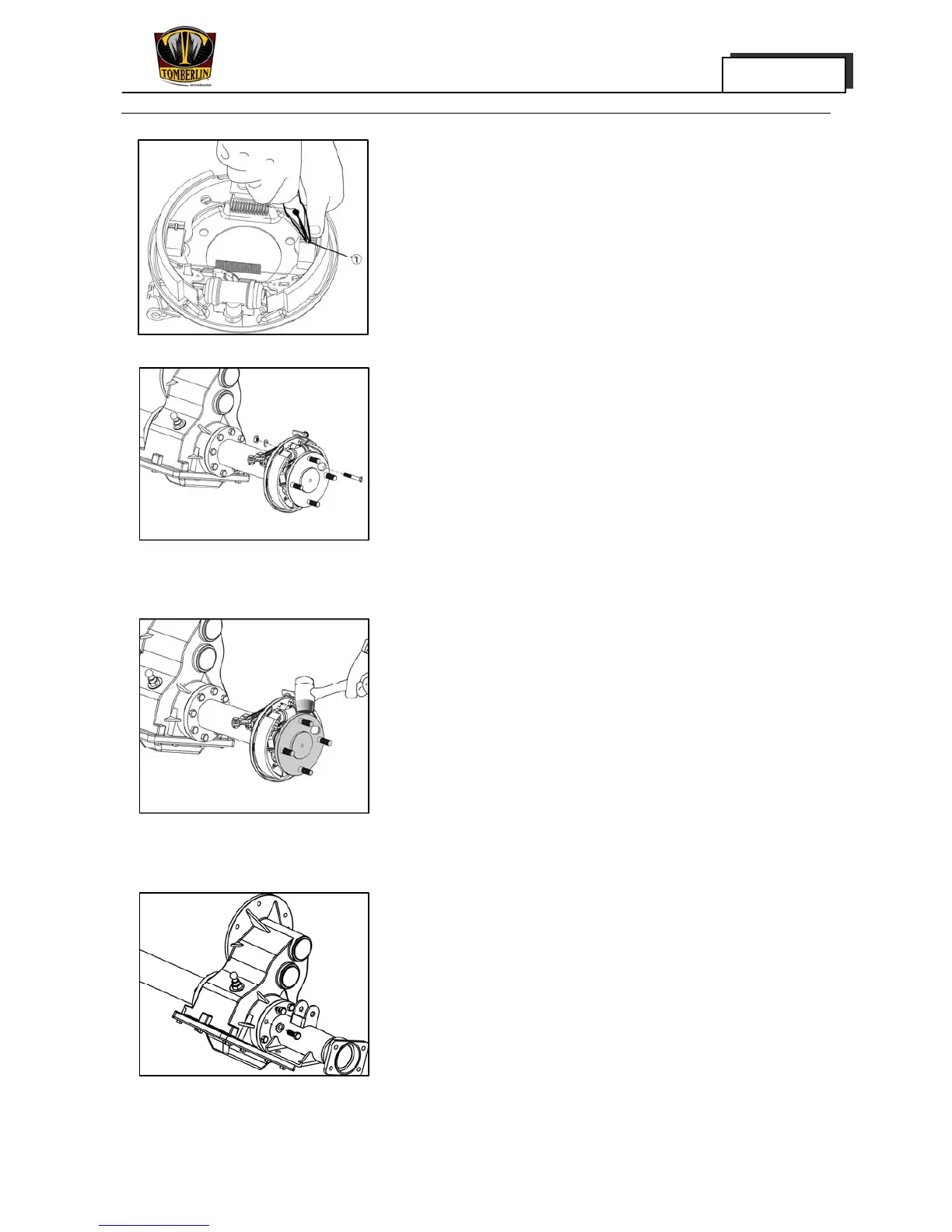

11. Remove
· Clipping spring
· Locating dowel ①
· Upper and lower brake retracting spring
· Brake shoe
Turn the locating dowel with spring or pincer
pliers to separate the clipping spring and
locating dowel of brake shoe.
12. Remove:
· Fixing bolt of half axle of rear axle
· Half axle assembly of rear axle
· Brake base plate
NOTICE:
Knock out the half axle wheel rim of the rear axle
lightly with a rubber hammer.
13. Remove:
· Fixing bolt of half axle outer tube
Tightening torque
55N·m (40.6 ft·1b)
· Half axle outer tube
