Figure 52

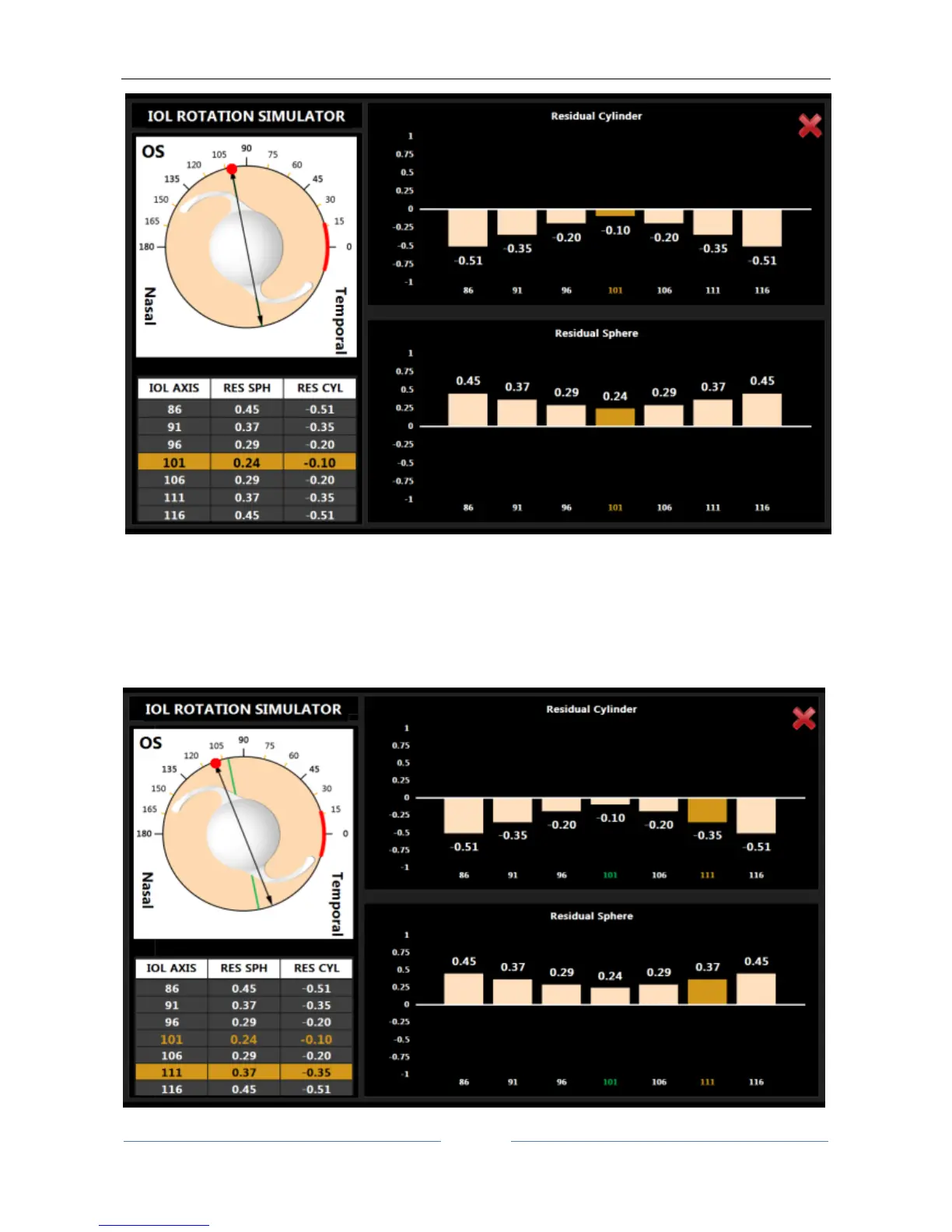

This simulation shows the impact of a wrong axis placement that can occur during surgery and how it affects
the residual sphere and cylinder refraction of the patient. The simulator starts at the correct axis placement
and displays in the left bottom table a series of misalignment angles close to the ideal one. Selecting a
different row you can see the new residual sphere and cylinder at the selected axis.
In Figure 53 is shown the selection of a ten degrees misalignment, with the new axis selected in orange and
the correct one in green.
