Topcon HiPer Lite - Connector Details

Connector Specifications
P/N 7010-0557 www.topconpositioning.com
B-11
Connector Specifications
The following sections list HiPer Lite and HiPer Lite+ connector
details.
Radio (Modem) RF Connector
The Spread Spectrum modem (TPS) connector type
(Table B-2) is a reverse-TNC female RF connector.
Power Connector

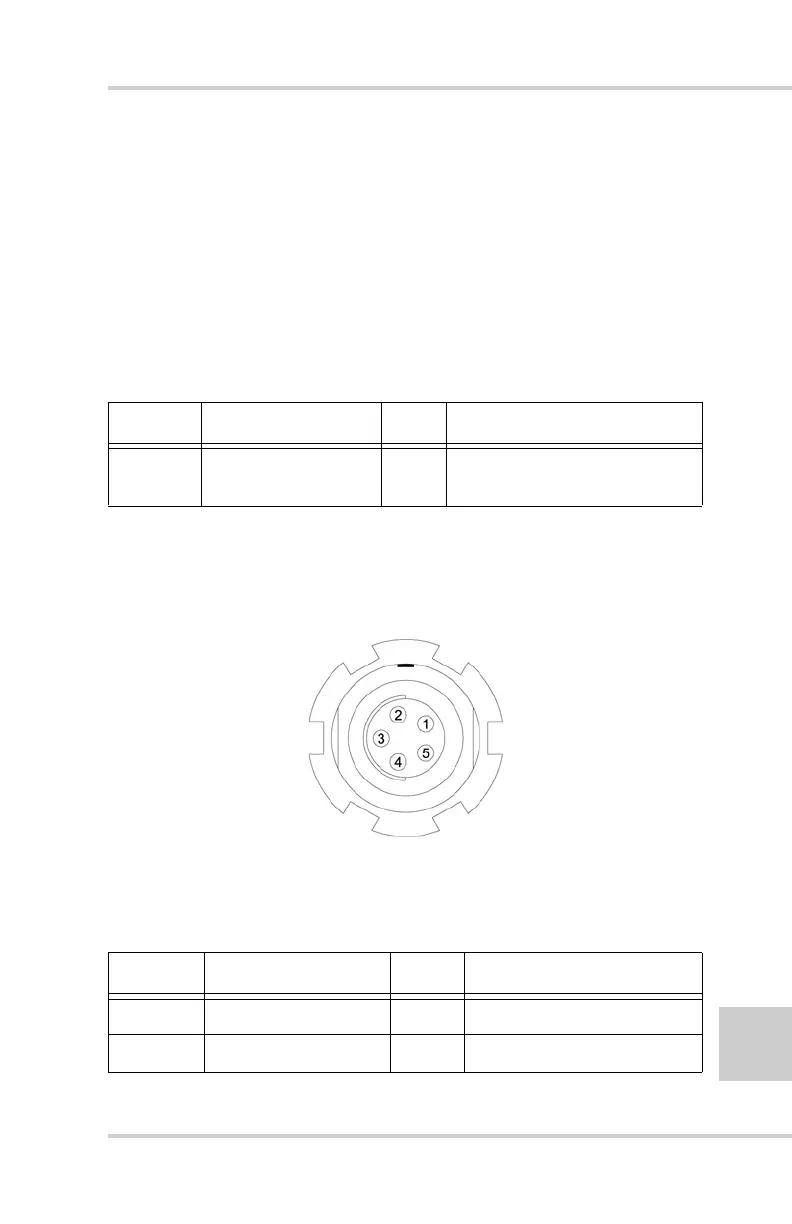

The power connector (Figure B-1) is a sealed receptacle, 5 pin,
ODU part number G80F1C-T05QF00-0000.
Figure B-1. Power Connector
Table B-3 gives power connector specifications.
Table B-2. Spread Spectrum Modem Connector Specifications
Type Signal Name Dir Details
Reverse-
TNC
Modem I/O I/O RF output from modem antenna
Table B-3. Power Connector Specifications
Number Signal Name Dir Details
1 Power_INP P 6 to 28 volts DC input
2 Power_INP P 6 to 28 volts DC input
