A single external 12 V, 2.3 A*h battery should run the receiver
for about 7 hours and the receiver and modem for 5 hours.

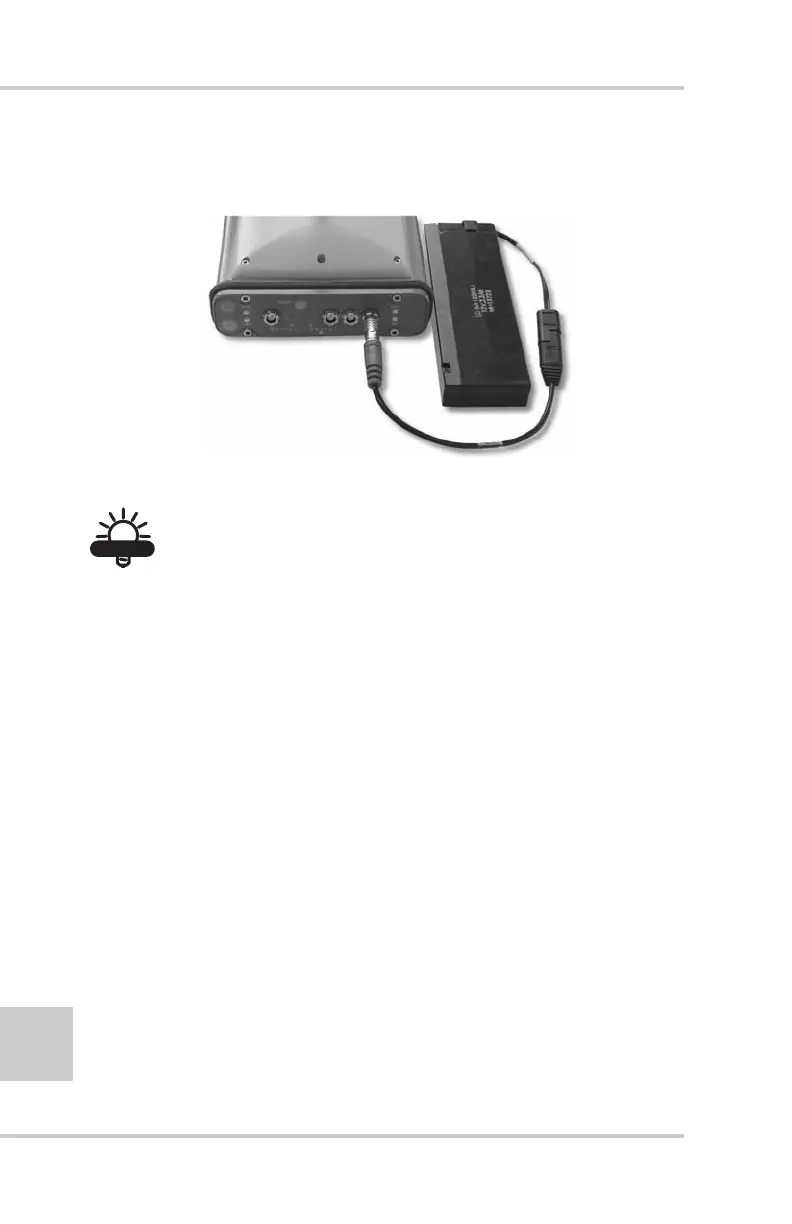

Figure 2-1. External Battery Attached to Receiver
TIP
TIP
You can also use an SAE-to-SAE extension cable and an
Alligator clip-to-SAE cable, and power the receiver from
a battery, such as the battery used to power your Base
radio or similar battery.
Battery Charger
The same charger used to charge the internal batteries can be
used as an external power supply for the receiver. The charger
is provided with the receiver package.
1. Connect the receiver-to-SAE cable to the receiver’s power
port.
2. Connect the SAE end of the cable to the battery charger.
3. Plug the battery charger’s power cable into the AC adapter.
4. Plug the power cable into an available, grounded outlet.
The power input for your battery charger should be AC
between 90 and 264 V 1A (110 V AC) and between 47 Hz
and 63 Hz. The battery charger outputs DC 12 V 2.5 A
(30 W).
