Topcon HiPer Lite User Manual

Specifications
Topcon HiPer Lite and HiPer Lite+ Operator’s Manual
B-12
Serial C-RS232 Connector
For ports A and D. The RS232 connectors (Figure B-2) are
sealed receptacle, 7 pin, ODU part number G80F1C-T07QC00-
0000.

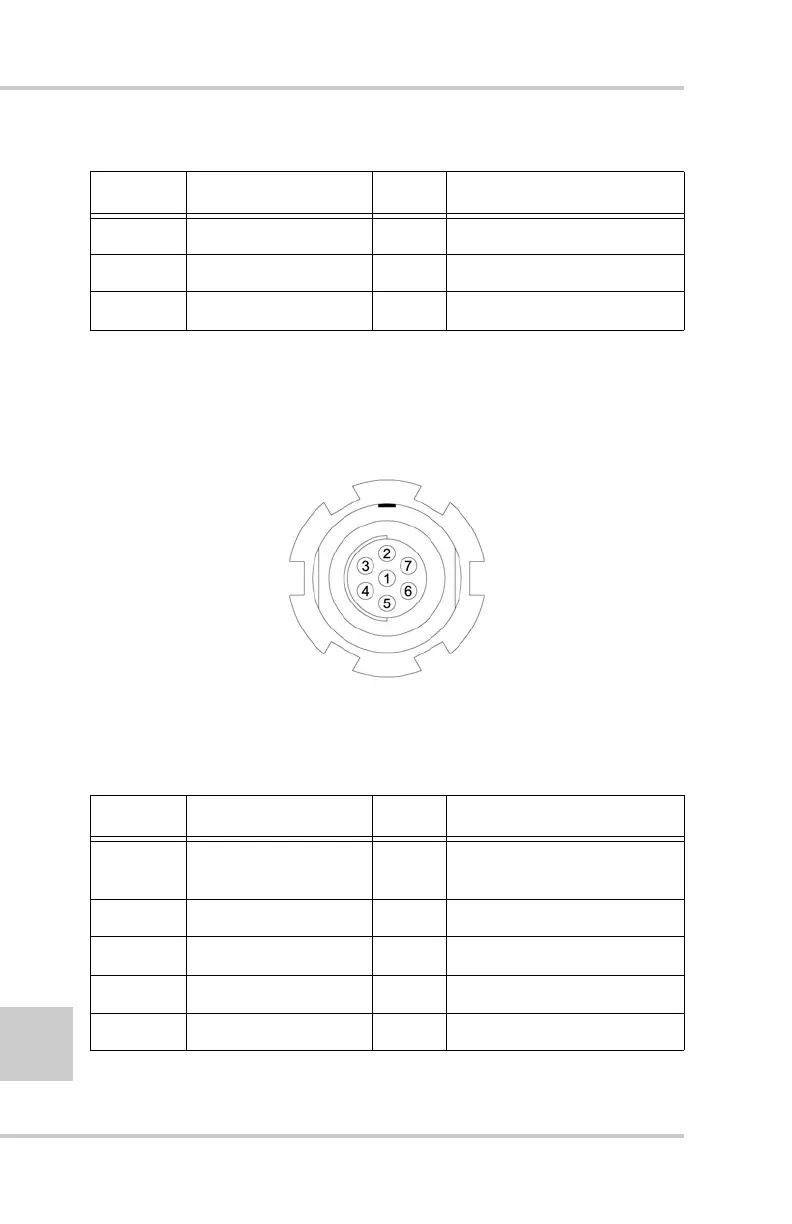

Figure B-2. RS232 Connector
Table B-4 gives the RS232 cable connector specifications.
3 Power_GND P Ground, power return
4 Power_GND P Ground, power return
5 Not used
Table B-4. RS232 Connector Specifications
Number Signal Name Dir Details
1 Power_OUT P Power Output
(Supplied Voltage)
2 GND - Signal ground
3 CTS I Clear to send
4 RTS O Request to send
5 RXD I Receive data
Table B-3. Power Connector Specifications (Continued)
Number Signal Name Dir Details

Topcon HiPer Lite Specifications

General

Brand	Topcon
Model	HiPer Lite
Category	GPS
Language	English
