Appendix A
P/N 7010-0557 www.topconpositioning.com
A-1
External Antenna
Setup
For machine control applications, the HiPer Lite+ receiver comes
configured with an external antenna port (Figure A-1).

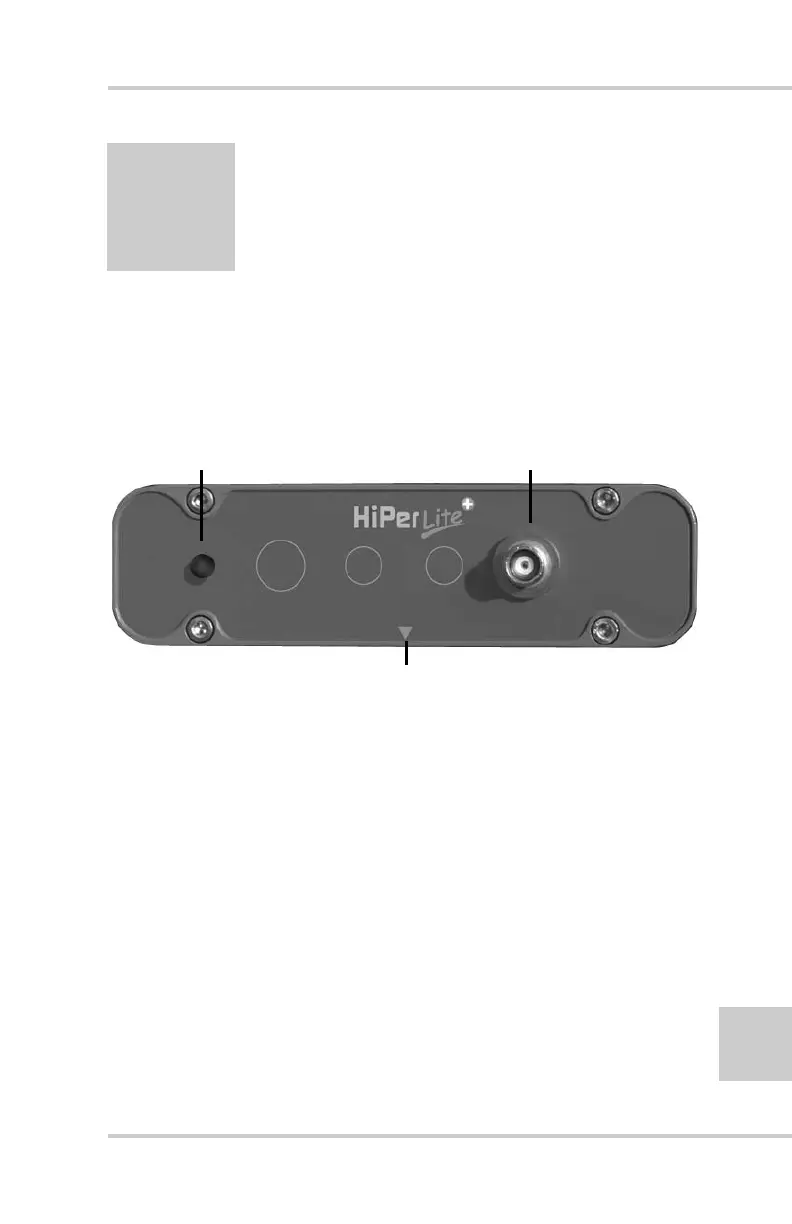

Figure A-1. HiPer Lite+ with External Antenna Connector
1. Attach the antenna to a tripod or bi-pod and center it over the
point at which data will be collected.
2. Measure the antenna height. Antennas have two types of
measurements:
• Vertical – measured from the marker to the antenna
reference point (ARP) located on the bottom of the antenna
at the base of the mounting threads.
• Slant – measured from the marker to the lower edge of the
antenna’s slant height measure mark (SHMM).
MC-A1 antenna offsets are shown in Figure A-2 on page A-2.
Offset measurements for this antenna is given in Table A-1 on
page A-2.
Vent Plug
External Antenna
Connector
Slant Height Measurement Mark
