Cables
Standard cables (Figure 1-2) include the following:
• Receiver-to-computer RS232 serial cable (p/n
14-008005-03) – used to connect the receiver’s serial port
and an external device (hand-held controller or computer)
• Receiver-to-SAE power cable (p/n 14-008016-03) – used to
connect the receiver’s power port and the power supply’s
SAE connector or the extension cable’s SAE connector
• SAE-to-SAE cable extension (p/n 14-008022-01) – used to
connect SAE connectors over longer distances
• Alligator clips-to-SAE cable (p/n 14-008025-01) – used to
connect any 12-volt DC power source and the Receiver-to-
SAE power cable
• Power supply-to-outlet cable (p/n 14-008052-01 for U.S. or
14-008054-01 for E.U.) – used to connect the power
charger to a power outlet
• USB cable (for HiPer Lite+ only) (p/n 14-008031-01) –
used to connect the receiver and an external device (hand-
held controller or computer) via the USB ports

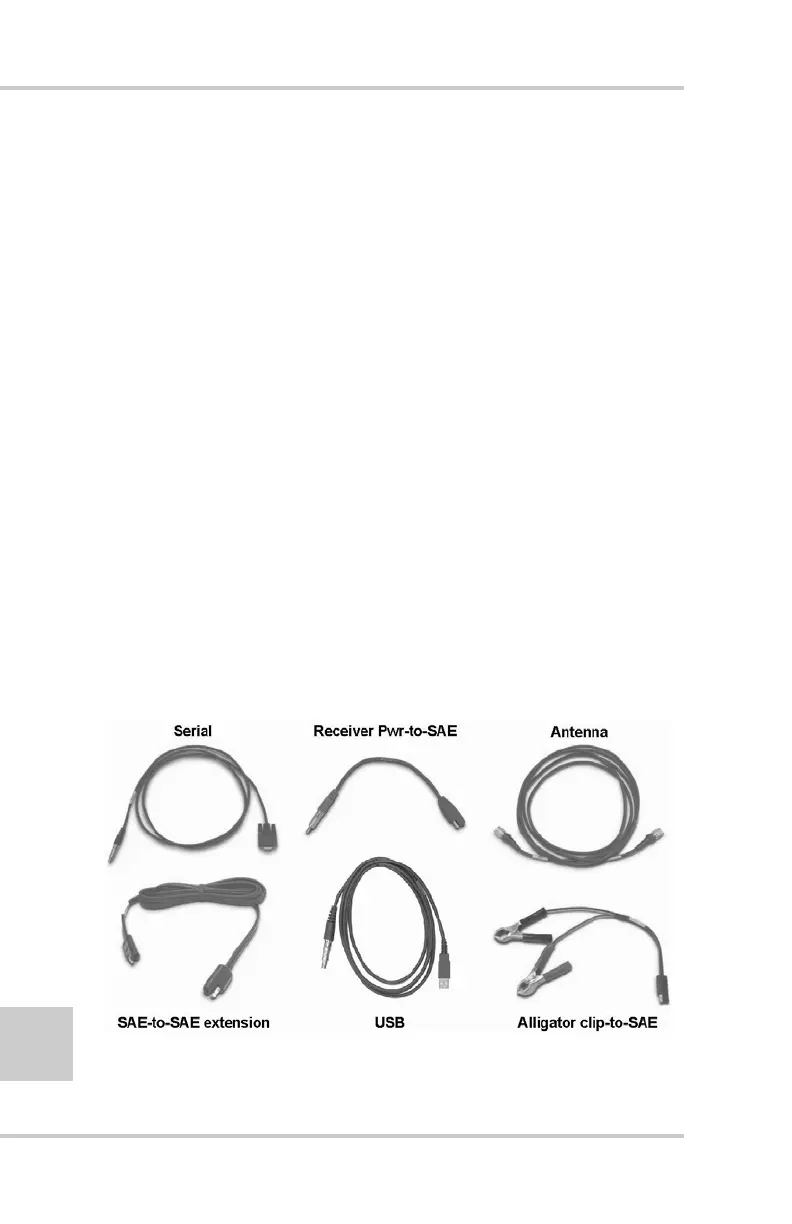

Figure 1-2. System Cables
