Front Panel
Figure 1-5 and Figure 1-6 on page 1-18 show front panel
components for the HiPer Lite and HiPer Lite+ receivers.

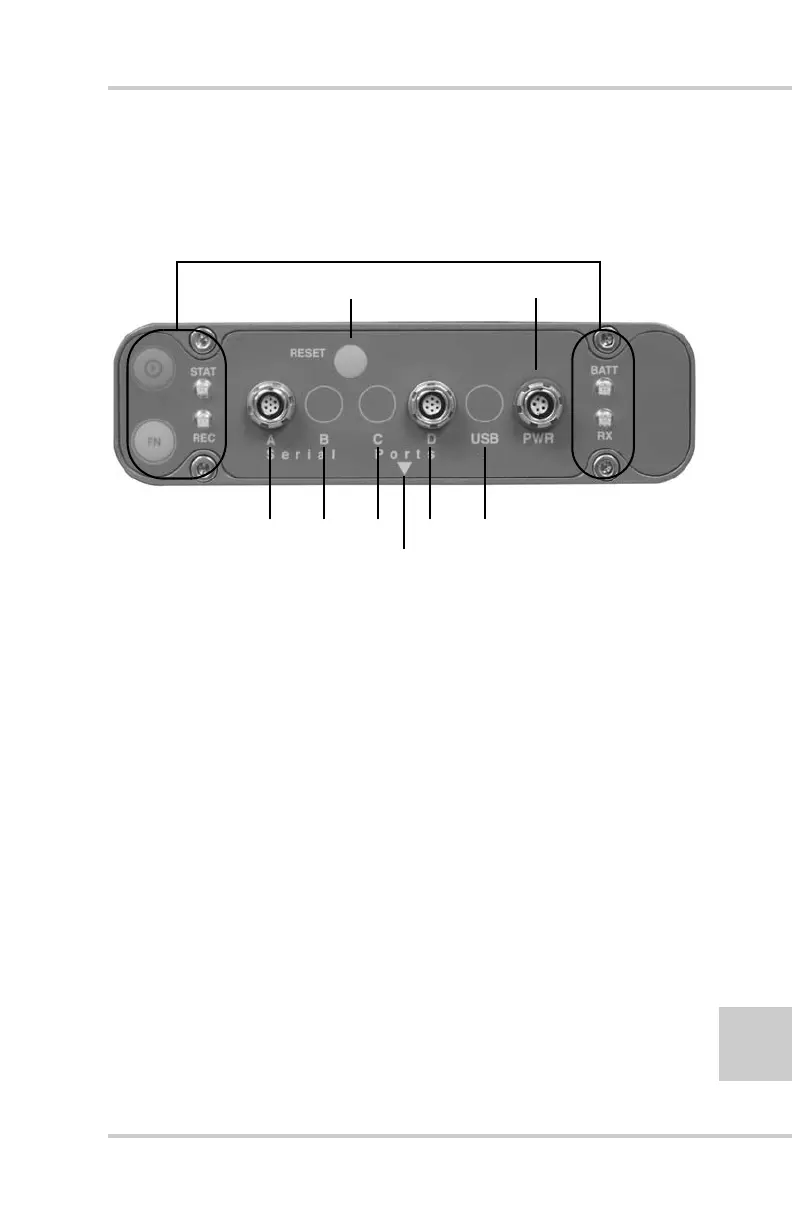

Figure 1-5. HiPer Lite Front Panel
• MINTER – The Minimum INTERface for the receiver.
The MINTER consists of three keys and four, three-
color LEDs. See “Using the MINTER” on page 4-2 for
descriptions and usages of the MINTER components.
• Reset – This key performs a hard reset for both the
receiver board and the power board. Once this key is
pressed, the controllers governing the receiver and
power boards reboot and the device restarts.
This key can be used to leave Zero Power Mode or if
the receiver does not respond to commands. See “Using
the MINTER” on page 4-2 for more information.
• Four serial ports:
–Port A used for communication between the receiver
and a controller or any other external device.
MINTER
Reset Power
ADCBUSB
Slant Height Measure Mark
