–Port B used internally to connect the receiver board
and Bluetooth module.
–Port C used internally to connect the modem and
receiver boards.
–Port D used for communication between the receiver
and an external device.
• USB – Only available on the HiPer Lite+ receiver; used
for high-speed data transfer and communication
between the receiver and an external device.

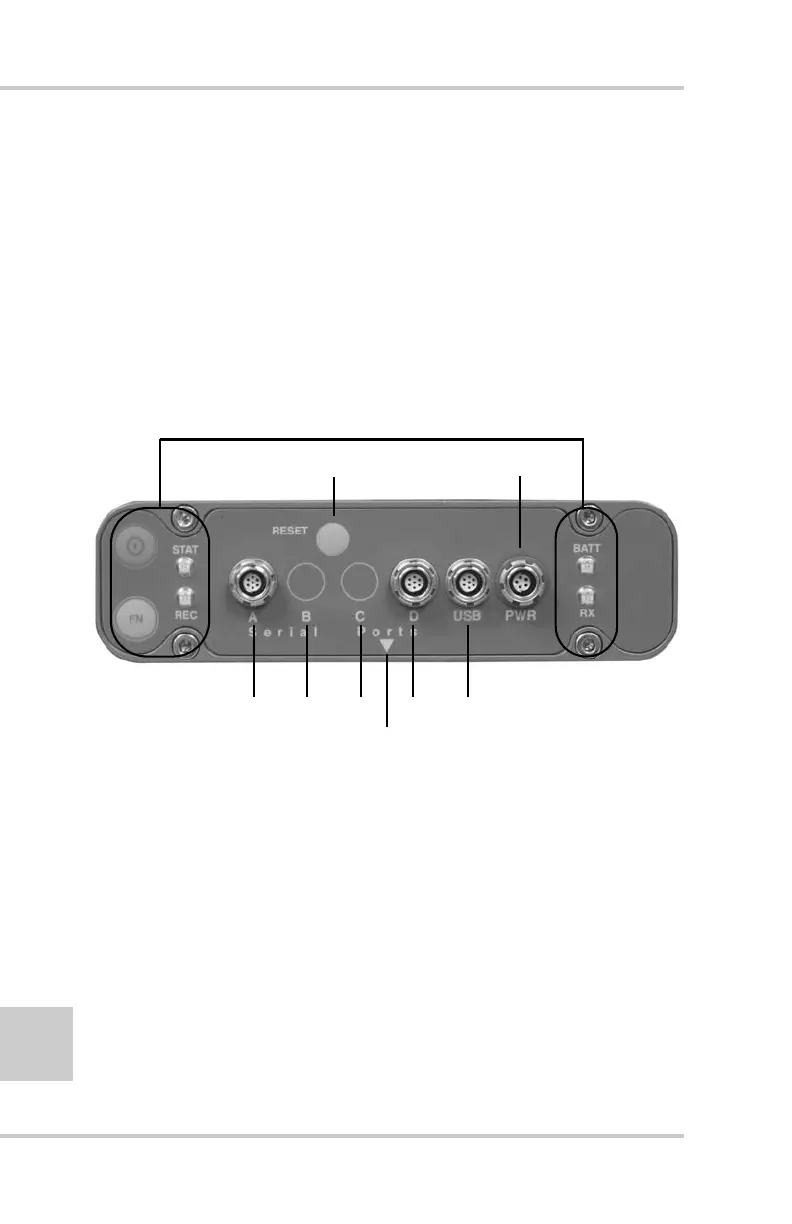

Figure 1-6. HiPer Lite+ Front Panel
• PWR – The power input port to which an external
power source (+6 to +28 V DC) is connected and where
the unit is charged.
• Slant height measure mark (SHMM)
MINTER
Reset Power
ADCBUSB
Slant Height Measure Mark
