Topcon HiPer Lite - Antenna Offset Specifications

External Antenna Setup
Topcon HiPer Lite and HiPer Lite+ Operator’s Manual
A-2

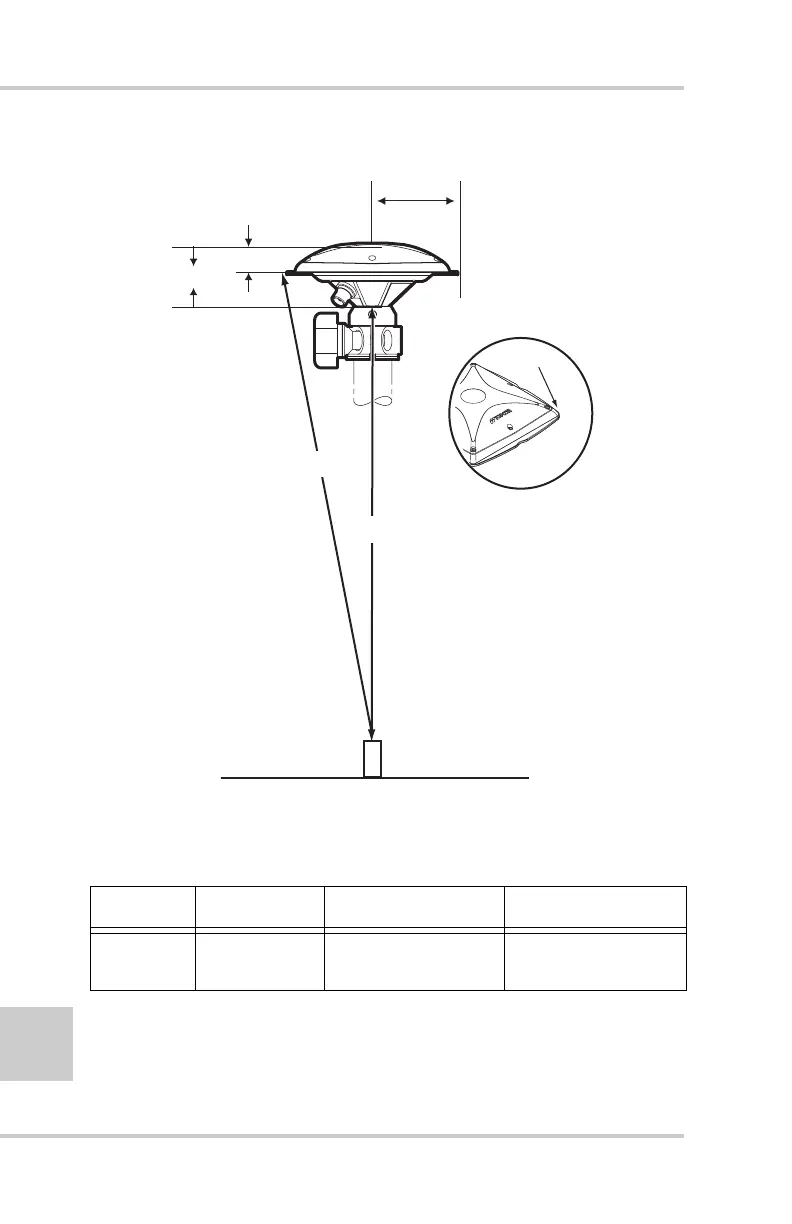

Figure A-2. MC-A1 Antenna Offset Measurements
3. Record the antenna height, point name, and start time in the
field notes.
Table A-1. Antenna Offset Measurements
Antenna Radius A, Vertical Offset C, Slant Offset
MC-A1 89.7mm 54.3mm (L1)
60.5mm (L2)
26.8mm (L1)
33.0mm (L2)
Phase Center
C
A
Cutting Edge
Radius
Measurement Point Point
SHMM
Slant Height
Vertical Height
