Adjustments
AdjustingtheParkingBrakeLinkage

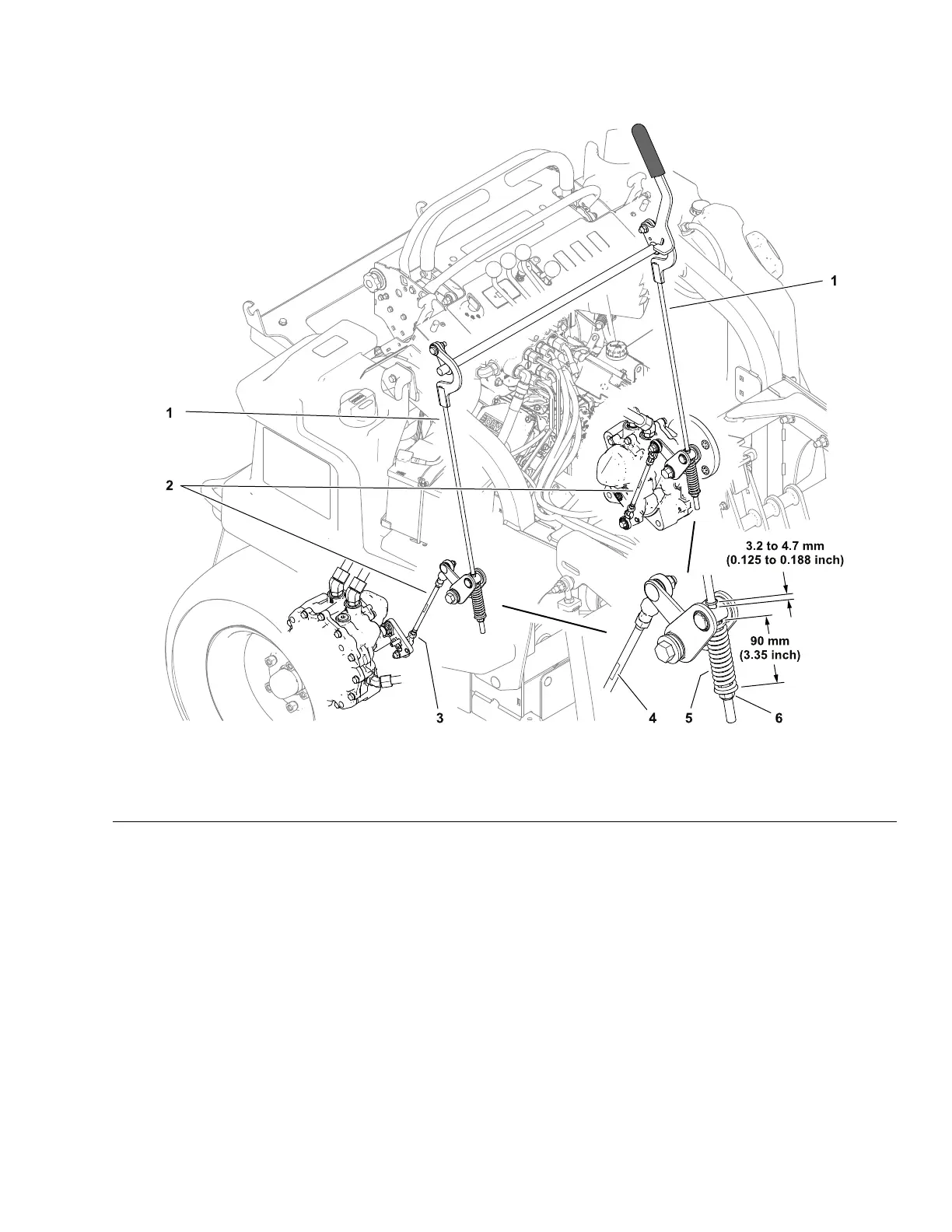

g406185
Figure79
1.Brakelink(2each)3.Lowerjamnut(lefthandthreads)5.Compressionspring
2.Turnbuckleassembly(2each)4.Flats(onturnbucklerod)
6.Flangenut
1.Parkthemachineonalevelsurface,setthekeyswitchtotheOFFposition
andremovethekeyfromtheswitch.
2.Engagetheparkingbrake.
3.Removethehoodtoaccesstheparkingbrakelinks.
4.Thedistancebetweentheshoulderonthebrakelinkandthetrunionpin
shouldbe3.2to4.7mm(0.125to0.188inch).Ifnecessary,adjustthe
distanceasfollows:
A.Loosentheangenutattheendofthebrakelinktorelaxthecompression
spring.
B.Loosentheupperandlowerjamnutsontheturnbuckleassembly.
Note:Thelowerjamnuthaslefthandthreads.
C.Usetheatsontheturnbucklerodtoturntherodineitherdirectionuntil
thedistancebetweentheshoulderonthebrakelinkandthetrunionpinis
correct.
