RemovingtheFuelTank
g397757

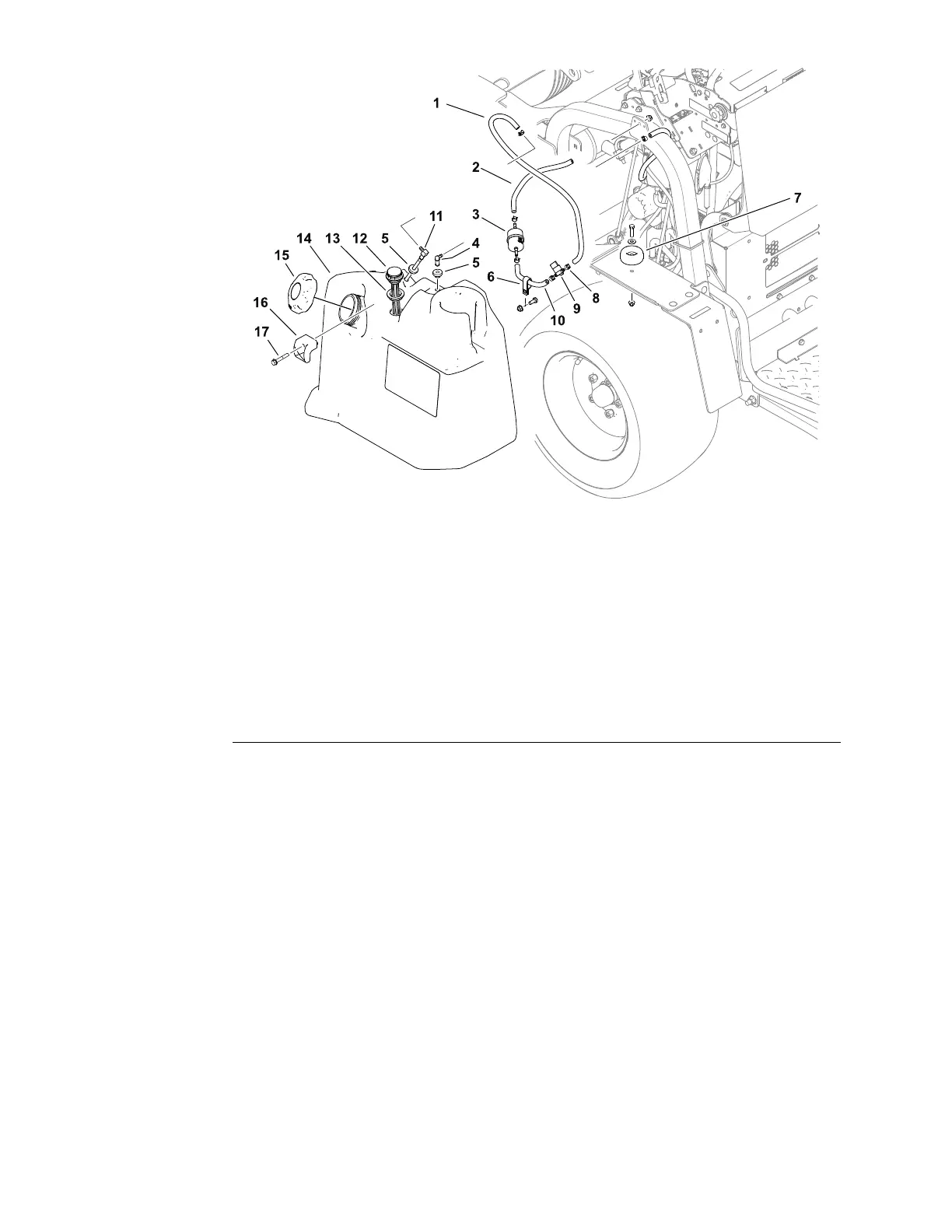

Figure10
1.Fuelhose–tanktoshutoffvalve10.Fuelhose–shutoffvalvetolter
2.Fuelhose–ltertofuelpump11.Supplytting
3.Fuellter
12.Fuelgauge
4.Venttting
13.Grommet
5.Grommet(2each)
14.Fueltank
6.R-clamp15.Fueltankcap
7.Mountingbumper
16.Clamp
8.Hoseclamp(6each)17.Capscrew
9.Shutoffvalve
1.Parkthemachineonalevelsurface,engagetheparkingbrake,setthekey
switchtotheOFFpositionandremovekeyfromtheswitch.
2.Removethehood.
3.Recordfuelhoseandevaporativecontrolsystemhoseandclamp
routing/locationforinstallationpurposes.
4.Closethefuelshutoffvalve.
Note:Coverorplugdisconnectedhosesandttingstopreventcontamination
fromenteringthefuelsystem.
5.Disconnectthefuelsupplyventhosesfromthetopofthefueltank.
6.Cleanupanyspilledfuel.
7.Removethefastenerandclampfromthetopofthefueltankandliftthe
fueltankassemblyfromthemachine.
8.Disassemblethefueltankasnecessary.
9.Checkthefuelsupply,venttting,andfuelgaugegrommetsforwearor
damageandreplaceifnecessary.
10.Checkthemountingbumperonthemachinefenderforwearordamageand
replaceifnecessary.
