Toshiba B-EV4 Series - On-line Mode Functions

- 7 -

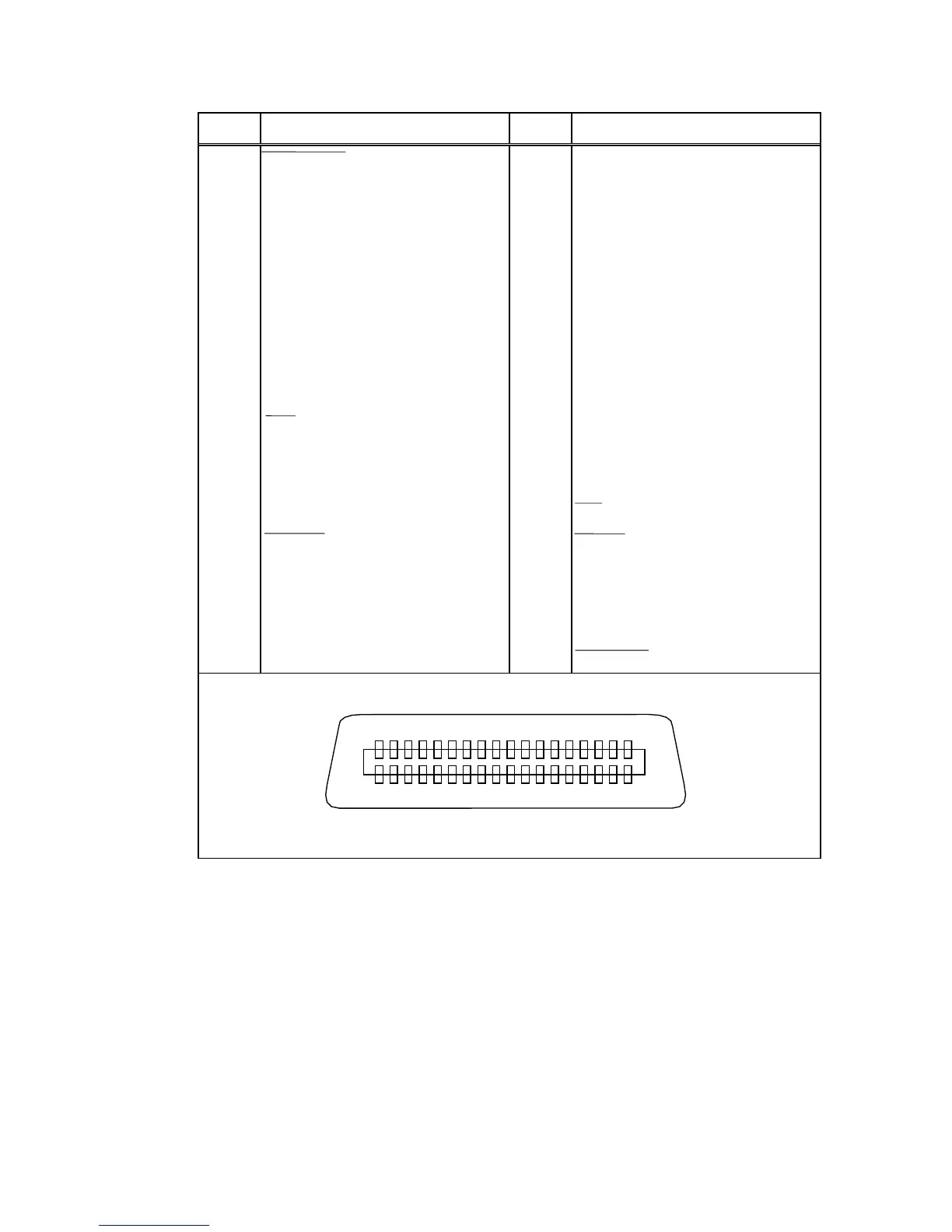

(8) Connector Pin Diagram:
Pin No. Signal Name Pin No. Signal Name
1 DATA • STB 19 TWISTED PAIR GND (PIN1)
2 DATA 1 20 TWISTED PAIR GND (PIN2)
3 DATA 2 21 TWISTED PAIR GND (PIN3)
4 DATA 3 22 TWISTED PAIR GND (PIN4)
5 DATA 4 23 TWISTED PAIR GND (PIN5)
6 DATA 5 24 TWISTED PAIR GND (PIN6)
7 DATA 6 25 TWISTED PAIR GND (PIN7)
8 DATA 7 26 TWISTED PAIR GND (PIN8)
9 DATA 8 27 TWISTED PAIR GND (PIN9)
10 ACK 28 TWISTED PAIR GND (PIN10)
11 BUSY 29 TWISTED PAIR GND (PIN11)
12 PE 30 TWISTED PAIR GND (PIN31)
13 SELECT 31 INIT (Not used)
14 AUTOFD (Not used) 32 FAULT
15 NC 33 0V
16 0V 34 NC
17 CHASSIS GND 35 NC
18 +5V 36 SELECTIN (Not used)
18 1
36
19
