Toshiba B-EV4 Series - Reflective Sensor; Transmissive Sensor (When Using Normal Labels)

- 120 -
d Reflective sensor:
Printing takes place according to the parameter designated by the Label Size
Set Command. However, the black mark provided on the back side of the tag
paper is automatically sensed by the reflective sensor and the paper position
is finely adjusted for every piece.
e Transmissive sensor (when using normal labels):
Printing takes place according to the parameter designated by the Label Size
Set Command. However, the label-to-label gap is automatically sensed by
the transmissive sensor and the paper position is finely adjusted for every
piece.

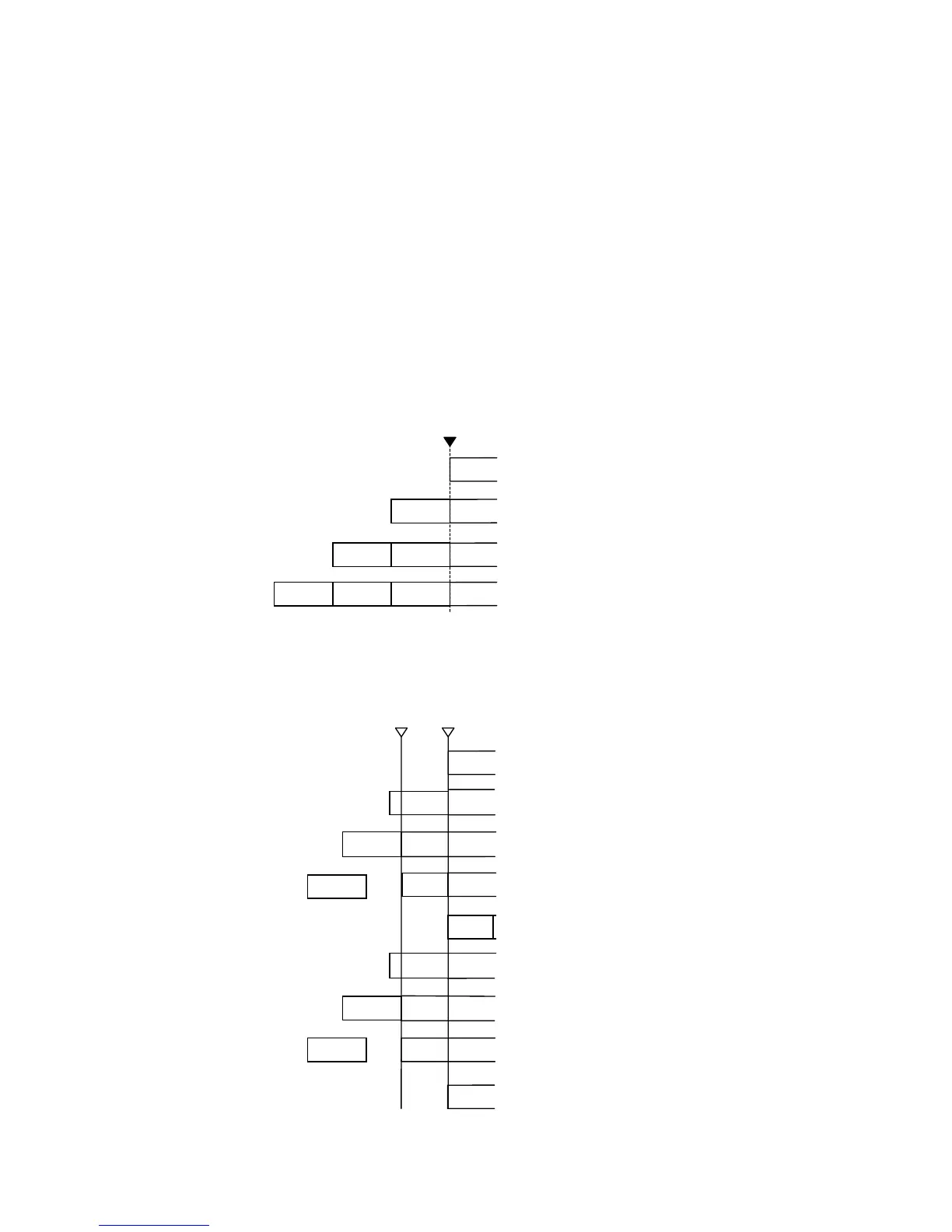

(4) Issue mode
[C: Batch mode (cut interval 0)]
[C: Batch mode (Cut interval: 1, Issue count: 2)]
“Without automatic forward feed standby” selected in the system mode
Head position
A
A
B
A
B C
(1) Idling
(
durin
g
automatic forward feed standb
y)
(2) Prints 1st label (A)
(3) Prints 2nd label (B)
(4) Prints 3rd label (C)
(1) Idling
A
A
A
Head positionCut position
(2) End of printing 1st label (A)
(3) Feeds to the cut position
(4) The 1st label (A) reaches the cut position
and is cut.
B
(6) End of printing 2nd label (B)
(7) Feeds to the cut position
(8) The 2nd label (B) reaches the cut position
and is cut.
B
B
(9) Feeds back to the home position
(5) Feeds back to the head position and start to
p
rint the 2
nd
label
(
B
)
.
B
