- 86 -
(9) Numerals under bars
Numerals are not or provided under bars according the parameter for the
presence or absence of numerals under bars. The contents of numerals under
bars to be printed vary according to the type of bar code. The character set of
numerals under bars is OCR-B. Such numerals are enlarged or reduced only
horizontally according to the width of the bar code. They are drawn vertically in
the fixed one magnification.

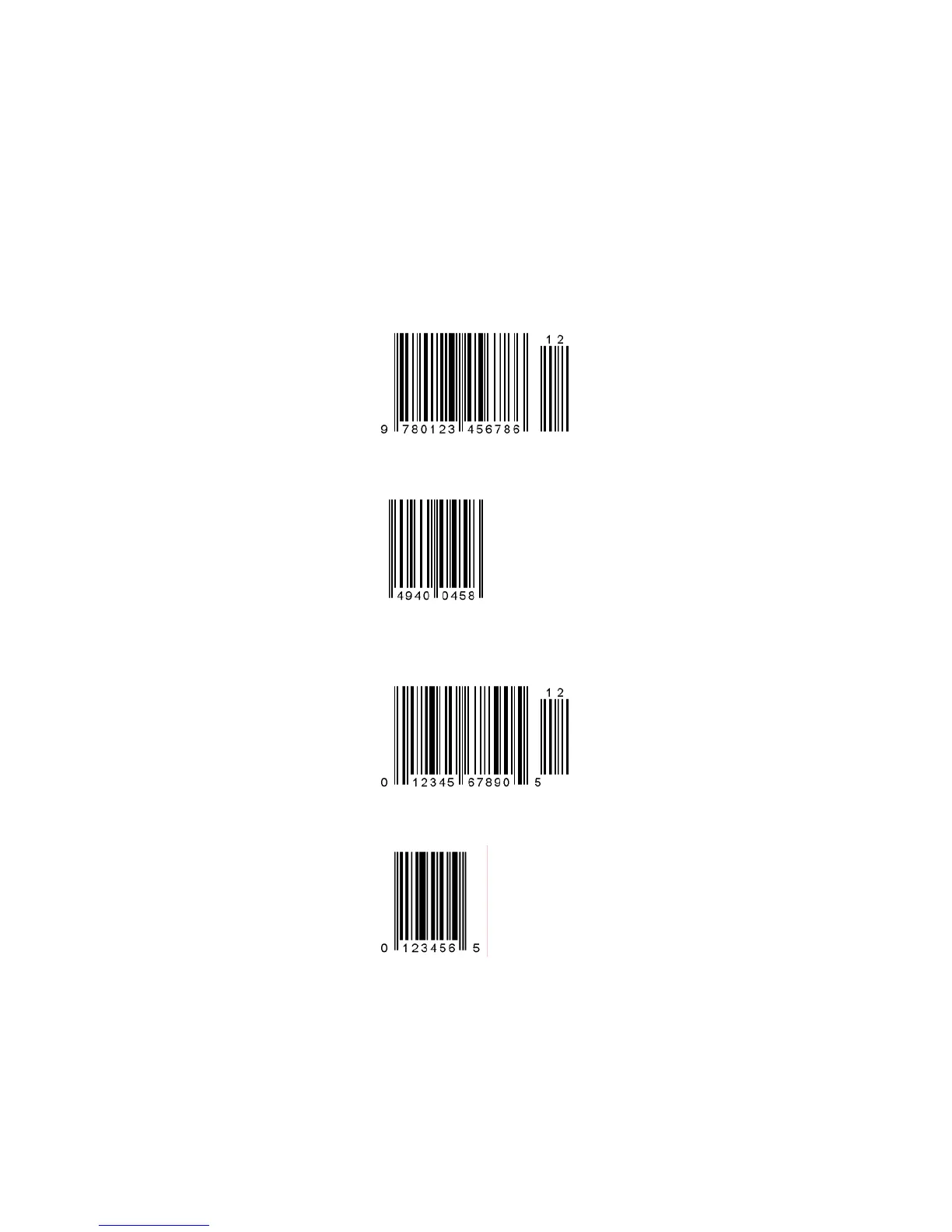

[Drawing positions of numerals under bars]
c In the case of JAN and EAN
(Example) EAN13 + 2 digits
(Example) EAN8
d In the case of UPC
(Example) UPC-A + 2 digits
(Example) UPC-E
