Toshiba B-EV4 Series - Strip Position Fine Adjustment; Back Feed Fine Adjustment; To Finely Adjust the Back Feed for Shifting Backward or Forward

- 26 -
[Strip Position Fine Adjustment]
Printing in strip issue mode is stopped at the position where the
distance from the middle point of the label-to-label gap to the
end of the strip shaft is 3 mm, since the label-to-label gap is
assumed to be 2 mm.
When the print stop position is not proper, the print stop position
should be adjusted using the strip position fine adjust function.
When the label-to-label gap is 5 mm or more, the effective print
length should be set to the maximum (label pitch -2 mm). Then,
the print stop position should be adjusted using the strip
position fine adjust function.

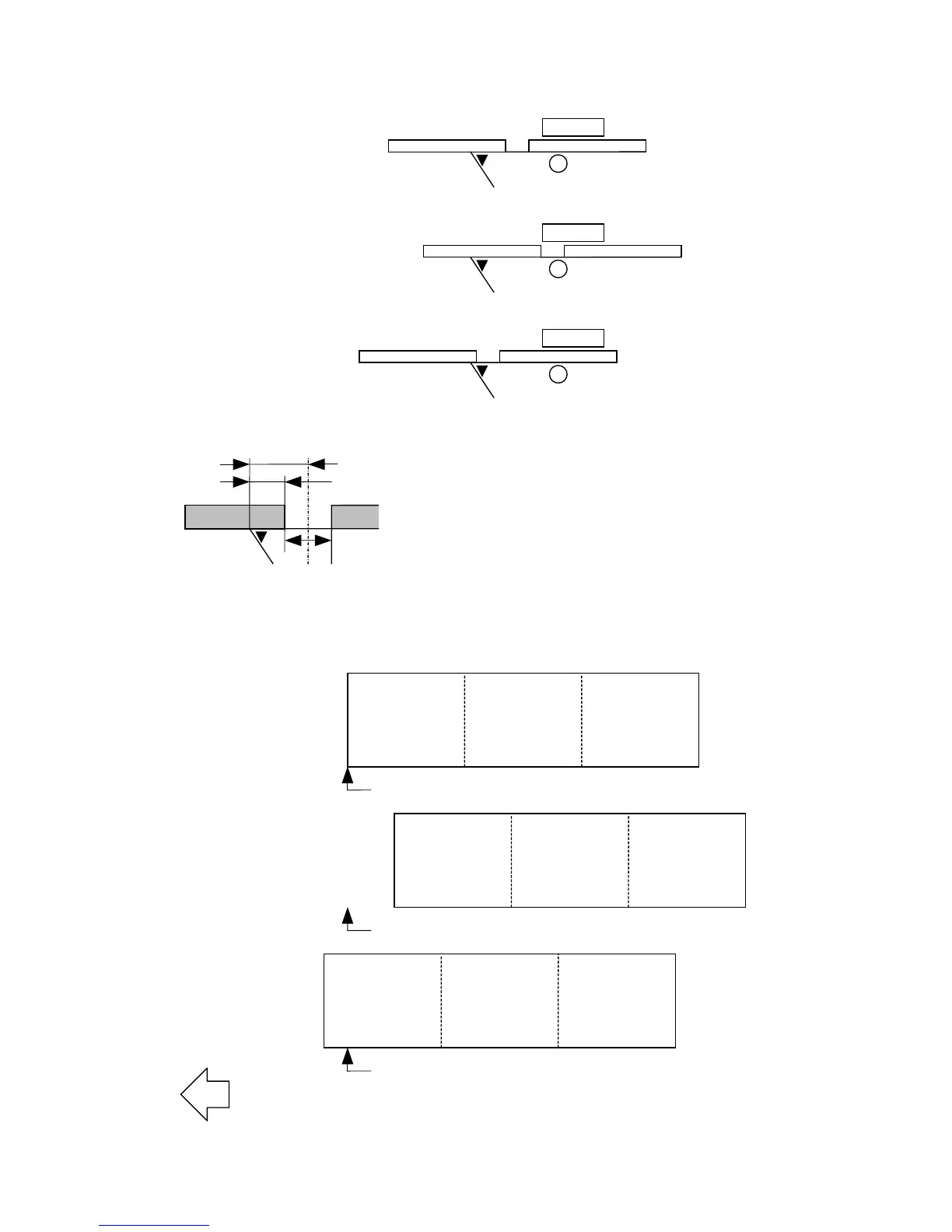

[Back Feed Fine Adjustment] (To finely adjust the back feed for shifting backward or forward)
0.0 mm
+3.0 mm
First print position (home position after back feed)
First print position (home position after back feed)
First print position (home position after back feed)
- 3.0 mm
Paper feed direction
2 mm
2 mm
3 mm
0.0 mm
+3.0 mm
-3.0 mm
